Written by Jim Hopper, Wine Cooling Expert · Updated August 2026
What Is the Quietest Wine Cellar Cooling System, and How Many Decibels Does It Run At?
The quietest wine cellar cooling systems are the ones with no compressor in the room: ducted, ducted split and ductless split units. Among self-contained units that publish a number, the Wine Guardian TTW01B Defender is the quietest at 47.9 dB measured 6 feet away. Decibel figures only exist for self-contained through-the-wall units, because they are the only configuration that sits inside the wine room. Ducted and split systems carry no single published rating, and that absence is itself the answer: the machinery is somewhere else.
Below: how noise ratings are measured, every published Wine Guardian decibel figure in one table, where the noise comes from, how each configuration ranks in the cellar and next door, what a remote condenser costs, vibration isolation, duct noise, and how to quiet a finished cellar.
Wine cooling noise is two questions: how loud the unit is, and where it sits. Wine Guardian publishes decibel figures only for its through-the-wall line, running from 47.9 dB at 6 feet on the TTW01B Defender to 59.3 dB on the TTW04B Classic, a spread of 11.4 dB across nine models. Ducted, ducted split and ductless split systems carry no single published rating because the compressor installs outside the wine room. Vibration isolation, flexible ductwork and grille sizing decide what you actually hear once the unit is in.
The published noise picture in five lines
- Quietest published figure: 47.9 dB at 6 feet, Wine Guardian TTW01B Defender, the quietest unit in the through-the-wall line
- Full published range: 47.9 dB to 59.3 dB at 6 feet across nine through-the-wall models
- No published decibel rating: ducted, ducted split, ductless split and water-cooled units, because the compressor is not in the cellar
- What lowers the number: sound reduction foam on Sentinel models, plus the Ultra Quiet Package grille dampening on Defender models
- What you feel, not hear: internal components mounted on rubber-in-shear isolators to reduce vibration transmitted into the structure
How Are Wine Cellar Cooling Systems Rated for Noise, and What Does dB at 6 Feet Mean?
A wine cooling unit noise rating is a sound pressure level in decibels measured at a stated distance, usually 6 feet, in a test setting. Wine Guardian publishes its through-the-wall figures this way, for example 49.5 dB at 6 feet for the TTW01B Sentinel. Without the distance, a decibel number means nothing.
Two properties of the scale matter. It is logarithmic, so a 10 dB rise is roughly a doubling of perceived loudness and a 3 dB gap is close to the smallest difference most people notice in a quiet room. Ratings are also usually A-weighted, written dBA, which discounts the very low frequencies the ear is less sensitive to. That is why two units can measure the same and one still feels heavier through a wall: low-frequency compressor rumble travels through structure but is partly discounted in the number.
For a scale you can hold in your head, the Centers for Disease Control and Prevention places normal conversation around 60 to 70 dBA and treats sustained sound at or below 70 dBA as generally safe for hearing (CDC NIOSH, about noise and hearing loss). Every unit in this guide sits below that, so cellar noise is a comfort question rather than a hearing safety one. The useful comparison is against the quiet of the room next door.
Three numbers a noise rating does not tell you
- Where you will be standing. A figure at 6 feet describes the cellar, not the dining room on the other side of the wall or the bedroom above it.
- How the room behaves. Hard stone, glass and tile reflect sound; a full rack of bottles and a solid door absorb and block it. The same unit reads differently in a bare closet and a finished cellar.
- Structure-borne vibration. Decibel ratings measure airborne sound. Vibration passed into a stud wall or a floor joist is a separate problem with a separate fix.
Only compare figures measured the same way
Two manufacturers' figures are only comparable if both state a distance and an operating condition. Where no distance is given, treat the number as marketing rather than data. For how noise sits alongside capacity, price and install complexity in a full shortlist, start from the cluster pillar, Best Wine Cellar Cooling Units.
Which Wine Guardian Models Publish a Decibel Rating, and What Are the Numbers?
Wine Guardian publishes a decibel figure for every through-the-wall model and for no other configuration. Nine self-contained units carry a rating measured at 6 feet, from 47.9 dB on the TTW01B Defender to 59.3 dB on the TTW04B Classic. Within a capacity class, the quieter model is the one with more sound treatment.
Published Wine Guardian through-the-wall noise levels, quietest first
| Model | Published noise at 6 ft | Nominal capacity | Sound treatment | Capacity class | Starting at |
|---|---|---|---|---|---|
| TTW01B Defender | 47.9 dB | 1,440 BTU/h at 75°F | Sound reduction foam plus Ultra Quiet Package | Small | $5,099 |
| TTW01B Sentinel | 49.5 dB | 1,440 BTU/h at 75°F | Sound reduction foam | Small | $4,069 |
| TTW01B Classic | 51.9 dB | 1,440 BTU/h at 75°F | None; value-focused build | Small | $3,039 |
| TTW02B Defender | 54.0 dB | 2,650 BTU/h at 75°F | Sound reduction foam plus Ultra Quiet Package | Mid | $6,129 |
| TTW02B Sentinel | 56.7 dB | 2,650 BTU/h at 75°F | Sound reduction foam | Mid | $5,099 |
| TTW04B Defender | 56.9 dB | 3,760 BTU/h at 75°F | Sound reduction foam plus Ultra Quiet Package | Large | $7,159 |
| TTW04B Sentinel | 57.9 dB | 3,760 BTU/h at 75°F | Sound reduction foam | Large | $6,129 |
| TTW02B Classic | 58.0 dB | 2,650 BTU/h at 75°F | None; value-focused build | Mid | $4,069 |
| TTW04B Classic | 59.3 dB | 3,760 BTU/h at 75°F | None; value-focused build | Large | $5,099 |
Noise levels, capacities and sound treatment per Wine Guardian published specifications, 2026. Starting prices are Wine Guardian Dealer prices, August 2026. Figures are measured at 6 feet under manufacturer test conditions and will differ in a finished room.
Two patterns are worth carrying into a decision. Noise climbs with capacity: the smallest units are 6 to 8 dB quieter than the largest in the same series, because a bigger compressor and bigger fans move more air. And series matters as much as capacity: the TTW01B Defender is 4 dB quieter than the TTW01B Classic, because the Ultra Quiet Package adds grille dampening on top of the internal sound reduction foam the Sentinel and Defender share.
Older units and figures we cannot verify
The TTW009 and TTW018 are replaced in the current line by the TTW01B and TTW02B units above, and we do not restate noise figures for discontinued models. If you are comparing a quote against an older unit, or a model name that does not appear in the table, ask for the published specification sheet rather than a remembered number and have a licensed HVAC professional confirm it.
Where Does Wine Cooling System Noise Actually Come From?
Four components make the sound: the compressor, the condenser fan, the evaporator fan, and vibration passed from the unit into the building. The compressor and condenser fan produce most of it, and both can be moved out of the cellar. The evaporator fan and the airflow it creates stay wherever the cool air is delivered.
The four sources, ranked by how much they matter
- Compressor. The loudest single component and the lowest in pitch. Low-frequency sound passes through walls more easily than high-frequency sound, which is why a compressor in the cellar can be audible in the room beyond even when the cellar door is shut.
- Condenser fan. A steady broadband whoosh that rises when the condenser is fighting a hot ambient or a restricted airflow path. It is the usual reason a unit gets louder over a season, because the coil is dirty or clearances were reduced.
- Evaporator fan. The quietest of the three, but the one that runs closest to the bottles and can never leave the airflow path. On a split or ducted system it is the only fan on the cellar side.
- Structure-borne vibration. Not sound at first. The compressor shakes the chassis, the chassis shakes the wall sleeve or the mounting frame, and the wall re-radiates it as a hum. Isolators and a decoupled mounting stop it at the source.
Same unit, two very different rooms
A cellar with a stone floor, a glass door and bare walls reads several decibels higher than a carpeted, fully racked room with a solid insulated door, because hard surfaces reflect rather than absorb. Full wine racks are genuinely useful acoustic mass, and a sealed insulated door cuts what the room next door hears.

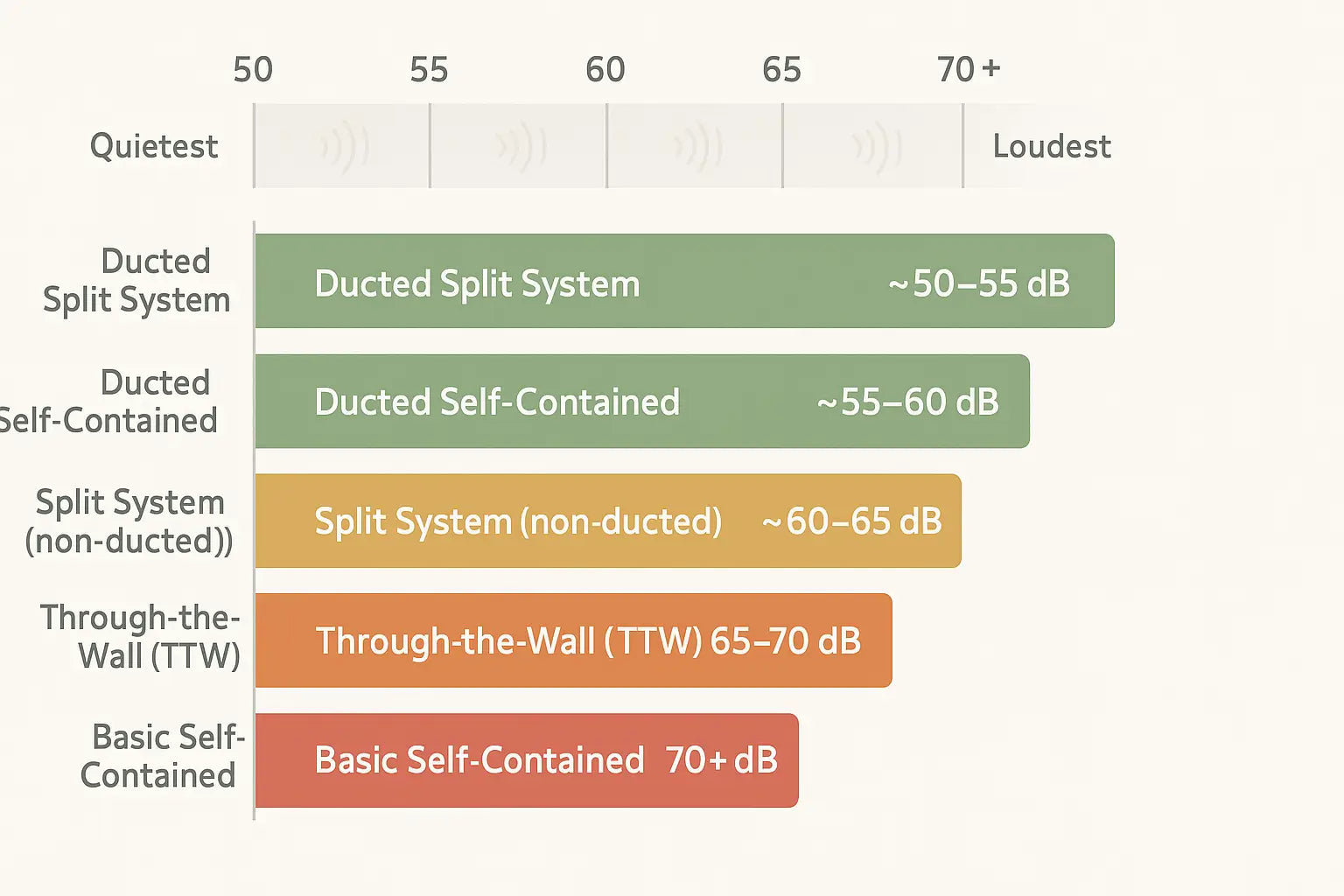

Which Configuration Is Quietest Inside the Cellar and in the Room Next Door?
Ranked on noise alone, ducted and ducted split systems are quietest in the cellar because no machinery is in the room at all. Ductless splits come next, with a fan-coil but no compressor inside. Self-contained through-the-wall units are the loudest in the cellar, and they also push noise and heat into the adjoining room they exhaust into.
Wine cooling configurations compared on noise, in the cellar and next door
| Configuration | What sits in the cellar | Perceived noise in the cellar | Noise in the adjacent room | Published dB figure |
|---|---|---|---|---|
| Ducted self-contained (D series) | Supply and return grilles only | Lowest: airflow at the grille, no machinery | Depends entirely on where the unit is placed; a mechanical room absorbs it | None published; placement governs |
| Ducted split (DS series) | Supply and return grilles only | Lowest: fan-coil is outside the room and ducted in | Lowest available: condenser can go outdoors, fan-coil in a remote space | None published; placement governs |
| Ductless split (SS and CS series) | Low-noise fan-coil, no compressor | Low: fan noise only, no compressor cycling | Low in the house; the condenser noise moves outdoors or to a plant space | None published; no compressor in the room |
| Water-cooled ducted | Supply and return grilles only | Lowest: same placement as ducted, plus no condenser airflow to find a path for | Lowest where there is no outdoor condenser location at all | None published; heat leaves through a water loop |
| Through-the-wall self-contained | The whole unit, compressor included | Highest of the configurations, and the only one with a published number | Audible: the exhaust side vents into the adjoining space | 47.9 dB to 59.3 dB at 6 ft across nine models |
Configuration behavior and the absence of published ratings per Wine Guardian published specifications, 2026. Perceived-noise rankings are editorial and describe the configuration, not any specific installation.
This table ranks configurations on noise and nothing else. Cost, install complexity, service access and capacity all move the decision, often away from the quietest option. For the full head-to-head on those factors, see Self-Contained vs Split Wine Cellar Cooling Systems and Split System vs Through-the-Wall Wine Cellar Cooling Units.
The three-zone noise check
Before you compare models, decide which of three zones has to stay quiet. Most disappointed owners optimized the wrong one. Name the zone, let it choose the configuration, then compare decibel figures inside that configuration.
1. Inside the cellar
Matters if you taste, dine, or spend time in the room. This is the zone the published 6 foot figures describe. If it is the priority, a ducted or split system removes the machinery entirely, and a through-the-wall unit is a compromise you accept for the price.
Ducted units →2. The adjoining room
Matters most for a through-the-wall unit, because the exhaust side vents into it. A garage, utility room or unfinished basement absorbs it well; a bedroom wall, home office or open-plan living space does not, and usually argues for a split.
Through-the-wall guide →3. Outdoors or the plant space
Where a split system sends the condenser. Check the distance to a neighbor's window, any local ordinance on outdoor equipment, and whether the condenser location is reachable for service. Moving noise outdoors is only a win if it is welcome there.

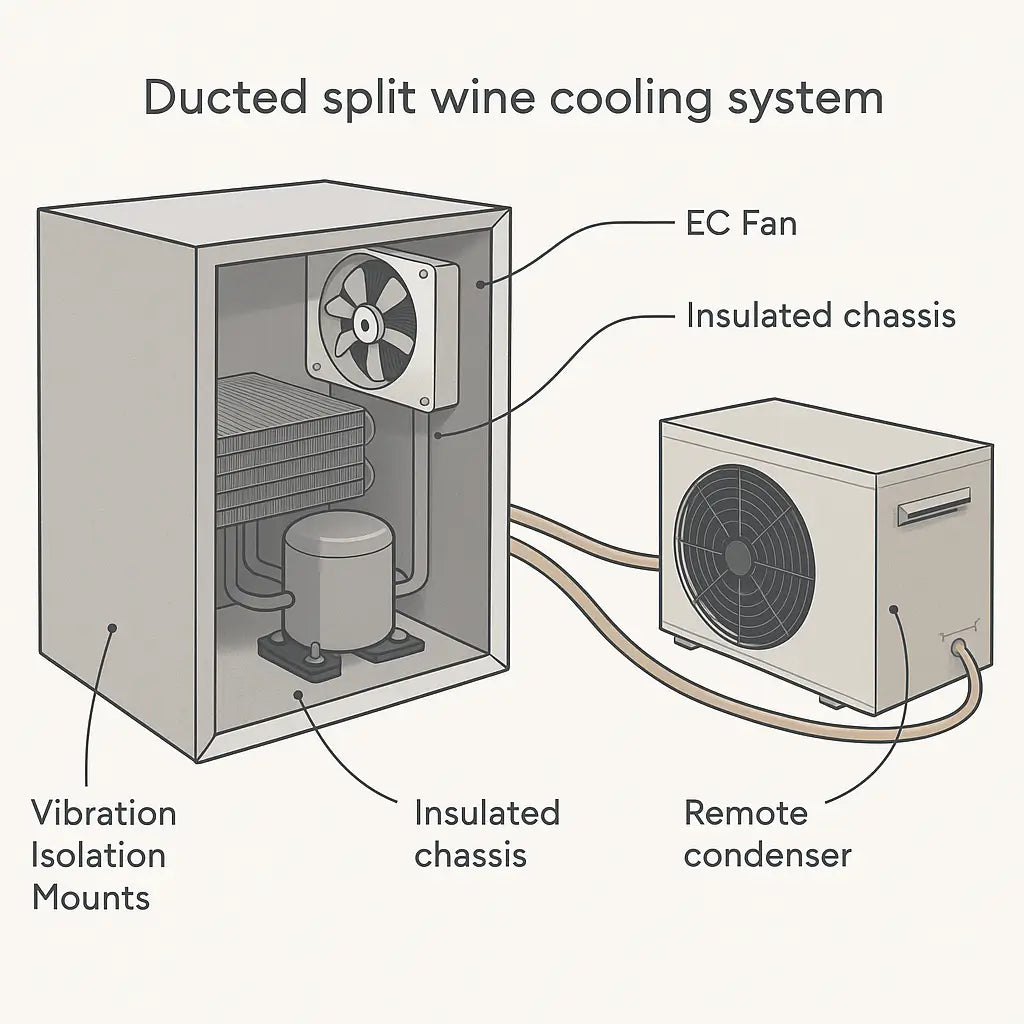

Ductless split systems →What Does a Remote Condenser Buy You Acoustically, and What Does It Cost?
Moving the condenser out of the wine room removes the compressor and the condenser fan, which is most of the sound energy, and leaves only a fan-coil or a duct grille in the cellar. What it costs is refrigerant lines run by a licensed HVAC professional, a second service location, and a higher starting price.
The acoustic logic is simple. A split system uses both distance and mass: the loudest components sit behind a wall, a floor, or outdoors, and only refrigerant lines cross the boundary. Wine Guardian does not publish a decibel rating for the DS or SS series precisely because such a number would describe the condenser location rather than the cellar.
What you give up for the quiet
- Price. The ducted split DS025 starts at $8,329 against $6,043 for the ducted D025 and $3,039 for the entry through-the-wall TTW01B Classic. The quiet is real and it is paid for.
- Trades. Refrigerant lines must be brazed, evacuated and charged by a licensed HVAC professional. That is a scheduled job, not a plug-in installation.
- Two service points. A technician may need access to both the condenser and the fan-coil, so plan a reachable condenser location.
- Line-set limits. Run length between fan-coil and condenser is capped by the model's specification. A licensed HVAC professional should confirm the run and any elevation difference before the location is fixed.
How a split system separates the noisy half from the cellar
A short walkthrough of the Wine Guardian split architecture, useful for seeing which components leave the wine room and which stay in it.
- Which half of the system carries the compressor and condenser fan
- Where the refrigerant lines cross the cellar boundary
- What is left inside the room once the condenser is remote
Quiet is not always worth the complexity
If the cellar backs onto a garage, a utility room or an unfinished basement, a through-the-wall unit puts its noise somewhere nobody sits and saves several thousand dollars. Splits earn their price when there is no acceptable place to dump exhaust heat and sound, or when the cellar itself is a room people occupy. Size the load first in the wine cellar cooling sizing guide, because an undersized unit runs longer and is therefore louder over a day regardless of its rating.
Why Does Vibration Isolation Matter for Both the Noise and the Wine?
Vibration is the part of the problem a decibel rating does not capture. Wine Guardian mounts internal components on rubber-in-shear isolators to reduce vibration and noise before either can reach the cabinet. What escapes the cabinet travels through the mounting into the building and comes back out as a hum in an adjoining room.
Rubber-in-shear isolators load the rubber sideways rather than in compression, which gives a softer, lower natural frequency and better isolation of the compressor's running speed. That is why an isolated unit can measure the same on a sound meter as an unisolated one and still feel quieter through a wall. On ducted and water-cooled units this isolation does most of the work, because the unit sits on a structure in a utility space that would otherwise act as a soundboard.
Why vibration matters to the bottles, not just the ears
Continuous low-level vibration is widely avoided in long-term wine storage as a matter of accepted practice, which is one reason purpose-built cellar systems keep the compressor off the same frame as the racking. The practical guidance is short: do not fasten racking to the same stud bay as the unit, keep the wall sleeve isolated from the racking structure, and use the manufacturer's mounting hardware rather than an improvised rigid bracket.
- Do not hard-mount the unit to a shared frame with the racking. Decouple the two so the compressor cannot drive the rack.
- Use the specified wall sleeve and hardware for a through-the-wall installation rather than shimming the unit tight into a rough opening.
- Leave the isolators alone. Shipping bolts and rigid packers are sometimes left in place at installation, which defeats the isolation entirely. A licensed HVAC professional should confirm they were removed.
- Set ducted units on their own base, not on a shared platform with other mechanical equipment, and keep the first duct section flexible.
Wine Cooling Expert, Wine Guardian Dealer
The noise complaints I take are almost never about the decibel rating. They are about a unit bolted rigid into a stud wall that backs onto a bedroom, or shipping hardware nobody removed. Isolate the unit from the structure and half of the perceived noise problem disappears before you have spent a dollar on a quieter model.
If a client tells me the cellar has to be silent, I stop discussing decibel figures and start discussing where the compressor is going to live. Configuration beats specification every time on noise.
How Do Ducts, Grilles and Airflow Change the Noise You Hear?
On a ducted or ducted split system the only sound in the cellar is air moving through a grille, and that sound is set by the duct design rather than the unit. Wine Guardian notes that flexible ductwork absorbs air noise and that sound drops further each time a duct run turns a corner, which makes the duct layout an acoustic decision.
Air noise rises sharply with velocity, so an undersized duct or grille is the usual cause of a whistle or a rush in an otherwise quiet cellar. The fixes are dull and effective: larger duct diameter, a larger face area at supply and return, smooth transitions rather than abrupt reductions, and enough straight duct before the grille that the air is no longer turbulent when it arrives. The United States Department of Energy notes that duct design and sealing affect both efficiency and performance (DOE, minimizing energy losses in ducts), and the same decisions govern noise.
Duct and grille choices that lower cellar noise
- Use insulated flexible duct for the first section off the unit. It absorbs air noise and breaks the vibration path from the fan housing into rigid metal.
- Put a turn between the unit and the grille. Sound drops with each corner, so a run with a bend is quieter than a straight shot into the room.
- Size grilles generously. A larger face area moves the same air at lower velocity, which is the single most reliable way to remove a rush from the room.
- Do not put the grille directly over a tasting table. An acceptable air noise level becomes intrusive when it is 2 feet from where people talk.
The mechanical room decides more than the model does
A ducted unit in a closet sharing a wall with a bedroom can be louder in that bedroom than a through-the-wall unit would have been in the cellar. Placement is the whole decision: pick a space where noise is welcome, keep the duct run within the stated length, and give the condenser the clearance it needs. Browse the range in wine cellar cooling units and confirm the layout with a licensed HVAC professional.
How Do You Make a Finished Wine Cellar Quieter Without Replacing the Unit?
Most of the quiet available in a finished cellar comes from three things you can change without buying a new unit: cleaning the condenser so the fan is not fighting for air, decoupling the unit from the structure, and treating the room and the door. Replacing the unit is the last step, not the first.
- Rule out a fault first. A unit that recently got louder, cycles constantly, or rattles is telling you something. Work through 5 Signs Your Wine Cooling System Is About to Fail before treating it as a design problem.
- Clean the condenser coil and filter, and restore clearances. A dirty coil or a blocked exhaust path makes the condenser fan work harder and louder. Restoring the manufacturer's clearances often removes several decibels of avoidable fan noise at no cost.
- Check that the unit is isolated from the structure. Confirm shipping hardware was removed, that the unit is not shimmed rigid into the rough opening, and that the racking is not fastened to the same frame. Rubber-in-shear isolators only work if nothing bridges them.
- Improve the room boundary. A solid core insulated door with a full perimeter and threshold seal blocks far more sound into the adjoining room than acoustic treatment inside the cellar, and it protects temperature stability too.
- Add absorption inside the cellar. Full racking, wood, and a rug reduce reflections in a hard-surfaced room. This lowers what you hear standing in the cellar without touching the unit at all.
- Enlarge or relocate the grille on a ducted system. If the complaint is a rush of air rather than machinery, a larger grille face or moving it away from the seating position usually solves it. A licensed HVAC professional should confirm the change does not restrict airflow.
- Only then compare a quieter unit or configuration. If the compressor is the problem and the room cannot absorb it, move the machinery out with a ducted or split system, or step to a quieter model in the same class. Request a price quote and we will check the options against Wine Guardian published specifications.
A correctly sized unit is a quieter unit
An undersized system runs for more hours a day, so you hear it for longer regardless of its decibel rating. Estimate your cellar's cooling load, then compare it with the rated capacity of the models in the table above.
Featured Wine Guardian Systems
What is the quietest wine cellar cooling system?
The quietest configurations are ducted, ducted split and ductless split systems, because no compressor is installed in the wine room. Among self-contained units that publish a figure, the Wine Guardian TTW01B Defender is quietest at 47.9 dB measured at 6 feet, ahead of the TTW01B Sentinel at 49.5 dB.
What is the Wine Guardian D025 noise level in dB?
Wine Guardian does not publish a single decibel rating for the D025 or any other ducted unit. The stated reason is placement: the D025 installs outside the wine room and connects through insulated ductwork, so the compressor and fans are not in the space you occupy. Internal components sit on rubber-in-shear isolators.
What is the Wine Guardian D050 noise level, and does it differ from the D025?
Neither the D050 nor the D025 carries a published decibel figure, so there is no rated difference to compare. Both are ducted units installed outside the cellar with components on rubber-in-shear isolators. The D050 has a larger compressor and fan, so expect more sound at the unit itself, in whatever space it occupies.
What is the Wine Guardian Sentinel Series noise level in dB?
Sentinel Series through-the-wall units publish figures of 49.5 dB for the TTW01B, 56.7 dB for the TTW02B and 57.9 dB for the TTW04B, all measured at 6 feet. Sentinel models include internal sound reduction foam. Ducted Sentinel Series units such as the D025 carry no published decibel rating.
What is the Wine Guardian ducted noise level in the cellar?
There is no published decibel rating for ducted Wine Guardian units, and in a correctly designed installation the cellar hears only air at the grille. Flexible ductwork absorbs air noise and sound drops with each turn in the run. The machinery noise stays in whatever space the unit is installed in.
Does the Wine Guardian D025 have vibration isolation?
Yes. Wine Guardian states that internal components on its ducted units, including the D025, are mounted on rubber-in-shear isolators to reduce vibration and noise. That isolation matters most where the unit sits on a shared structure, because vibration passed into framing is re-radiated as a hum in adjoining rooms.
Is a split system quieter than a through-the-wall unit?
Inside the cellar, yes. A split system places the compressor and condenser outside the wine room, leaving only a fan-coil or a duct grille inside, while a through-the-wall unit puts the whole machine in the wall. The trade-off is refrigerant lines run by a licensed HVAC professional and a higher starting price.
Can a wine cellar be next to a bedroom?
It can, but the configuration matters more than the model. A through-the-wall unit exhausts noise and heat into an adjoining space, which is a poor match for a bedroom wall. A ducted or split system with the machinery placed elsewhere is the typical choice, and a licensed HVAC professional should confirm the layout.
How do I reduce noise from a wine cooling unit?
Clean the condenser coil and restore the manufacturer's clearances, confirm the unit is isolated from the structure and not hard-mounted to the racking, seal and insulate the cellar door, add absorption inside the room, and enlarge an undersized grille on a ducted system. Replace the unit only after those steps.
How do I compare wine cellar cooling units for noise levels?
Compare only figures that state a distance, such as decibels at 6 feet, and only within the same configuration. Then decide which zone must stay quiet: the cellar, the adjoining room, or outdoors. Configuration decides more than the rating, because a remote compressor removes most of the sound energy entirely.
Need the quiet option that still fits the room?
Send us your cellar dimensions, the adjoining spaces and where the machinery could go, and we will match the configuration and check the published noise data against Wine Guardian documentation.
Keep planning
More on this topic in our wine cooling buying guides. Size the load first in the cooling calculator, since a unit that runs less is heard less, then compare every configuration and current starting price in the wine cellar cooling units collection.
This guidance is general and intended to help narrow the selection. Final sizing, installation design, electrical requirements, and configuration should be confirmed with Wine Guardian official documentation and a licensed HVAC professional or qualified contractor.
