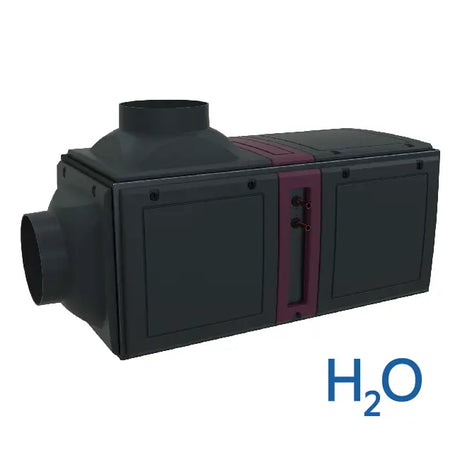

Wine Guardian D088WC Ducted Water Cooled Wine Cooling System
Wine Guardian
Wine Guardian D025WC Water Cooled Wine Cooling Unit
Wine Guardian
Wine Guardian DP200WC Pro Water Cooled Wine Cooling System
Wine Guardian
Wine Guardian DP88WC Pro Water Cooled Ducted Wine Cooling Unit
Wine Guardian
Wine Guardian DP50WC Pro Water Cooled Ducted Wine Cooling Unit
Wine Guardian

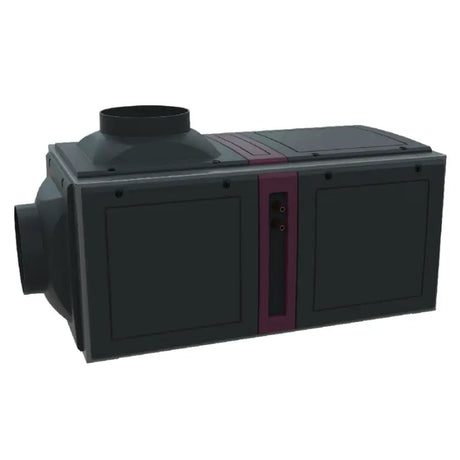

Wine Guardian D200WC Water Cooled Ducted Wine Cooling Unit
Wine Guardian

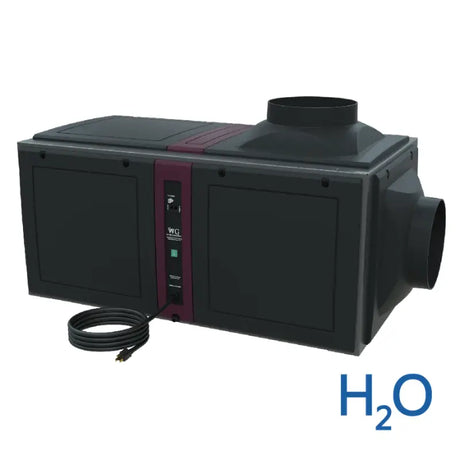

Wine Guardian D050WC Ducted Water Cooled Wine Cooling Unit
Water-cooled wine cellar cooling units reject heat to a water loop instead of the surrounding air, so there is no warm air to exhaust. They are the right choice when the install space cannot easily shed heat, or when a water source is already available.
Water-cooled is available exclusively on Wine Guardian self-contained ducted systems and works with geothermal sources, cooling towers, and year-round water supplies. The page below explains how it works and which capacity fits your space.
Air-cooled systems have to dump heat into a nearby space. A water-cooled unit sends that heat into a water loop instead, which makes it a great solution for wine rooms where exhausting warm air is difficult or impossible.
It pairs naturally with a geothermal source, a cooling tower, or a year-round water supply, making it a strong fit for cold-climate and commercial projects.
Water-cooled capability is available exclusively on Wine Guardian self-contained ducted systems. They install outside the wine room and connect by insulated ductwork, keeping equipment and noise out of the cellar.
Installation stays simple, with no cutting copper and no licensed contractor required on site. The water connection points sit on the side of the unit for easy access.
Water-cooled systems were engineered with the installer in mind. An integral water regulating valve keeps operation efficient, and the main control board includes points to control geothermal pumps.
The water connections are on the side for easy access, and the system accepts water as cold as 45 degrees Fahrenheit and as warm as 85 degrees Fahrenheit. The remote controller monitors temperature and humidity around the clock.
| Feature | Water-Cooled | Air-Cooled |
|---|---|---|
| Self-contained ducted unit | ✓ | ✓ |
| Rejects heat to a water loop | ✓ | |
| Rejects heat to the surrounding air | ✓ | |
| Needs no place to discharge warm air | ✓ | |
| Works with geothermal or cooling-tower water | ✓ | |
| Accepts water 45 to 85 degrees Fahrenheit | ✓ | |
| Simple install, no licensed contractor on site | ✓ | ✓ |
| Available in standard and Pro models | ✓ | ✓ |
Choose water-cooled when there is no easy way to exhaust warm air and a water source is available; otherwise an air-cooled ducted unit is the simpler path.
The standard self-contained ducted unit that rejects heat to nearby air. Browse ducted units.
A separate evaporator and remote condenser for tight or quiet installs. Browse ducted split.
All-in-one systems with smart-home control and extreme-cold protection, available water-cooled. Browse the Pro Series.
Water-cooled is one of several ducted options. Compare it against every format in the wine cellar cooling systems guide, or browse all Wine Guardian products. Final water source, sizing, and heat rejection should be confirmed with a licensed HVAC professional.
Wine Guardian walks through how a water-cooled ducted system rejects heat to a water loop, where the water connections go, and how it pairs with geothermal and cooling-tower sources.
Want help confirming a water source and capacity? Call 1-800-260-1712 for free sizing support.
The water-cooled ducted line, from a small room up to a large or commercial cellar.
Compact water-cooled unit for small cellars.
Mid-size water-cooled unit for home wine rooms.
High-capacity water-cooled unit for large or commercial cellars.
The featured units above are the standard D-series. The full water-cooled range also includes the higher-capacity D088WC ducted water-cooled unit and the Pro water-cooled line: the DP25WC Pro water-cooled system, DP50WC water-cooled ducted unit, DP88WC Pro water-cooled unit, and DP200WC Pro water-cooled system for large and commercial cellars.
A water-cooled wine cellar cooling unit is a ducted system that rejects heat to a water loop instead of the surrounding air, so there is no warm air to exhaust from the install location.
Choose water-cooled when there is no good place to discharge warm air, or when you have a water source such as a geothermal loop, a cooling tower, or a year-round water supply.
Water-cooled systems work with geothermal sources, cooling towers, and year-round water sources. Confirm the water supply and drain design with a qualified professional.
Wine Guardian water-cooled units accept water as cold as 45 degrees Fahrenheit and as warm as 85 degrees Fahrenheit.
Yes. Water-cooled is available exclusively on Wine Guardian self-contained ducted systems, including the Pro models.
Like other self-contained ducted units, installation is simple with no cutting copper and no licensed contractor required on site, and the water connection points are on the side of the unit for easy access. Confirm water supply, drain, and electrical with a qualified professional.
Capacities run from roughly 3,760 to 15,680 BTU across the standard D and Pro DP water-cooled models. Confirm sizing with Wine Guardian's cooling calculator and a qualified HVAC professional.
Talk to a wine cooling specialist about whether water-cooled is right for your project, the water source and temperature, capacity, and connections. This guidance is general and intended to help narrow the selection. Final sizing, water supply, drain, and electrical requirements should be confirmed with Wine Guardian documentation and a licensed HVAC professional.
