Written by Jim Hopper, Wine Cooling Expert · Updated August 2026
Should You Choose a Split System or a Through-the-Wall Wine Cellar Cooling Unit?
A through-the-wall wine cellar cooling unit is the lower-cost, single-box option for a cellar with an adjoining interior room to absorb its exhaust heat; a split system costs more and needs a licensed HVAC professional for refrigerant lines, but it moves the compressor out of the cellar and lets the condenser sit outdoors or in a remote mechanical space. In the Wine Guardian line the choice is between the TTW01B, TTW02B, and TTW04B through-the-wall units (starting at $3,039) and the SS018 ductless split or DS025 and DS050 ducted splits (starting at $7,266). The gap in price is mostly the gap in installation freedom.
Below: a quick verdict by scenario, how the two designs differ, in-cellar noise, install trades and refrigerant rules, price and capacity side by side, retrofit fit, a split-system video, and a six-step decision flow.
Split system vs through-the-wall wine cellar cooling comes down to where the heat and the noise are allowed to go. A through-the-wall unit such as the Wine Guardian TTW01B Sentinel (1,440 BTU/h nominal, 49.5 dB at 6 feet, starting at $4,069) installs between wall studs on a standard plug and exhausts into an adjacent interior room. A split such as the SS018 ductless split (2,800 BTU/h, starting at $7,266) or DS025 ducted split (3,485 BTU/h, starting at $8,329) places only a fan-coil in or near the cellar, with a matched condenser elsewhere, and requires a licensed HVAC professional for the refrigerant lines. Through-the-wall units win on price and simplicity; splits win on noise, placement freedom, and larger capacities.
Split system vs through-the-wall: the five deciding factors
- Noise in the cellar: through-the-wall keeps the compressor in the wall (49.5 to 57.9 dB at 6 ft on Sentinel models); a split keeps the compressor out of the room entirely
- Condenser location: through-the-wall exhausts into the adjoining interior room; a split condenser can sit outdoors, in a garage, or in a mechanical space
- Trades needed: through-the-wall uses a standard Type B plug and a framed opening; a split needs a licensed HVAC professional for refrigerant line connections
- Starting price (Wine Guardian, 2026): through-the-wall from $3,039 (TTW01B Classic); ductless split from $7,266 (SS018); ducted split from $8,329 (DS025)
- Capacity: through-the-wall tops out at 3,760 BTU/h nominal (TTW04B); ducted splits run from 3,485 BTU/h (DS025) to 6,300 BTU/h (DS050) and up
Which Is Better for Your Cellar: a Split System or a Through-the-Wall Unit?
A through-the-wall unit is better when the cellar shares a wall with a ventilated interior room, the volume is small to mid-sized, and budget or a simple install matters most. A split system is better when the cellar sits beside living space, no adjoining room can take the exhaust heat, or the load exceeds what the largest through-the-wall unit can carry.
Split system vs through-the-wall wine cellar cooling: verdict by scenario
| Your situation | Commonly selected | Why |
|---|---|---|
| Closet or small cellar next to a garage, utility room, or basement | Through-the-wall | The adjoining room absorbs the exhaust heat; a TTW01B Sentinel installs between studs on a standard plug |
| Cellar beside a dining room, bedroom, or home office | Split system | The compressor and condenser leave the living space; only a low-noise fan-coil stays near the cellar |
| Glass wine wall or display with no mechanical room | Ductless split | The SS018 fan-coil mounts flush to racking or through the wall with no ductwork; the condenser goes elsewhere |
| Cellar over roughly 2,000 cubic feet or heavy glass load | Ducted split | The DS050 delivers 6,300 BTU/h, well above the 3,760 BTU/h nominal ceiling of the TTW04B |
| Finished room, no attic or crawl access, tight budget | Through-the-wall | One framed opening and one plug; no refrigerant lines, no line-set routing, no second unit to place |
| Interior cellar with nowhere to dump heat | Split system | The condenser is outdoor-rated and can sit outside the building envelope |
Model figures per Wine Guardian published specifications, 2026. Scenario matches are typical selections, not project sign-offs; a licensed HVAC professional should confirm.
For ranked picks inside each family, see the best through-the-wall wine cooling units and best ductless split wine cooling systems guides, or the pillar guide to the best wine cellar cooling units.
How Do Split Systems and Through-the-Wall Units Differ Mechanically?
A through-the-wall wine cellar cooling unit is a self-contained box: evaporator, compressor, condenser, fans, and controls in one chassis that straddles the cellar wall. A split wine cellar cooling system separates the same parts into two boxes, a fan-coil (evaporator) at the cellar and a condensing unit somewhere else, joined by refrigerant lines that are charged on site.
One chassis, cold face in, hot face out
The cold side of a Wine Guardian TTW unit faces the cellar and the hot side faces the adjoining room, where the compressor's heat is rejected. The unit slides into a framed opening or optional wall sleeve, weighs 58 to 71 lbs on the Sentinel models, and plugs into a standard USA Type B outlet. Sentinel models add a humidity sensor and an internal condensate evaporator that often removes the need for a drain line.
Fan-coil at the cellar, condenser wherever heat can go
In a Wine Guardian split, the fan-coil holds the evaporator and a fan and weighs 25 lbs (SS018) to 54 lbs (DS050). The matched condensing unit holds the compressor in a 34 by 12 by 26 inch outdoor-rated enclosure of about 75 lbs. Ductless splits such as the SS018 mount the fan-coil in the cellar; ducted splits such as the DS025 and DS050 keep it outside the room and deliver air through insulated ductwork. Either way, no compressor runs inside the wine room.
Which Is Quieter Inside the Cellar: a Split or a Through-the-Wall Unit?
A split system is quieter inside the cellar because the compressor is not in the room. Wine Guardian through-the-wall Sentinel units publish 49.5 dB (TTW01B), 56.7 dB (TTW02B), and 57.9 dB (TTW04B) at 6 feet; the split fan-coil has no compressor and Wine Guardian publishes no single decibel rating for it, since the sound depends on placement.
Where the sound actually lands
- Through-the-wall: compressor and both fans sit in the wall, so the cellar hears the unit and the adjoining room hears the condenser fan and exhaust air. Sentinel models use sound reduction foam; the published figures are measured at 6 feet.
- Ductless split (SS018): the cellar hears a 150 CFM fan-coil with a 75 W fan motor and no compressor. The condenser, with a 1/4 HP compressor and 350 CFM fan, is outdoors or in a remote space.
- Ducted split (DS025, DS050): the fan-coil is outside the cellar and connects through insulated flexible duct, which absorbs air noise; the condenser is remote. The cellar hears airflow from a grille, not machinery.
The distinction matters most when the cellar opens onto a living area: 49.5 dB sits between moderate rainfall and normal conversation, fine in a basement, less so beside a dinner table. If quiet is the primary requirement, see the quietest wine cellar cooling systems guide.
What Does Each System Take to Install, and Which Trades Are Involved?
A through-the-wall unit needs a framed opening between standard studs, an optional wall sleeve, an adjoining ventilated interior room, and a standard outlet; Wine Guardian describes the TTW Sentinel line as designed for owner installation. A split system needs refrigerant line connections between two units, which Wine Guardian requires a licensed HVAC contractor to perform, plus a condenser pad or mount and, for ducted splits, insulated ductwork.
Installation requirements: through-the-wall vs split (Wine Guardian Sentinel and split models)
| Requirement | Through-the-wall (TTW01B, TTW02B, TTW04B) | Ductless split (SS018) | Ducted split (DS025, DS050) |
|---|---|---|---|
| Wall or structural work | Framed opening between studs; mounting bracket included, wall sleeve optional | Fan-coil surface-mounted to racking or set through the wall; small line-set penetration | Fan-coil mounted outside cellar; supply and return duct penetrations (8 in or 10 in round minimum) |
| Refrigerant | Factory-sealed; no field charging | Field-connected line set; licensed HVAC contractor required | Field-connected line set; licensed HVAC contractor required |
| Electrical | Standard USA Type B plug | Fan-coil 115/1/60; condenser 208-230/1/60 | 115/1/60 (DS025 draws 3.1 A; DS050 draws 4.8 A) |
| Heat rejection | Into the adjoining interior room; not rated for exterior walls (Defender models are) | Outdoor-rated condenser outside or in a remote space | Outdoor-rated condenser outside or in a remote space |
| Condensate | Internal condensate evaporator on Sentinel models; drain often not needed | 0.5 in drain connection at fan-coil | 0.5 in drain connection at fan-coil |
| Second location needed | No | Yes, for the condenser | Yes, for the condenser and for the fan-coil outside the room |
Per Wine Guardian published specifications, 2026. Framing, electrical, drainage, and clearances should be confirmed with official Wine Guardian documentation and a licensed HVAC professional or qualified contractor.
Refrigerant handling is regulated, not optional
The reason a split cannot be a weekend project is federal, not just warranty policy. Under Section 608 of the Clean Air Act, the EPA requires technicians who maintain, service, repair, or dispose of equipment that could release refrigerant to be certified (EPA Section 608 technician certification). Connecting and charging a line set falls inside that rule. A through-the-wall unit ships sealed and charged, though a qualified contractor should still confirm the framing, exhaust path, and circuit.
How Do Split and Through-the-Wall Units Compare on Price and Capacity?
Wine Guardian through-the-wall units start at $3,039 (TTW01B Classic) and top out at 3,760 BTU/h nominal with the TTW04B. Split systems start at $7,266 for the 2,800 BTU/h SS018 ductless split and $8,329 for the 3,485 BTU/h DS025 ducted split, with the DS050 at 6,300 BTU/h from $8,990. Below about 3,500 BTU/h the two families overlap; above it, only a split or a ducted unit applies.
Wine Guardian through-the-wall vs split models: capacity, noise, and starting price
| Model | Family | Rated capacity | Published noise | Typical cellar | Starting at |
|---|---|---|---|---|---|
| TTW01B Sentinel | Through-the-wall | 1,440 BTU/h nominal (830 to 1,650) | 49.5 dB at 6 ft | Small to mid-sized | $4,069 (Classic from $3,039) |
| TTW02B Sentinel | Through-the-wall | 2,650 BTU/h nominal | 56.7 dB at 6 ft | Mid-sized | $5,099 |
| TTW04B Sentinel | Through-the-wall | 3,760 BTU/h nominal (2,350 to 4,270) | 57.9 dB at 6 ft | Larger residential and commercial | $6,129 |
| SS018 | Ductless split | 2,800 BTU/h at 80°F ambient | Not published; no compressor in the fan-coil | Small cellars, displays, wine walls | $7,266 |
| DS025 | Ducted split | 3,485 BTU/h at 80°F ambient | Not published; fan-coil outside the room | About 250 to 2,000 cubic feet | $8,329 |
| DS050 | Ducted split | 6,300 BTU/h at 80°F ambient | Not published; fan-coil outside the room | About 650 to 3,000 cubic feet | $8,990 |
Capacities, noise, and cellar ranges per Wine Guardian published specifications, 2026. Prices are Wine Guardian Dealer starting prices, August 2026, equipment only.
Two details change the math. Split capacity is rated at 80°F condenser inlet and falls as the condenser location gets hotter: the DS025 delivers 3,485 BTU/h at 80°F but 2,973 BTU/h at 115°F, and the SS018 drops from 2,800 to 2,300 BTU/h, which matters if the condenser sits in an attic or on a sunny wall. And the TTW04B Sentinel is the only through-the-wall unit that reaches split-class capacity, while the TTW04B Defender ($7,159) is the only one rated for an exterior wall. Split models carry a Wine Guardian standard warranty of 2 years parts, 1 year labor, and the DS series offers optional serving-temperature control down to 45°F.
If your load lands in the overlap zone, size it with the sizing guide before comparing prices. Browse current pricing in the through-the-wall wine cellar cooling units collection, the ductless split collection, and the ducted split collection. Pro Series SP splits are quote-based; request a quote if the DS200 range is not enough.
Check the load before you pick a family
Enter your cellar dimensions, insulation, and glass area to estimate the cooling load, then see whether it falls inside the through-the-wall range or requires a split.
Featured Wine Guardian Systems
Which Fits a Retrofit or a Replacement Better?
For a retrofit in a finished room, a through-the-wall unit is usually the easier fit because it needs one opening and one outlet, and the TTW01B and TTW02B are direct successors to the older TTW009 and TTW018. A split is the better retrofit when the only free wall faces living space, when a line set can be fished to a garage or exterior, or when the room outgrew a through-the-wall unit.
1. Replacing an old through-the-wall unit
The TTW01B Sentinel replaces the discontinued TTW009 and the TTW02B Sentinel replaces the TTW018, adding a humidity sensor and condensate evaporator. A qualified professional should confirm the existing opening and circuit.
TTW02B Sentinel →2. Cellar wall faces a bedroom or dining room

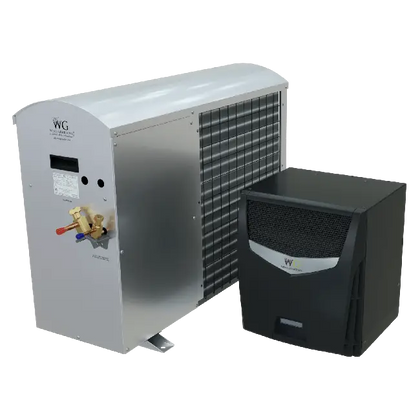

There is no room to take the exhaust heat quietly. A ductless split puts a 25 lb fan-coil in the cellar and sends the condenser to a garage or outdoors; the only penetration is a small line-set hole.
SS018 ductless split →3. Room grew, glass was added, or the unit runs constantly
When the load passes the 3,760 BTU/h nominal ceiling of the TTW04B, a ducted split moves the fan-coil out of the room and steps up to 3,485 or 6,300 BTU/h with a remote condenser.
DS025 ducted split →Five questions that settle the retrofit choice
Ask what is on the other side of the cellar wall, whether that space is a ventilated interior room, whether a line set could reach an outdoor or garage location, whether there is ceiling or soffit space for an 8 inch duct, and what the cooling calculator says the load is. Yes to the first two points to through-the-wall; a no there plus a yes on the line set points to a split. The room still needs insulation and a vapor barrier either way; see the vapor barrier guide before you cut the wall.
What Does a Wine Guardian Split System Look Like Installed?
The video below shows how a Wine Guardian split system separates the fan-coil from the condensing unit, where each piece mounts, and how the refrigerant lines connect the two. It is the fastest way to see why a split needs a second location and an HVAC trade while a through-the-wall unit needs neither.
Wine Guardian split systems explained
A short manufacturer walkthrough of the split architecture, useful for checking whether your cellar has a workable condenser location before you price the system.
- Where the fan-coil mounts and how ductless and ducted versions differ
- How the matched condensing unit is placed outdoors or in a mechanical space
- What the line set and condensate drain require from the building
How Do You Decide Between a Split System and a Through-the-Wall Unit?
Decide between a split system and a through-the-wall unit by settling the building questions first and the equipment questions second. The exhaust path, the noise tolerance of the neighboring room, and the calculated load eliminate one family in most cellars before any model is compared. The six steps below run in that order.
- Identify what is on the other side of the cellar wall. A ventilated interior room such as a garage, utility room, or basement can absorb through-the-wall exhaust. A bedroom, dining room, or exterior wall cannot, unless you choose an exterior-rated Defender model.
- Set a noise limit for the space outside the cellar. If the adjoining room is living space, compare the published 49.5 to 57.9 dB at 6 ft against what you would accept there. If the answer is no, a split removes the compressor from the area.
- Calculate the cooling load. Run the cooling calculator with real dimensions, glass area, insulation, and the warmest ambient at the exhaust or condenser location. Loads above the TTW04B's range point to a split or ducted unit.
- Check for a condenser location if a split is in play. An outdoor pad, a garage, or a mechanical room within a practical line-set run is required. Confirm the 34 by 12 by 26 inch enclosure fits and that hot summer air at that spot will not push net capacity below the load.
- Price the installed job, not the equipment. Add the framed opening and outlet for a through-the-wall unit, or the licensed HVAC visit, line set, condenser mount, and any ductwork for a split.
- Have the shortlist confirmed before ordering. A licensed HVAC professional should confirm sizing, clearances, and electrical requirements. Request a price quote and we will check the shortlist against Wine Guardian published specifications for your room.
Wine Cooling Expert, Wine Guardian Dealer
Most of the time the wall decides for you. If there is a garage or a utility room on the other side, a through-the-wall unit is the sensible buy and the money saved goes into insulation. If the other side is a dining room, I stop talking about through-the-wall units and start asking where a condenser could live.
What is the difference between a split system and a through-the-wall wine cellar cooling unit?
A through-the-wall unit is one self-contained box that straddles the cellar wall and exhausts heat into the adjoining interior room. A split system divides the same parts into a fan-coil at the cellar and a remote condensing unit, connected by refrigerant lines that a licensed HVAC contractor charges on site. Splits cost more and place more freely.
Is a split system wine cellar cooling unit quieter than a through-the-wall unit?
Yes, inside the cellar a split is quieter because the compressor is in the remote condensing unit, not the room. Wine Guardian through-the-wall Sentinel units publish 49.5 dB (TTW01B), 56.7 dB (TTW02B), and 57.9 dB (TTW04B) at 6 feet. Split fan-coils carry no single published rating because the sound depends on placement and ductwork.
Do I need an HVAC contractor to install a split wine cellar cooling system?
Yes. A Wine Guardian split such as the SS018, DS025, or DS050 connects refrigerant lines between the fan-coil and condenser, and Wine Guardian requires a licensed HVAC contractor for that work, which also keeps the warranty valid. The EPA requires Section 608 certification for technicians handling refrigerant. Through-the-wall units ship factory-sealed.
How much does a split wine cellar cooling system cost compared to a through-the-wall unit?
Wine Guardian through-the-wall units start at $3,039 for the TTW01B Classic and $4,069 for the TTW01B Sentinel, rising to $6,129 for the TTW04B Sentinel. Splits start at $7,266 for the SS018 ductless split, $8,329 for the DS025 ducted split, and $8,990 for the DS050, before installation labor, line sets, and ductwork.
Can a through-the-wall wine cooling unit vent outside?
Standard Wine Guardian TTW Classic and Sentinel units are rated for interior installation only and must exhaust into an adjoining interior room. The TTW01B, TTW02B, and TTW04B Defender models are rated for exterior-wall installation. If no wall qualifies, a split system with an outdoor-rated condenser is the usual alternative.
What size wine cellar can a through-the-wall unit cool?
Wine Guardian through-the-wall units range from the TTW01B at 1,440 BTU/h nominal for small to mid-sized cellars to the TTW04B at 3,760 BTU/h nominal for larger residential and commercial rooms. Actual coverage depends on insulation, glass, and ambient temperature, so use the cooling calculator and have a licensed HVAC professional confirm the final size.
Can I use a portable air conditioner in a wine cellar?
A portable or standard air conditioner is not designed for wine storage: it cools toward room-comfort temperatures, strips humidity, and cycles in ways that do not hold 55°F to 58°F. Purpose-built through-the-wall and split wine cellar cooling units hold that range with ±1°F control and manage humidity, which is why they are the standard choice.
What is the best wine cellar cooling unit, split or through-the-wall?
Neither is best in the abstract. A through-the-wall unit such as the TTW01B Sentinel is commonly selected for small to mid-sized cellars with a ventilated adjoining room and a tight budget. A split such as the SS018 or DS025 is commonly selected when the cellar borders living space, has no exhaust path, or needs more than 3,760 BTU/h.
Ready to settle split vs through-the-wall for your cellar?
Send us the cellar dimensions, what sits on the other side of the wall, and any possible condenser location, and we will check both families against Wine Guardian published specifications. Or browse every through-the-wall unit with current starting prices.
Keep planning
More on this topic in our wine cooling buying guides. Estimate your heat load with the cooling calculator, then compare starting prices in the through-the-wall wine cellar cooling units collection.
This guidance is general and intended to help narrow the selection. Final sizing, installation design, electrical requirements, and configuration should be confirmed with Wine Guardian official documentation and a licensed HVAC professional or qualified contractor.
