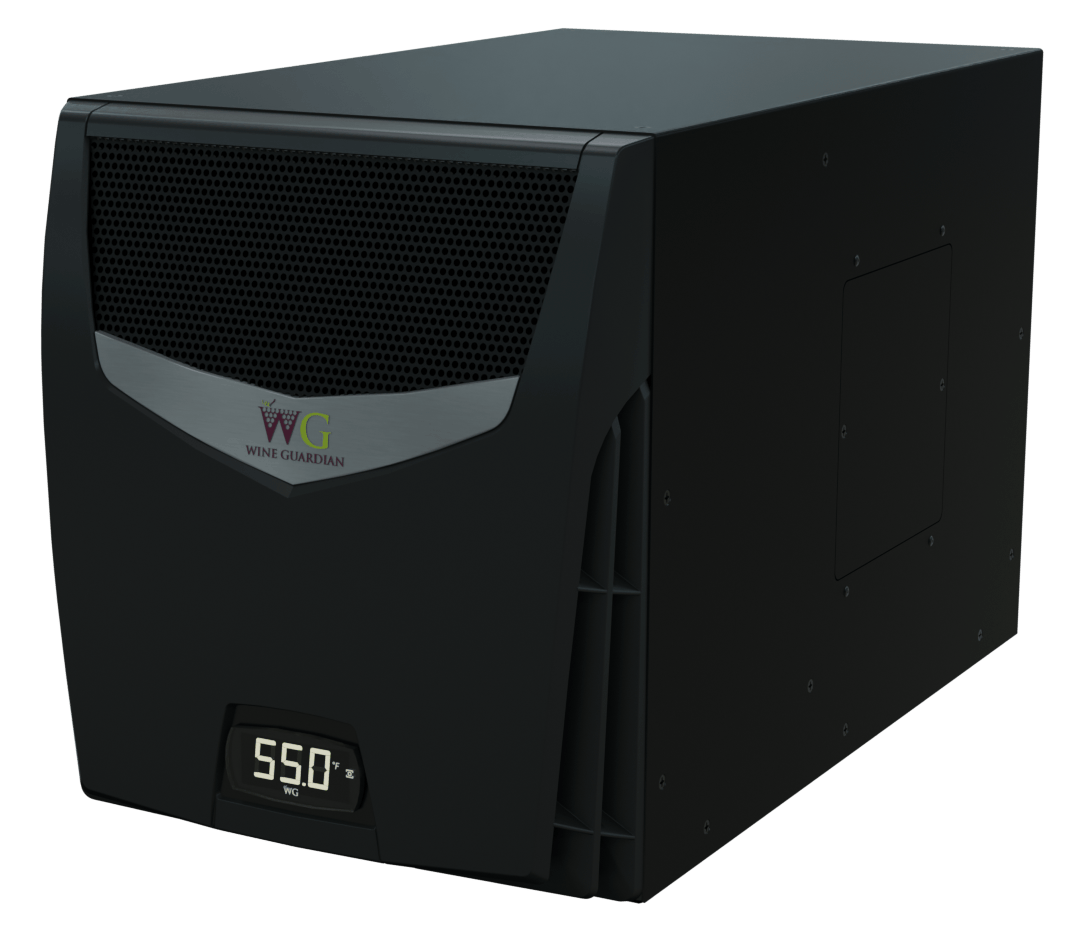

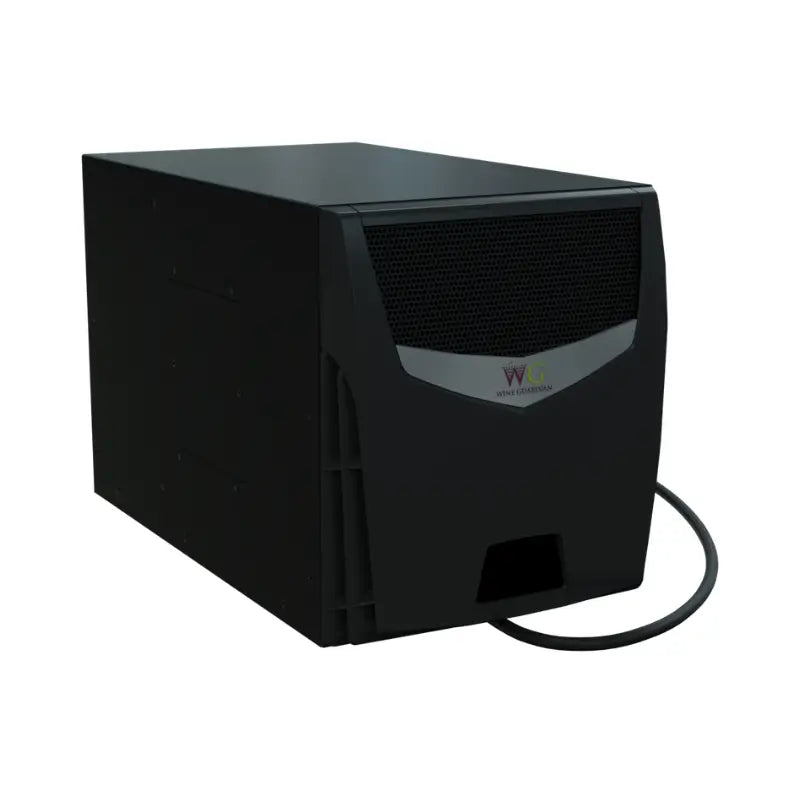

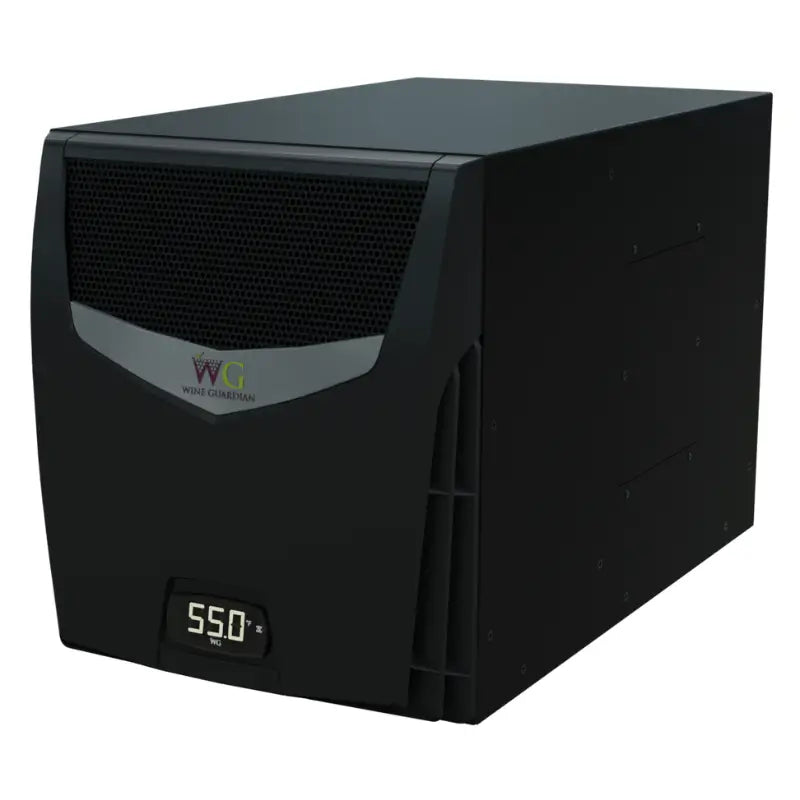

Wine Guardian TTW01B Sentinel Through-The-Wall Wine Cellar Cooling Unit
Self-contained through-the-wall unit for small wine rooms and displays: 1,440 BTU/h at 75°F, 120 V plug-in, humidity sensor built in
- The TTW01B delivers 1,440 BTU/h at 75°F condenser air and 830 BTU/h at 125°F.
- The TTW01B Sentinel exhausts its heat from the condenser end into the room on the other side of the wall, and that air can be 20°F warmer than the air entering it.
- Buy the Sentinel if you want a humidity sensor and a humidifier connection as well as temperature control, and the Classic if temperature control alone is enough.
- The unit needs a dedicated 120 V circuit and an outlet within 5 ft, outside the cellar, connected by a licensed electrician.
- The TTW01B Sentinel is rated at 49.5 dBA on the cellar side, measured six feet from the supply air grille.
Includes TTW01B Sentinel cooling unit What's in the box (3)
Wine Guardian TTW01B Sentinel Through-The-Wall Wine Cellar Cooling Unit is backordered and will ship as soon as it is back in stock.
- Authorized Wine Guardian dealer
- 25 month parts warranty
- 30-day returns, unopened
Couldn't load pickup availability
Wine Guardian TTW01B Sentinel Through-The-Wall Wine Cellar Cooling Unit is backordered and will ship as soon as it is back in stock.
The Wine Guardian TTW01B Sentinel is a self-contained through-the-wall wine cellar cooling unit rated at 1,440 BTU/h at 75°F condenser air, with a built-in humidity sensor and internal condensate re-evaporation. It is designed to fit between standard wall studs: cooling coil and fan face the cellar, and the condenser releases the heat into the room on the other side of the wall. It runs on a 120 V plug, needs no ductwork and no remote condenser, and is rated for interior walls only. It is one of the Wine Guardian through-the-wall units, and we sell it as an authorized Wine Guardian dealer.
Why this model
TTW01B Sentinel Through-The-Wall key features
-
1,440 BTU/h of cooling
Rated at 75°F condenser air; 1,070 BTU/h at 90°F.
-
Humidity sensor built in
Reads temperature and humidity and connects a Wine Guardian freestanding humidifier.
-
No drain line as shipped
Condensate is re-evaporated inside the unit; the drain tube comes plugged.
-
Fits between standard wall studs
Opening up to 14½ x 16¼ in, stud to stud, in an interior wall.
-
Heat goes behind the wall
The condenser end exhausts into the next room; a duct collar kit is optional.
-
Bluetooth and NFC
Set and read the cellar from a phone with the Carel Controlla app.
Who the TTW01B Sentinel is for
The TTW01B Sentinel covers cellars up to about 600 cubic feet. Wine Guardian sizes the Through-the-Wall B series by heat load rather than by a published cubic-foot rating, so this figure is calculated with Wine Guardian's own cooling calculator at a documented baseline: an 8-foot ceiling, no glass, R-13 walls and floor, R-29 ceiling, a 75°F warmest wall, 80°F air to the condenser and a 55°F cellar. Wine Guardian separately lists the TTW01B as the replacement for the TTW009, which it rates at 50 to 600 cubic feet.
The TTW01B Sentinel is the right choice for a small wine room, closet or display behind an interior wall, where the heat load fits 1,440 BTU/h and humidity should be read as well as temperature.
Best for
- Small cellars and wine displays whose heat-load calculation fits 1,440 BTU/h at 75°F
- An interior wall with a room behind it that can take the warm condenser air
- Owners who want a humidity reading and the option to connect a Wine Guardian freestanding humidifier
- Replacing a TTW009, which Wine Guardian names the TTW01B Sentinel as the successor to
Choose another model when
- The unit has to go through an exterior wall or the cellar needs heat: the TTW01B Defender
- Temperature control alone is enough: the TTW01B Classic
- The heat load is above what 1,440 BTU/h covers: the TTW02B Sentinel
Not sure the Wine Guardian TTW01B Sentinel Through-The-Wall Wine Cellar Cooling Unit is the right size? Enter your room size, insulation and glass to see your cellar's cooling load in BTU/h.
Open the Wine Guardian cooling calculatorSee it in action
See the TTW01B Sentinel Through-The-Wall in action
Wine Guardian TTW Features and Benefits
Wine Guardian Through-the-Wall Installation Guide
Wine Guardian Through-the-Wall Installation, previous generation
Parts for a working install are ordered separately.
See the complete systemComplete system
Complete the TTW01B Sentinel Through-The-Wall system
Sold separately. Tick what you need — it goes into the cart with the unit.
Wine Guardian TTW01B Sentinel specifications
- 1,440 BTU/h at 75°F
- 120 V plug-in
- 58 lb
SKU: WGTTW01B00LCS2A0BHF
| Cooling capacity | 1,440 BTU/h at 75°F condenser air |
|---|---|
| Refrigerant | R-513A, non-flammable, low global warming potential |
| Standard warranty | 25 months parts, 13 months labor from the original invoice date |
All specifications (28)Show less
| Cooling | |
|---|---|
| Brand and model | Wine Guardian TTW01B Sentinel |
| Type | Self-contained through-the-wall unit, air-cooled, ductless |
| Capacity at 90°F condenser air | 1,070 BTU/h |
| Rating conditions | Cellar air 55°F dry bulb, 47°F wet bulb; AHRI Standard 1250 |
| Evaporator airflow | 101 CFM |
| Condenser airflow | 117 CFM |
| Set point range | 42°F to 75°F |
| Electrical | |
| Power | 120 V, 1 phase, 60 Hz |
| Power draw | 260 W |
| Full load current / minimum circuit | 5.1 A / 6.2 A |

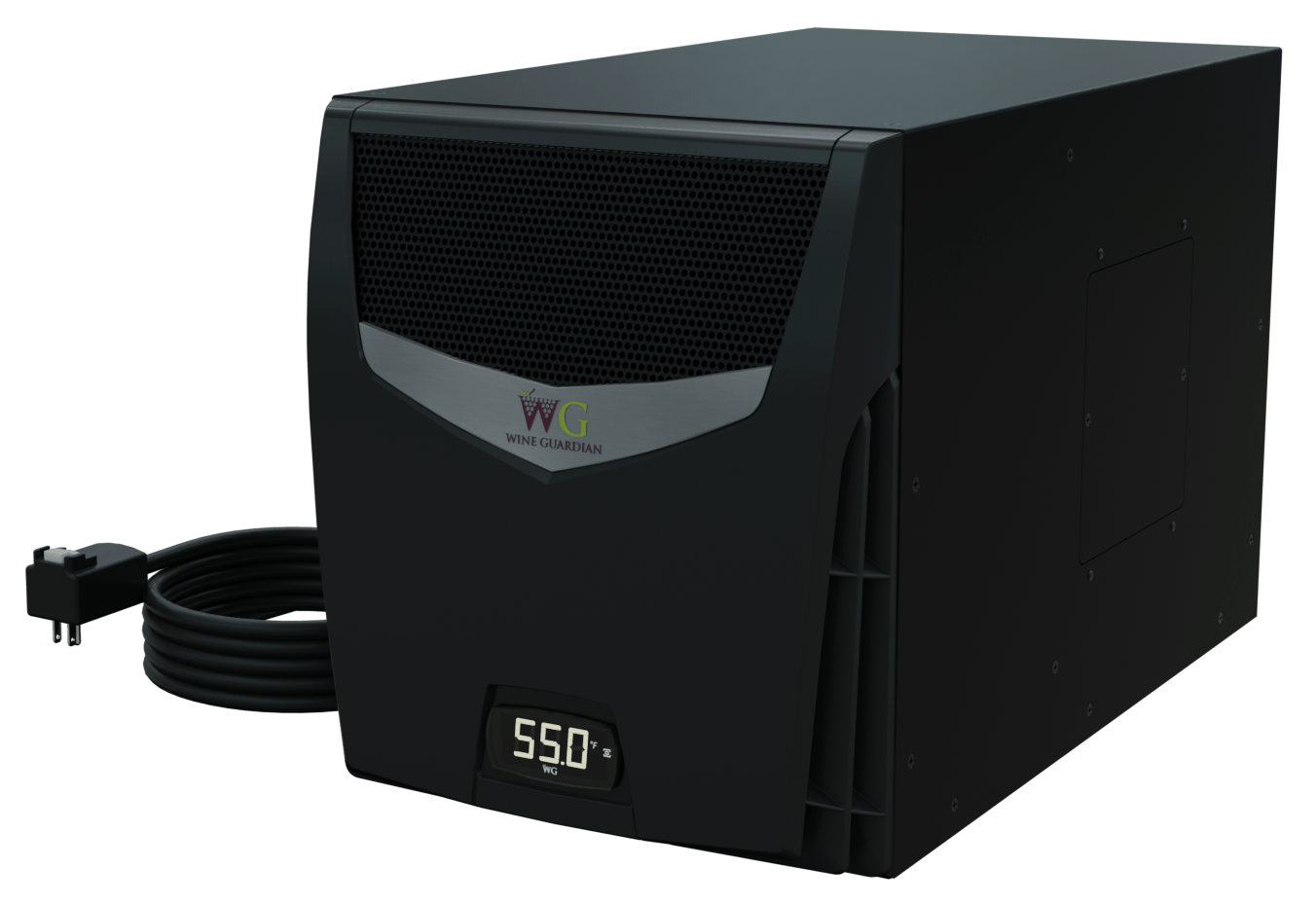

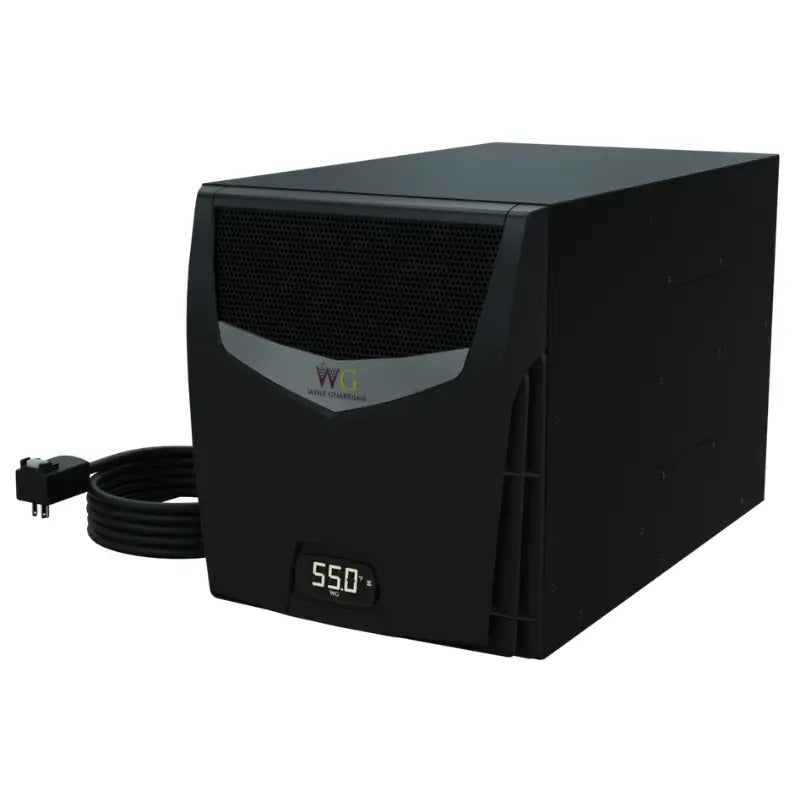

| Plug | Type B, factory-installed cord on the condenser side |
| Dimensions & weight | |
| Chassis L × W × H, lb | 27.6 × 14.1 × 15.75 in, 58 lb |
| Wall opening | 14½ × 16¼ in maximum, stud to stud |
| Controls and sound | |
| Controller | Interface on the face of the unit; Bluetooth and NFC through the Carel Controlla app |
| Sensors | Combined temperature and humidity sensor behind the evaporator grille |
| Saved set points | Four, chosen in the app |
| Humidifier | Connection for an optional Wine Guardian freestanding humidifier 99H0174-21; default humidity set point 30% RH |
| Sound, cellar side | 49.5 dBA at 6 ft from the supply air grille |
| Sound, condenser side | 53 dBA at 6 ft |
| Construction and approvals | |
| Condensate | Internal re-evaporation loop; drain tube plugged at the factory |
| Protections | Condensate overflow switch, loss-of-charge switch, auto-reset high-pressure switch |
| Chassis | Aluminum, powder coated; internal sound insulation |
| Agency approval | ETL to UL 60335-2-40, CSA and IEC |
| Assembly | Assembled in the USA |
| Warranty | |
| Warranty service | Through Wine Guardian |
After you buy
Warranty, returns and help
Wine Guardian warranty: 25 months parts
Warranty service is handled directly by Wine Guardian. We help you find your model, serial number and purchase documents. Standard: 25 months parts and 13 months labor from the original invoice date. Platinum (optional upgrade): 25 months parts and labor, plus the compressor, evaporator coil and condenser coil covered for 61 months (parts only).
Ask us for a free copy of the warranty before you buy.
Free cancellation for 24 hours
Cancel free within 24 hours of placing your order, custom and made-to-order items included: your card is not charged. After 24 hours and before the order ships, a standard order can still be cancelled for 3%, the card-processing fee the payment processor keeps on a refunded payment. Custom and made-to-order items go into production after 24 hours and cannot be cancelled.
30-day returns, unopened
Return an unopened, uninstalled item within 30 days of delivery for a refund or store credit. Contact us first: ship nothing back until we send you an RMA number with the return instructions. A 25% restocking fee applies to returns and exchanges; there is no fee when an item arrives damaged, is defective or the wrong item was sent.
Questions? 1 (800) 260-1712Monday to Friday, 9AM to 9PM EST
Frequently asked questions
TTW01B Sentinel Through-The-Wall questions
Should I buy the Wine Guardian TTW01B Sentinel or the TTW01B Classic?
Buy the Sentinel if you want a humidity sensor and a humidifier connection as well as temperature control, and the Classic if temperature control alone is enough. Both are rated at 1,440 BTU/h at 75°F. The Sentinel also re-evaporates its condensate inside the unit, while the Classic needs a drain line, and it runs at 49.5 dBA against the Classic's 51.9 dBA.
Is the Wine Guardian TTW01B Sentinel big enough for my wine closet or small cellar?
It is big enough when the cellar's heat load fits 1,440 BTU/h at 75°F condenser air. Wine Guardian sizes the Through-the-Wall B series by heat load, so glass, insulation and the room behind the wall decide the answer. At 90°F condenser air the TTW01B gives 1,070 BTU/h and at 125°F 830 BTU/h. Compare the cooling units for cellars up to 1,200 cubic feet if the load is higher.
Where does the Wine Guardian TTW01B Sentinel exhaust its heat?
The TTW01B Sentinel exhausts its heat from the condenser end into the room on the other side of the wall, and that air can be 20°F warmer than the air entering it. The Sentinel is not rated for an exterior wall, so it goes through an interior wall. Wine Guardian offers an optional duct collar kit for carrying the warm air away, and a mechanical room next door makes ducting easier.
How quiet is the Wine Guardian TTW01B Sentinel?
The TTW01B Sentinel is rated at 49.5 dBA on the cellar side, measured six feet from the supply air grille. The condenser side, which faces the room behind the wall, is rated at 53 dBA at six feet. The Sentinel carries internal sound insulation, and it is quieter than the TTW01B Classic at 51.9 dBA and louder than the TTW01B Defender at 47.9 dBA.
What warranty comes with the Wine Guardian TTW01B Sentinel?
Wine Guardian's Standard Warranty covers the TTW01B Sentinel for 25 months on parts and 13 months on labor from the date of original invoice. Labor is reimbursed only when a Wine Guardian representative authorizes it before work starts. Warranty service runs through Wine Guardian, which manufactures the unit.
Does the Wine Guardian TTW01B Sentinel control humidity?
The TTW01B Sentinel reads humidity with its combined temperature and humidity sensor, and it adds moisture only with an optional Wine Guardian freestanding humidifier connected to it. The controller then runs temperature and humidity together. The default humidity set point is 30% RH and is changed in the app. Humidifier control works between 35°F and 75°F in the cellar.
Does the Wine Guardian TTW01B Sentinel need a drain line?
No drain line is needed as shipped: the Sentinel re-evaporates its condensate inside the unit, and its drain tube comes plugged. Wine Guardian recommends an external drain with a humidifier or in high-humidity rooms. A condensate overflow alarm shows when one is needed. The field drain kit has 6 ft of clear tubing and a barbed fitting and runs to a floor drain or condensate pump.
What should I check if a through-the-wall unit leaks water?
Check the humidity load and the leveling first. A leaking through-the-wall unit is a service question owners send us about this line. Wine Guardian's manual and brochure point to three causes: more condensate than the unit can re-evaporate, from high humidity, a humidifier or a weak vapor barrier; a unit that is not level; and a blocked or plugged drain tube. Its fix for the first is an external drain line.
Which Wine Guardian model replaces the TTW009?
Wine Guardian states on its TTW009 page that the unit is being replaced with the TTW01B Sentinel. Both are self-contained through-the-wall units for an opening of up to 14½ in by 16¼ in, stud to stud. The TTW01B Sentinel chassis is 27.6 in long against the TTW009's 25 in, so check the depth on both sides of the wall. It adds a humidity sensor, condensate re-evaporation and Bluetooth and NFC controls.
What does installation of the TTW01B Sentinel involve?
Installation means cutting an opening of up to 14½ in by 16¼ in between the studs of an interior wall, fastening the EasyMount sleeve to the studs, sliding the unit in and sealing the joint. The unit needs a dedicated 120 V circuit and an outlet within 5 ft, outside the cellar, connected by a licensed electrician. Wine Guardian's manual calls for qualified personnel familiar with local codes.
Show all (10)Show less
