Best Ductless Wine Cellar Cooling Units: Wine Guardian Split Models Compared (2026)

What Is a Ductless Split Wine Cellar Cooling Unit?

A ductless split wine cellar cooling unit is a two-piece refrigeration system: a fan-coil mounted in or on the wine room, and a separate condensing unit installed elsewhere, joined only by refrigerant lines and a control cable. No ducts, no plenums and no grille-to-grille duct runs are involved anywhere in the installation.

The fan-coil holds the evaporator and the blower. It pulls cellar air across a cold coil, drops the air temperature, and pushes it back into the room. The compressor and the condenser coil, which are the two components that make noise and reject heat, sit in the condensing unit somewhere the heat and the sound do not matter.

That is the whole idea. A self-contained unit keeps every component in one cabinet and has to dump its heat into a space directly behind or beside the cellar. A ducted system moves conditioned air through insulated duct. A ductless split moves refrigerant instead of air, which is why it fits cellars where neither of the other two configurations physically works.

How the two halves work

Fan-coil inside, condenser somewhere else

The fan-coil is the only piece in the wine room. Wine Guardian rates its ductless fan-coils at 140 CFM to 190 CFM of airflow with fan motors of 75 W to 85 W, per Wine Guardian published specifications, 2026. The condenser carries the compressor and a 275 CFM to 375 CFM condenser fan, and it is the half that has to be able to reject heat freely.

Why Do Buyers Choose a Ductless Split for a Wine Room?

Buyers choose a ductless split for four reasons: there is no adjacent space that can absorb the cellar heat, there is no route for ductwork, the compressor has to be out of earshot, or the cellar is glass and no equipment may be visible. Any one of those rules out the simpler configurations.

The first reason is the most common and the least understood. A self-contained through-the-wall unit exhausts its heat into whatever room sits behind the cellar wall, and that room has to be able to take it. A closet, a finished bar, a sealed mechanical chase or a small pantry usually cannot. A ductless split moves that heat load to a condenser you can put in a garage, a utility room, a basement mechanical space or outdoors.

What a ductless split gives you that a one-piece unit does not

• The compressor, which is the loudest component in any wine cooling system, never runs inside the wine room.
• The heat leaves the building envelope near the cellar entirely, instead of being handed to the room next door.
• The fan-coil can be small, flat and paintable, so an all-glass wine room stays visually clean.
• The condenser can be serviced without entering the cellar or disturbing the racking.
• No duct chase has to be framed, insulated or fire-stopped through finished construction.

The trade is real, though. You are adding a brazed refrigerant circuit to the project, which means a licensed HVAC contractor, an EPA-certified technician for the refrigerant work, a second electrical circuit for the condenser, and a condensate drain from the fan-coil. Our self-contained versus split comparison covers what that adds to a project.

Which Wine Guardian Ductless Split Models Are Available, and What Do They Cost?

Wine Guardian offers five ductless split wine cellar cooling units across two capacity steps and three mounting styles. The SS018 is the entry model at 2,800 BTU/h. The CS025 and CS050 come in a recessed ceiling version and a flush Wine Wall version, rated at 2,970 BTU/h and 4,300 BTU/h.

Wine Guardian ductless split wine cooling units compared

Rated capacities and prices per Wine Guardian published specifications, 2026. Prices are the published starting configuration and change with options such as low-ambient protection, coated coils and humidification.

Every one of the five shares the same control platform and the same operating envelope. All hold a storage range of 55°F to 58°F to an accuracy of plus or minus 1°F and 10 percent relative humidity, all run on R-134A, all include a coated evaporator coil and a Wireless2Base remote interface controller, and all are ETL listed to UL 1995 and CSA C22.2, per Wine Guardian published specifications, 2026.

Two options change what a unit can do rather than how much it can do. Serving-temperature control takes the setpoint down to 45°F for a display cabinet or a serving wall. An optional humidifier brings the room into a 55 percent to 65 percent relative humidity band. Both are specified at order, not added later, so decide before you request pricing.

How Do You Match a Ductless Split Model to Your Cellar?

Match the model in two steps: get a heat load for the room in BTU/h, then compare it against the unit's net cooling at the air temperature your condenser will actually see. Do not compare against the headline rating, because net capacity drops as condenser inlet air gets warmer.

This is the step most buyers skip and the one that decides whether a ductless split holds temperature in August. A condenser in a conditioned basement sees roughly 70°F air all year. A condenser in an unconditioned attic or a west-facing garage in a hot climate can see 100°F or more on a summer afternoon, and that is exactly when the cellar load peaks.

Net cooling capacity by condenser inlet air temperature (BTU/h)

Net cooling figures per Wine Guardian published specifications, 2026.

Read the table down the column that matches your condenser location. A CS050 in a cool mechanical room delivers 4,300 BTU/h. The same CS050 with its condenser on a hot garage wall delivers 3,500 BTU/h, which is a loss of about 19 percent. If the room needed 3,800 BTU/h, the model that looked right on the spec sheet is now undersized in the only conditions that matter.

Run the room through the cooling calculator below to get a load figure, and read our wine cellar cooling sizing guide for how insulation, glass area, door type and ambient conditions feed that number. A licensed HVAC professional should confirm the final load and the model selection before you order.

What Does a Ductless Split Demand From the Condenser Location and Line Set?

The condenser needs three things: free air in and out, a 208-230/1/60 circuit of its own, and a mounting surface that will not transmit vibration into finished rooms. The line set needs a routed, protected path from that condenser to the fan-coil that a technician can braze, pressure test and evacuate.

Every Wine Guardian ductless condenser ships in the same 34 inch by 12 inch by 26 inch enclosure and weighs 75 lbs to 76 lbs, per Wine Guardian published specifications, 2026. What changes between models is how much air it moves and how much heat it has to shed.

Condenser requirements by model

Per Wine Guardian published specifications, 2026.

The low-ambient row matters more than it looks. If the condenser is going outdoors in a cold climate, the standard unit is not the specification you want. The SS018 with the Xtreme low-ambient option is published down to -20°F, while the CS025 and CS050 with the same option are published down to 30°F. Confirm the winter design temperature for your site with your contractor before choosing an outdoor location.

Installation reality

The line set is what makes this a licensed trade job

Refrigerant lines have to be sized, routed, brazed, pressure tested and evacuated before charging. Wine Guardian publishes the maximum line length and the allowable vertical separation between fan-coil and condenser in the ductless split installation manual, and those limits are model and site specific. Do not assume a distance. Have your contractor confirm it against the manual before the walls close.

Handling R-134A is regulated work. Under the federal refrigerant rules, technicians who open a refrigerant circuit must hold the appropriate certification, which the EPA describes in its Section 608 technician certification program. That is a good reason to have the HVAC contractor on the project before the framing is finished rather than after. Wine Guardian publishes the official documentation set on our split system installation resource page.

Surface, Recessed Ceiling or Wine Wall: Which Ductless Layout Fits Your Room?

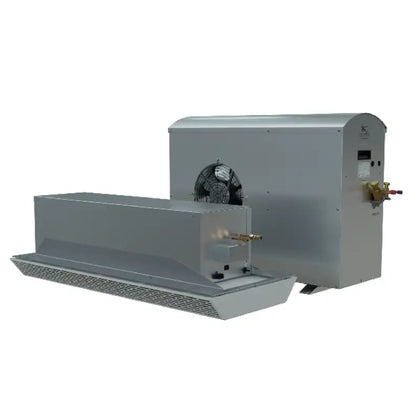

The three Wine Guardian ductless layouts solve three different architectural problems. Surface or through-the-wall mounting on the SS018 suits small rooms with a spare wall. Recessed ceiling mounting on the CS025 and CS050 suits rooms with no usable wall. The Wine Wall versions suit glass displays where nothing may protrude.

Capacity does not change with the layout. A CS025 Wine Wall and a CS025 Ceiling Mount are both rated at 2,970 BTU/h and share the same condenser, so the decision between them is purely about how the room is built and what the finished ceiling has to look like.

Ceiling-mounted in practice

When the ceiling is the only place left

A recessed ceiling fan-coil is commonly selected for wine displays surrounded by living space, and for glass-walled rooms where a wall unit would be visible from three sides. The constraint is structural: the ceiling has to accept a recessed unit between joists, and the condensate line has to run from that ceiling position to a drain. Confirm both with your contractor before you specify a ceiling model.

See a Wine Guardian Split System Explained on Video

The clearest way to understand what you are buying is to see where the two halves go. This Wine Guardian video walks through the split-system architecture, the fan-coil in the room, the remote condenser, and the control interface that ties them together.

When Is a Ductless Split the Wrong Answer for a Wine Cellar?

A ductless split is the wrong answer when the room load exceeds 4,300 BTU/h, when nothing in the cellar may be visible at all, when the budget cannot absorb licensed refrigerant work, or when a simple exhaust path into an adjacent conditioned room already exists and is adequate.

Where a ductless split stops being the right configuration

Oversizing is its own failure mode and it is worth naming. A ductless split that is far larger than the room needs satisfies the thermostat quickly, short cycles, and never runs long enough to manage moisture properly, which shows up as humidity swings rather than as a temperature complaint. Undersizing simply fails to hold 55°F on the hottest days. Neither is fixed by adjusting the controller.

The realistic shortlist

Ductless earns its place in a narrow, well-defined band

In practice a ductless split is the right call for small and mid-sized wine rooms, glass displays and wine walls up to about the CS050 capacity step, where there is no adjacent space to exhaust into and no route for duct. Outside that band, another configuration is usually simpler and cheaper. Comparing against a through-the-wall unit first is a reasonable sanity check, which our split versus through-the-wall head-to-head covers.

What Should You Ask For in a Ductless Split Quote?

A useful ductless split quote names the model, the mounting layout, the condenser location and its design air temperature, the options, and who is doing the refrigerant work. A quote that lists only a model number and a price is not enough information to compare against another quote.

1. Calculate the room load first. Run the cellar through the cooling calculator with real dimensions, insulation values, glass area and door type, then have a licensed HVAC professional confirm the figure. Every later decision depends on this number.
2. Fix the condenser location before choosing the model. Write down the space the condenser will occupy and the warmest air temperature it will see there. Read the net cooling table at that temperature, not the headline rating, and choose the model that still covers the load.
3. Choose the mounting layout from the architecture. Surface or through-the-wall for a small room with a spare wall, recessed ceiling for a glass room with no wall to give up, Wine Wall for a display where the grille has to disappear into the ceiling.
4. Decide the options at quote time. Serving-temperature control to 45°F, the optional humidifier for a 55 percent to 65 percent band, Xtreme low-ambient protection for an outdoor or cold-space condenser, and coated coils. These are ordered with the unit, not retrofitted.
5. Ask who performs the refrigerant work. Confirm that the installing contractor is licensed for the work and that the technician opening the circuit holds the required refrigerant certification. Ask for the line route and the condensate path to be shown on the drawings.
6. Confirm electrical and drainage separately. The fan-coil runs on 115/1/60 and the condenser on 208-230/1/60, and the fan-coil needs a 0.5 in condensate connection to a drain. A licensed electrician and your contractor should confirm circuits and code compliance for your site.
7. Request the quote with all of it in writing. Send the load figure, the condenser location and design temperature, the layout, and the option list together. That is what turns a price into a comparable specification.

If you want that checked before you commit, send it to us through the price quote request and we will work through the model options with you against the published specifications. Browse the full range in the Wine Guardian ductless split wine cooling systems collection.
