7 Glass Wine Cellar Problems and How to Solve Them: Heat, Condensation, UV and Noise (2026)

Why Do Glass Wine Cellars Have More Problems Than Insulated Cellars?

Glass wine cellars have more problems than insulated cellars because glass insulates poorly, transmits light, carries sound, and cannot hold a vapor barrier. An insulated cellar wall is commonly built to R-19 or higher; a double-pane insulated glass unit is roughly R-2 to R-4, and a single pane is close to R-1. Every other problem in this guide follows from that gap.

The U.S. Department of Energy explains how low-emissivity coatings, gas fills, and multiple panes reduce heat transfer through glazing (DOE Energy Saver, windows). The same physics applies to a wine room wall: better glazing means a smaller cooling load, fewer condensation events, and less UV on the bottles. This article covers problems in glass rooms already built or being planned; for the construction sequence, see how to build a glass wine cellar.

The seven glass wine cellar problems, with the symptom you notice and the fix that works

Where glass rooms go

Most glass cellars sit in living space, which multiplies the problems

A basement cellar with a glass door has one glass surface facing a cool hallway. A dining room glass cellar has three or four glass surfaces facing a 72°F to 78°F room with people, lights, and cooking heat, and any noise is heard at the table. See the dining room glass wine cellar guide for the design side, and compare an underground wine cellar, where the earth does most of the insulating.

What Causes Heat Gain, Condensation and UV Damage in a Glass Wine Cellar?

Heat gain, condensation, and UV damage in a glass wine cellar all come from the glass itself: it conducts room heat inward, its room-side surface cools toward the cellar temperature until moisture forms on it, and it passes visible and ultraviolet light onto the bottles. Each problem has a distinct symptom and a distinct fix.

Problem 1: Heat gain through the glass

• Cause: conduction through low R-value glazing, plus solar gain from any window or skylight in the line of sight.
• Symptom: the cellar holds 55°F overnight but drifts past 60°F in the afternoon, and the unit runs continuously on warm days.
• Fix: dual-pane low-e insulated glass, no direct sun on the panels, and every square foot of glass counted in the load.
• Cooling implication: a unit sized for insulated walls will be short of capacity. Enter the glass area in the cooling calculator before choosing a model.

Problem 2: Condensation and fogging on the glass

• Cause: the room-side glass surface cools toward the set point. A 75°F room at 50 to 55 percent relative humidity has a dew point in the mid to high 50s°F, so a single pane at 55°F sweats.
• Symptom: fog, droplets, or a water line at the bottom of the panel in humid weather, then staining on the frame or floor.
• Fix: insulated glass units to keep the room-side surface warm, a set point of 55°F to 58°F rather than colder, and room humidity managed by the house HVAC.
• Cooling implication: overcooling makes it worse. Control precision matters more than raw capacity; Wine Guardian units hold ±1°F and, with the optional humidifier, 55% to 65% relative humidity.

Glass specification

Dual-pane, low-e, laminated: what each layer does

A dual-pane insulated glass unit cuts conduction and keeps the room-side surface warmer, which addresses heat gain and condensation together. A low-e coating reflects radiant heat. A laminated pane with an interlayer, or a dedicated UV-filtering coating, blocks most ultraviolet light. Tempered glass is a safety requirement, not a thermal one. Specify the thermal and UV performance in writing, because a frameless look is often quoted in single-pane tempered glass by default.

Problem 3: UV and light exposure

• Cause: daylight and display lighting pass through clear glass onto the bottles; ultraviolet and strong visible light cause the fault known as lightstrike.
• Symptom: faded labels on the bottles nearest the glass and off aromas in wines in clear or light green bottles.
• Fix: laminated or UV-filtering glass, a display placed away from windows, and LED lighting on a timer or occupancy sensor.
• Cooling implication: lighting adds heat. LEDs add far less than halogen lamps, and a timer cuts both the light dose and the load. See the wine cellar lighting guide.

Why Does a Glass Wine Cellar Cooling Unit Run Constantly or Sound Too Loud?

A glass wine cellar cooling unit runs constantly when it was sized for a solid-wall room, and it sounds too loud when the compressor sits inside or beside the display. Both are configuration problems: the first is fixed by sizing for the glass area, the second by a split system that leaves only a low-noise fan-coil in the room.

Problem 4: Undersized cooling

• Cause: the unit was chosen by room volume or a rule of thumb written for insulated cellars, often with the condenser in a hot attic or closed closet.
• Symptom: the unit never cycles off, the cellar cannot reach 55°F on warm afternoons, and the evaporator may ice over.
• Fix: re-run the load with the glass area, glazing type, lighting, and the warmest condenser ambient, then step up in capacity or change configuration.
• Cooling implication: in the Wine Guardian wine wall line the step is from the CS025 at 2,970 BTU/h to the CS050 at 4,300 BTU/h; with a mechanical space nearby, the ducted D025 is rated 4,300 BTU/h at 80°F ambient for roughly 250 to 2,000 cubic feet. A licensed HVAC professional should confirm the selection.

Problem 5: Cooling noise in a display room

• Cause: glass carries sound rather than damping it, so a compressor mounted in or against the display is heard in the room it faces.
• Symptom: a hum or fan tone at the dining table every time the unit cycles on.
• Fix: a configuration that keeps the compressor out of living space: a ceiling or wine wall split with a remote condenser, or a ducted unit with only grilles in the display.
• Cooling implication: Wine Guardian publishes no single decibel rating for its ductless splits because the compressor is remote and the fan-coil has none inside. A through-the-wall unit such as the TTW01B Sentinel is rated as low as 49.5 dB at 6 feet, with the compressor in the wall.

Placement

A ceiling-recessed fan-coil keeps the display clean and quiet

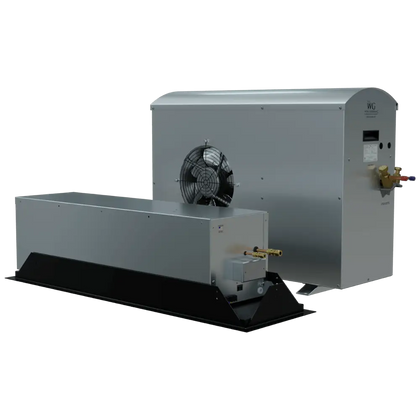

The CS025 Ceiling Mount recesses between standard joists with a paintable grille; the CS025 Wine Wall mounts flush with the wine wall ceiling with slot diffusers that send conditioned air down the glass. In both, the matched condenser installs separately and a licensed HVAC contractor runs the refrigerant lines. Every configuration is compared on the wine wall cooling systems page.

How Do Door Seals, Humidity and Racking Cause Problems in a Glass Wine Cellar?

Door seals, humidity, and racking cause glass wine cellar problems by letting room air in, letting cellar moisture out, and putting bottles against the warmest surface in the room. A glass door without a full gasket is the single most common leak, and racking mounted on the glass puts wine where the temperature swings most.

Problem 6: Door seal leakage

• Cause: frameless glass doors are often fitted with a minimal sweep and no gasket, so room air infiltrates continuously and the door is left ajar after visits.
• Symptom: a cold draft at the threshold, sweating or frost along the door edge, and slow recovery after the door is opened.
• Fix: a perimeter magnetic or compression gasket, a drop seal or sweep, a threshold, and a self-closing hinge or closer.
• Cooling implication: infiltration brings heat and humidity together, so a leaky door shows up as coil condensation and longer run times.

Problem 7: Humidity and racking conflicts

• Cause: a small glass room has little mass to buffer humidity, and bottles racked against the glass sit in the warmest, brightest spot in the cellar.
• Symptom: dry corks and seepage in winter, or bottles and labels sweating against the glass in summer.
• Fix: racking held off the glass so air can wash down the panel, a unit with a humidity option, and a humidifier where house air is dry; Wine Guardian's optional humidifier holds 55% to 65% relative humidity.
• Cooling implication: the Wine Wall models place supply and return slot diffusers in the grille so conditioned air moves down the wall instead of pooling at the ceiling.

Humidity

Target 55% to 65% inside the glass, and control the room outside it

Corks want moist air inside the cellar; the room-side glass wants dry air so it does not sweat. The practical answer is a humidifier option inside and the house HVAC holding the room at normal comfort humidity. The humid climate wine cellar case study shows what happens when the room side is left uncontrolled.

How Much Cooling Does a Glass Wine Cellar Need?

A glass wine cellar needs more cooling than an insulated cellar of the same volume, and how much more depends on the glass area, the glazing type, the sun exposure, the lighting, and the temperature of the room the glass faces. There is no safe percentage rule; the load has to be calculated with the glass entered as glass.

Five inputs drive the answer: the glass area and glazing type; the room-side temperature, which can sit above 75°F in a summer dining room; direct sun on any panel; lighting wattage and hours; and the ambient at the condenser, because rated capacity falls as the condenser gets hotter. The CS050 Wine Wall, for example, delivers 4,300 BTU/h at a 70°F condenser inlet and 3,500 BTU/h at 100°F, per Wine Guardian published specifications, 2026.

Which Wine Guardian Cooling Systems Are Commonly Selected for Glass Wine Cellars?

Glass wine cellars are commonly cooled with a Wine Guardian ceiling mount or wine wall ductless split, which puts only a slim fan-coil grille in the display, or with a ducted D025 or D050 when a mechanical space is within reach. Through-the-wall units are usually reserved for glass rooms with a solid wall to an adjoining space.

Wine Guardian systems for glass wine cellars and wine walls

Capacities, dimensions, and airflow per Wine Guardian published specifications, 2026. Starting prices from Wine Guardian Dealer, August 2026. Every model holds 55°F to 58°F with ±1°F control; the optional humidifier reaches 55% to 65% relative humidity.

All four carry Wine Guardian's standard warranty of 2 years parts and 1 year labor, with a Platinum option. The splits need refrigerant lines between the fan-coil and the matched condenser, so a licensed HVAC contractor must install them, which also keeps the warranty valid. The D025 needs a duct run to a space that can absorb its exhaust heat. Larger Pro Series and water-cooled options for commercial glass rooms are available when you request a quote.

Real installations

Two glass display case studies

The glass wine wall case study covers a floor-to-ceiling display in a modern home; the dining room glass wine cellar case study covers a four-sided glass room in living space. For a garage-side condenser location, the garage wine cellar guide covers the heat and clearance questions.

How Do You Troubleshoot a Glass Wine Cellar That Cannot Hold Temperature?

Troubleshoot a glass wine cellar that cannot hold temperature by checking the building before the equipment: log the temperature swing, inspect the glass and door seals, measure the room-side conditions, check the condenser location, and only then compare the unit's rated capacity with a load that includes the glass. Most failures resolve at one of the first four steps.

1. Log the temperature for three days. Record cellar temperature hourly with a data logger. A swing that follows the sun or the dinner hour points to heat gain; slow drift after the door opens points to seals.
2. Identify the glass. Confirm whether the panels are single-pane, dual-pane, or low-e, and whether any panel gets direct sun.
3. Check the door and the seals. Hold a tissue at the threshold and hinge edge with the door closed; movement means infiltration. Add a gasket, sweep, and closer before touching the unit.
4. Measure the room side. Note room temperature and humidity beside the glass on a warm evening. If the dew point is above the glass surface temperature, condensation is a room-humidity problem.
5. Inspect the condenser location. A condenser in a hot attic, a closed closet, or without clearance loses capacity. Compare the location with the published net cooling at that inlet temperature.
6. Compare rated capacity with a glass-inclusive load. Run the cooling calculator with the glass area entered. If the load exceeds the rating at your ambient, plan a capacity step or configuration change and have a licensed HVAC professional confirm it.
7. Request a review of the shortlist. Send the logger data, glass spec, and condenser location through wine cellar design support for a model recommendation.
