Wine Guardian CS025 Wine Wall Cooling Unit
THINKING ABOUT THE PERFECT WINE CELLAR? Save time and money: get expert advice before you buy
Call our Wine Cellar Specialist at 1 (800) 260-1712 for FREE CONSULTATION!
The Wine Guardian CS025 wine wall cooling system is a ductless split wine cellar cooling unit that Wine Guardian publishes at 400 to 2,755 BTU for wine walls and glass displays of 100 to 1,200 cubic feet. Wine Guardian rates ductless split cooling capacity at 80°F ambient, and states that the maximum capacity for this system is 2,755 BTU/H.

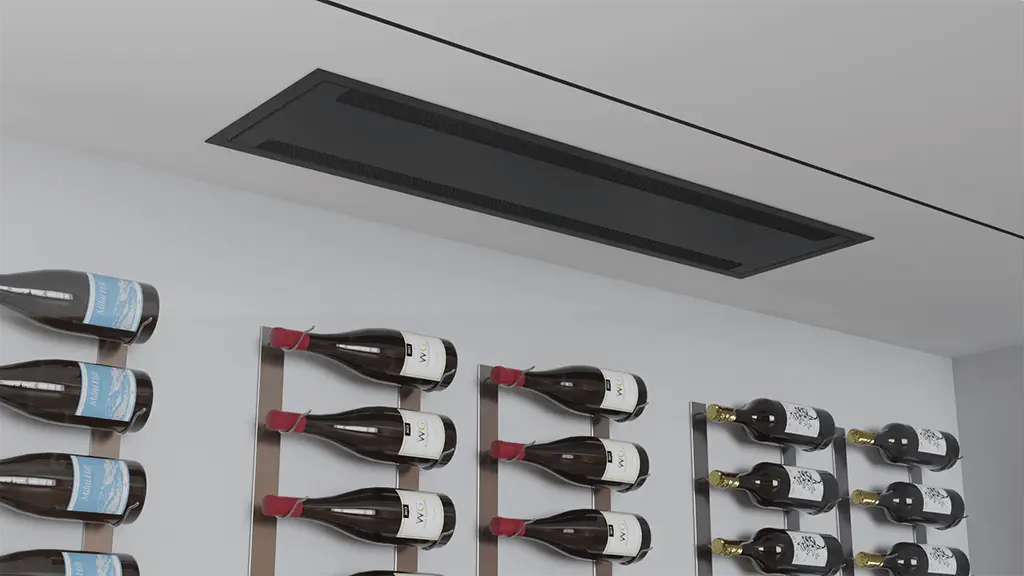

The CS025 Wine Wall is built for wine walls and glass-front displays: its slim grille mounts completely flush with the ceiling so no bulky equipment is visible, and integral supply and return slot diffusers distribute conditioned air evenly down the wall. The condenser installs separately, in a space with enough air volume or ventilation to carry its heat away, and the paintable aluminum grille blends into the decor of the room. It holds long-term storage conditions of 55°F to 58°F, and the optional serving-temperature package extends the range the system controls to, which Wine Guardian publishes as 42°F to 64°F.
Every system ships with a coated evaporator coil, a Wireless2Base remote interface controller, an aluminum chassis with corrosion-resistant, commercial-grade components, and Wine Guardian fail-safe protection; an optional humidifier reaches 55% to 65% relative humidity. As an authorized Wine Guardian dealer we list the CS025WW with full manufacturer specifications, and it is one of the ductless split wine cooling systems in the Wine Guardian line. Installation requires a qualified contractor, and final sizing should be confirmed with the Wine Guardian sizing calculations and a licensed HVAC professional.
See how a Wine Guardian wine wall cooling system is installed and how it conditions an open wine wall or display. A built example, with the glazing load and hidden cooling worked out on a real glass wine wall, follows the same decisions through one project.
Questions about fit? Call our specialists at (800) 260-1712.
The CS025 Wine Wall suits a glass wine wall or open display of 100 to 1,200 cubic feet where the cooling grille has to sit flush in the ceiling and stay visually quiet. Because glass carries far more heat than an insulated wall, a heavily glazed display reaches the top of that band at a smaller volume, and the glazing and vapor barrier have to be settled before the unit is sized. A glass display also brings condensation, UV and noise questions an insulated cellar does not, all of them set out in a breakdown of seven glass cellar problems and the fix for each.
The CS025 Wine Wall pairs a flush-mounted fan-coil with a separately located Wine Guardian condenser, so a wine wall gets full cellar-grade climate control without ductwork or visible equipment. The table below translates each feature into what it means for your wine wall.
| Feature | What it means for your cellar |
|---|---|
| Ductless split design | Separate fan-coil and remote condenser install in different locations with no ductwork at all, fitting wine walls where ducts are impossible. |
| Slim flush-ceiling design | The low-profile grille mounts completely flush with the wine wall ceiling, so no bulky equipment is visible in the display. |
| Integral slot diffusers | Supply and return slot diffusers in the grille distribute conditioned air evenly down the wall. |
| Paintable aluminum grille | The all-aluminum grille paints to match the decor of the wine wall and removes without tools for service. |
| Perfectly paired condenser | The condensing unit is engineered and manufactured by Wine Guardian to work specifically with the fan-coil for reliable matched performance. |
| Coated evaporator coil | Protects the evaporator side against corrosion for durable performance over a long service life. |
| Wireless2Base remote interface controller | Monitors temperature and humidity continuously and corrects conditions before your wine is affected; place it outside the wine space if preferred. |
| 400 to 2,755 BTU capacity band | Wine Guardian publishes 400 to 2,755 BTU for this unit, rated at 80°F ambient, which covers wine walls of 100 to 1,200 cubic feet. |
| Precision control | Holds 55°F to 58°F within plus or minus 1°F. The optional serving-temperature package carries a published option range of 42°F to 64°F, and an optional humidifier reaches 55% to 65% relative humidity. |
| Low-ambient protection | Low Ambient Protection guards the system below 40°F. Xtreme low ambient protection is offered as a separate option, and Wine Guardian attaches no condenser inlet air temperature figure to it, so confirm cold-weather limits with Wine Guardian and a licensed HVAC professional. |
| Field-serviceable, tool-free access | The grille and panels remove without tools for in-field service, so the unit does not return to the factory. |
| Hinged grille for one-person installation | Wine Guardian's hinge design lets a single installer set and drop the grille during installation and service. |
Built-in protection: remote air sensing checks conditions continuously and adjusts before temperature or humidity drift can affect the collection.
Wine Guardian does not publish a decibel rating for the CS025 Wine Wall, so no dB figure is claimed here. What can be stated is the architecture: the compressor sits in the remote condenser, away from the wine wall, and only a low-noise fan-coil remains in the ceiling of the display.
The quiet comes from the split architecture rather than from sound insulation: the noisy condenser installs separately, even outdoors, while the fan-coil sits flush in the wine-wall ceiling, so no compressor runs inside the wine space.
Wine Guardian publishes a cellar size of 100 to 1,200 cubic feet and a capacity of 400 to 2,755 BTU for the CS025 Wine Wall, rated at 80°F ambient. That places it among cooling units for cellars up to 1,200 cubic feet. Published ranges assume typical construction, so amount of glass, insulation values and residential versus commercial use all move the real requirement; confirm final sizing with the Wine Guardian sizing calculations and a licensed HVAC professional.
Accessory availability and pricing are confirmed on each live product page. A ductless split uses no ductwork, so no duct collars or flexible ductwork are required.
The choice inside the Wine Guardian ductless split line comes down to where the evaporator can sit and how much volume the space holds. All three units below use the same matched remote condenser arrangement.
| Decision factor | CS025 Wine Wall (this unit) | CS025 Ceiling Mount | CS050 Wine Wall |
|---|---|---|---|
| Cellar volume Wine Guardian publishes | 100 to 1,200 cubic feet | 100 to 1,200 cubic feet | 250 to 2,200 cubic feet |
| Cooling capacity rated at 80°F ambient | 400 to 2,755 BTU | up to 2,755 BTU/H | 1,000 to 4,050 BTU |
| Where the evaporator sits | Flush in the wine wall ceiling, slim visible grille | Between standard ceiling joists, above the finished ceiling | Flush in the wine wall ceiling, slim visible grille |
| Evaporator size and weight | 44.19 in x 12.44 in x 11.43 in, 43 lbs | 43.25 in x 18.25 in x 13.25 in, 48 lbs | 44.19 in x 12.44 in x 11.43 in, 43 lbs |
Best for: a wine wall or glass display of 100 to 1,200 cubic feet where the grille has to sit flush in the wine wall ceiling and stay visually quiet. Not ideal for: a room whose ceiling must stay completely blank, where the CS025 Ceiling Mount hides the evaporator between standard joists at the same 100 to 1,200 cubic feet, or a space above 1,200 cubic feet, where the CS050 Wine Wall covers 250 to 2,200 cubic feet.
Talk to us about sizing the CS025 Wine Wall for your display or wine wall. This guidance is general; final sizing, mounting, and electrical requirements should be confirmed with Wine Guardian documentation and a licensed HVAC professional.
