What Does a Wine Cellar Refrigeration Expert Actually Do for Your Project?
A wine cellar refrigeration expert turns your room dimensions, glass area, insulation plan and mechanical space into a heat load figure, a cooling configuration that fits the building, a condenser and duct plan, a humidity plan, an electrical scope for your electrician, and a matched Wine Guardian model. Through this dealer that consultation is free and happens by phone, email and shared drawings. What it is not: on-site engineering sign-off or installation. Your licensed HVAC professional and electrician install and commission the system.
Below: what a wine cellar cooling expert consultation includes, what you bring, how the heat load calculation drives the equipment, who installs the unit, what it costs, who should use an expert versus planning alone, the questions to ask, red flags, and FAQs.
A wine cellar refrigeration expert does six things: calculates the heat load, picks the configuration the building allows, places the condenser and plans the ducting, plans humidity control, writes an electrical scope for the electrician, and matches a model such as the D025 (4,300 BTU/h, from $6,043) or the TTW01B Sentinel (from $4,069). You bring dimensions, glass area, photos, the insulation plan and the location of any mechanical space. The dealer consultation is free; installation is by your own licensed HVAC professional, and nothing in it replaces a professional's on-site verification.
Working with a wine cellar refrigeration expert
- Six deliverables: heat load figure, configuration fit, condenser and duct plan, humidity plan, electrical scope, equipment match
- What you bring: interior dimensions, glass type and area, photos, insulation and vapor barrier plan, location of mechanical space and the nearest exterior wall
- Consultation cost: free through Wine Guardian Dealer, by phone, email and shared drawings
- Who installs: your licensed HVAC professional and electrician; the dealer does not install or sign off on site
- Typical equipment range: through-the-wall from $3,039, ducted from $6,043, ducted split from $8,329 (Wine Guardian Dealer, 2026)
What Is Included in a Wine Cellar Cooling Expert Consultation?
A wine cellar cooling expert consultation through this dealer produces six deliverables: a heat load figure in BTU/h, a configuration recommendation, a condenser placement and ventilation or duct plan, a humidity plan, an electrical scope you hand to your electrician, and a matched Wine Guardian model with alternatives. Each one is written down so your contractor and HVAC professional work from the same page.
What a wine cellar refrigeration expert delivers and who acts on it
| Deliverable | What it answers | Who acts on it |
|---|---|---|
| Heat load calculation | How many BTU/h the cellar needs at your warmest ambient temperature, allowing for glass, insulation, lighting and door traffic | Expert produces it; your HVAC professional confirms it on site |
| Configuration fit | Through-the-wall, ducted, ducted split, ductless split or water-cooled, based on where heat can go | Homeowner and contractor decide; expert narrows the options |
| Condenser and duct plan | Where the condenser sits, how far the duct runs, where supply and return grilles land | Contractor frames it; HVAC professional installs it |
| Humidity plan | Whether the cellar needs an integrated or freestanding humidifier, and where condensate drains | Expert specifies; plumber or HVAC professional connects it |
| Electrical scope | Voltage, circuit and receptacle location for the unit and any humidifier, taken from the manufacturer specification | Your licensed electrician sizes and installs the circuit |
| Equipment match | The Wine Guardian model whose rated capacity covers the load with margin, plus one alternative | Homeowner orders; dealer provides pricing and documentation |
Deliverables per the Wine Guardian Dealer design support process, 2026. Ratings and electrical data per Wine Guardian published specifications, 2026.
Selection and design guidance, not engineering sign-off
The expert works from your drawings, photos and numbers, which is enough to size and configure a system correctly in most residential cellars, but it is not a licensed professional standing in the room. A licensed HVAC professional should confirm the load, line run, clearances and drainage before anything is ordered, and a licensed electrician should confirm the circuit. The consultation makes those visits shorter, not unnecessary. Start on the wine cellar design support page.
What Information Do You Need to Bring to a Wine Cellar Design Consultation?
Bring interior length, width and ceiling height, the glass type and area, three or four photos, the insulation and vapor barrier plan, the warmest temperature of the room on the other side of the wall, and the location of any mechanical space or exterior wall. With those inputs a wine cellar refrigeration expert can size and configure the system in the first conversation.
The consultation input checklist
- Dimensions: interior length, width and ceiling height, or a dimensioned floor plan.
- Glass: single, double or insulated low-e, and the square footage of glass walls and doors.
- Insulation and vapor barrier: planned R-values and which side the barrier goes on. See the vapor barrier guide.
- Ambient conditions: the warmest temperature of the room, garage, attic or outdoor spot where the condenser might sit.
- Mechanical space: where a ducted unit or remote condenser could live, and its distance from the cellar.
- Photos: the cellar, the wall you would cut through, and the candidate condenser location.
- Use: bottle count, lighting type, door traffic, and whether trades are already engaged.
Glass and ambient temperature change the answer more than volume
Two cellars of 800 cubic feet can need very different equipment. A framed, insulated room beside a 68°F basement may be served by a small through-the-wall unit; the same volume behind a glass wall facing a west-facing living room can need a ducted unit with roughly twice the capacity. That is why the expert asks about glass and ambient temperature before naming models. If the room itself is still undecided, how to build a wine cellar covers the envelope first.
How Does the Heat Load Calculation Decide the Equipment?
The heat load calculation adds up every source of heat entering the cellar, in BTU/h, at the warmest conditions the room will see: conduction through walls, ceiling, floor and glass, plus lighting, door openings and the bottles themselves. The expert then selects a unit whose rated capacity at that ambient temperature covers the load with margin, which is why Wine Guardian rates ducted units at an 80°F condenser inlet.
The cooling load is the rate at which heat must be removed to hold a space at its set point, as defined in the Wikipedia entry on cooling load. A wine cellar targets 55°F and 50 to 70 percent relative humidity, so the gap to the surrounding rooms is larger than in normal air conditioning and insulation and glass dominate the number. Undersizing produces constant running; oversizing produces short cycles and dry air. The sizing guide shows the arithmetic if you want to check the expert's figure.
Wine Guardian models an expert commonly matches to residential heat loads
| Model | Configuration | Rated capacity | Published cellar range | Starting at |
|---|---|---|---|---|
| TTW01B Sentinel | Through-the-wall, self-contained | 1,440 BTU/h nominal | Small to mid-sized cellars | $4,069 |
| D025 | Ducted, self-contained | 4,300 BTU/h at 80°F ambient | About 250 to 2,000 cubic feet | $6,043 |
| D050 | Ducted, self-contained | 6,320 BTU/h at 80°F ambient | About 650 to 3,000 cubic feet | $7,395 |
| DS025 | Ducted split, remote condenser | 3,485 BTU/h | About 250 to 2,000 cubic feet | $8,329 |
Capacities and cellar ranges per Wine Guardian published specifications, 2026. Prices are Wine Guardian Dealer starting prices, August 2026. Cellar ranges assume a well-insulated room; glass and hot ambient conditions reduce them.
Estimate the heat load before the consultation
Enter your cellar dimensions, insulation and glass area to get a first BTU/h estimate, then send the same inputs to the expert so the two figures can be compared.
Featured Wine Guardian Systems
How Does the Process Work From First Contact to an Installed System?
Working with a wine cooling expert through this dealer follows eight steps: submit the cellar details, review the heat load and configuration, receive the written plan, have your HVAC professional and electrician verify it, order the equipment, rough in ducts, lines and power, install and commission, then monitor the first two weeks. A written plan usually follows within a few business days of complete inputs.
- Submit the cellar details. Send dimensions, glass area, photos, insulation plan and the candidate mechanical space through the design support form or by email.
- Review the heat load and configuration options. The expert returns a BTU/h figure and the one or two configurations the building allows, with the trade-offs on noise, ducting and service access spelled out.
- Receive the written plan. Condenser location, duct or refrigerant line route, grille positions, humidity plan, drain path and the electrical scope, plus the matched model and an alternative.
- Have your licensed HVAC professional and electrician verify it. They confirm clearances, line lengths, drainage and the circuit on site. Any change they request goes back to the expert for a revised match.
- Order the equipment. Purchasable models are ordered directly from the product page; Pro Series and cabinet units go through a price quote. Lead times are confirmed at order, not promised in advance.
- Rough in ducts, lines, drain and power before drywall. The contractor frames the wall opening or mechanical space, runs ductwork or line sets, and the electrician installs the dedicated circuit to the specification.
- Install and commission. The HVAC professional sets the unit, connects lines or ducts, checks refrigerant charge where applicable, and runs the system to set point with the door closed.
- Monitor the first two weeks. Log temperature and humidity daily. Short cycling, a unit that never rests, or sweating glass are the signals to call the expert and the installer back.
Why the plan comes before the framing
The most expensive changes on a cellar project happen after drywall: a wall opening in the wrong place, a duct run that has to cross a beam, a condenser with nowhere to exhaust, a receptacle on the wrong wall. The written plan exists so the contractor roughs everything in once. Most of the failures in contractor mistakes in wine cellars trace back to a cooling decision made after the room was built.
Who Installs Wine Cellar Cooling Units, and What Does the Dealer Do?
Wine cellar cooling units are installed by a licensed HVAC professional or refrigeration contractor, with a licensed electrician providing the circuit and a general contractor handling framing, insulation and finishes. The dealer's role is selection, configuration and documentation; it does not install, and the manufacturer warranty and any service claims run through Wine Guardian.
Who does what on a wine cellar cooling project
| Role | Responsible for | Typical involvement |
|---|---|---|
| Wine cellar refrigeration expert (dealer) | Heat load, configuration, condenser and duct plan, humidity plan, electrical scope, model match, documentation | Remote, free, from first contact through commissioning questions |
| Licensed HVAC or refrigeration professional | On-site verification, setting the unit, ductwork or refrigerant lines, charge, drainage, start-up | Required for split systems; strongly recommended for ducted and through-the-wall |
| Licensed electrician | Dedicated circuit, receptacle or hard-wire connection to the manufacturer specification | One visit at rough-in, one at final |
| General contractor or builder | Framing, wall opening or mechanical space, insulation, vapor barrier, finishes, coordination | Whole project; receives the written plan |
| Homeowner or collector | Inputs, decisions between configurations, ordering, first-two-weeks monitoring | Throughout |
Builders, designers and HVAC firms get the same support at trade terms
Contractors and designers who specify Wine Guardian regularly can work with the same expert on every job through the Pro Trade Program, which covers trade pricing and documentation for repeat projects. The deliverables are the same, written for the spec sheet and the electrician rather than the homeowner. Every configuration the expert might recommend is in the wine cellar cooling units collection.
What Does It Cost to Work With a Wine Cellar Refrigeration Expert?
The consultation through Wine Guardian Dealer is free, with no design fee and no obligation to order. Project costs are the equipment, starting at $3,039 for a through-the-wall unit and $6,043 for a ducted unit, plus your HVAC professional's and electrician's labor, which varies by configuration and region. Independent wine cellar consultants and design firms typically charge a separate design fee.
Where the money goes on a residential wine cellar cooling project
| Cost item | Typical range | Notes |
|---|---|---|
| Dealer consultation and written plan | Free | Remote; includes model match, alternatives and documentation |
| Cooling equipment | $3,039 to $12,981 for purchasable models | Through-the-wall lowest, ducted split highest; Pro Series by quote |
| HVAC or refrigeration labor | Varies by configuration and region | Split systems cost the most to install because of refrigerant lines; through-the-wall the least |
| Electrical | Varies by distance from panel | A dedicated circuit to the manufacturer specification |
| Ductwork, grilles, line sets, drain | Varies with run length | Insulated flexible duct and duct collars are sold as accessories |
| Humidifier (if specified) | $1,307 to $1,749 | Integrated Sentinel Series humidifier or freestanding humidifier |
Equipment prices are Wine Guardian Dealer starting prices, August 2026. Labor ranges are not quoted here; obtain them from your licensed HVAC professional and electrician.
Who Should Use an Expert, and Who Can Plan the Cooling Alone?
Use a wine cellar refrigeration expert whenever the room has glass, sits next to living space, has no obvious place to exhaust heat, or will hold more than a few hundred bottles. A small, fully insulated basement closet with a cool adjoining room and a through-the-wall unit is the one case where an experienced homeowner and a contractor can reasonably plan the cooling alone, and even then the consultation is free.
1. Commonly selected for an expert
Glass walls or doors, cellars beside bedrooms or dining rooms, no adjacent room for exhaust heat, split or water-cooled configurations, commercial or restaurant rooms, and any retrofit into a finished space.
Get design support →2. Reasonable to plan alone
A framed, insulated basement room with a vapor barrier, a cool adjoining space to absorb exhaust heat, a load well inside a through-the-wall unit's range, and a contractor who has installed one before.
DIY vs professional installation →3. Always a professional
Refrigerant line work on split systems, the electrical circuit, and final commissioning. These are licensed-trade tasks regardless of who did the planning.
How to choose a cooling unit →
The expert's value is highest when the building constrains the answer
When there is only one place the condenser can go, one wall that can be cut, or one duct route that clears a beam, the configuration choice is a building question, and it is the question a general HVAC estimate tends to skip. The top ten wine cellar mistakes are almost all decisions that looked fine on paper and failed against the building.
What Questions Should You Ask, and What Are the Red Flags?
Ask any wine cellar cooling consultant five questions: what ambient temperature the heat load assumes, where the exhaust heat goes, what the published noise figure is at a stated distance, what the electrical scope is, and who services the unit in ten years. A consultant who names a model before asking about glass and ambient temperature, or who says no professional is needed, is a red flag.
Questions to ask a wine cellar refrigeration expert
- What ambient temperature and glass area does the heat load assume, and what happens to capacity if the adjacent room reaches 85°F?
- Where does the condenser heat go, and how long can the duct run or refrigerant line be before capacity drops?
- What is the published noise level, at what distance, and is the compressor inside or outside the living space?
- What voltage and circuit does the unit need, and can you send the specification sheet for my electrician?
- Where does condensate drain, and does the humidity plan need a humidifier?
- Which parts are sold individually, and how is warranty service handled through the manufacturer?
Red flags
- A model named before the inputs are collected. Sizing without dimensions, glass and ambient temperature is a guess.
- Sizing by bottle count alone. Bottles are a small part of the load; the envelope is most of it.
- "No HVAC professional needed." Refrigerant lines, the circuit and commissioning are licensed-trade work.
- A guaranteed temperature or humidity. No consultant can guarantee conditions in a room they have not built or inspected.
- Ship dates promised before the order. Lead times are confirmed at order, not in a sales conversation.
- No mention of the vapor barrier. Cooling a room without one puts moisture in the wall cavity.
Wine Cooling Expert, Wine Guardian Dealer
The first thing I ask for is a photo of the wall they want to cut and the room on the other side of it. If the other side is a garage in Phoenix, the conversation is about ducting before it is about any model. The heat load is arithmetic; where the heat can go is the real design question.

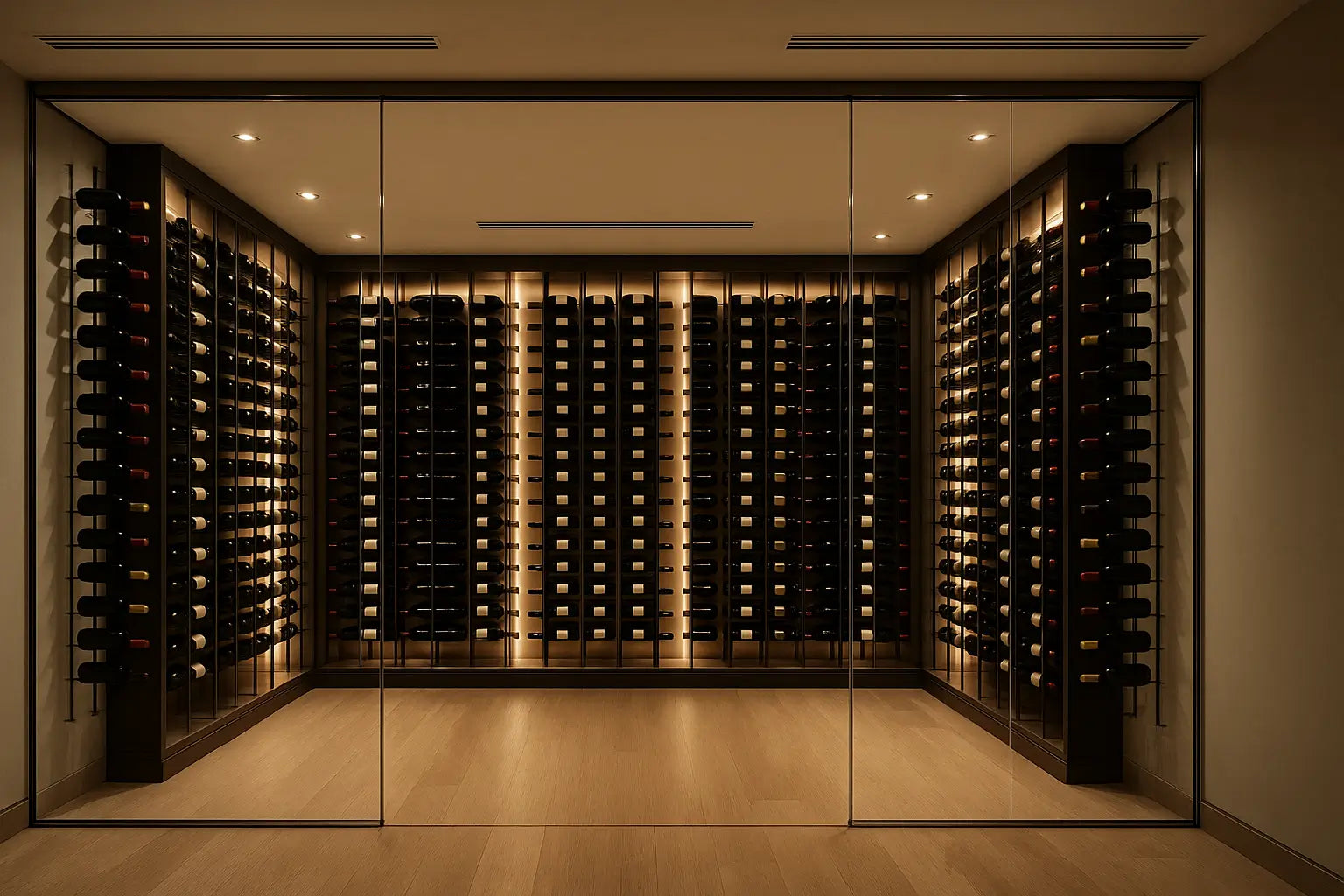

What Does a Ducted System Look Like Once the Plan Is Built?
A ducted system built to plan keeps the unit in a mechanical space, runs insulated supply and return ducts to the cellar, and exhausts condenser heat to a room or outdoors that can absorb it. The video below shows the Wine Guardian ducted layout so you can picture what the expert's condenser and duct plan describes.
Wine Guardian ducted system overview
A short walkthrough of the ducted configuration, useful for understanding the duct routes, grille positions and exhaust path in a written cooling plan.
- Where the self-contained ducted unit sits relative to the cellar
- How supply and return ducts connect and why they are insulated
- Where the condenser exhaust goes and why the room it lands in matters
Who installs wine cellar cooling units?
Wine cellar cooling units are installed by a licensed HVAC or refrigeration professional, with a licensed electrician supplying the dedicated circuit and a general contractor handling framing, insulation and the wall opening or mechanical space. The dealer's expert plans and specifies the system; the manufacturer warranty and service run through Wine Guardian.
Why is a Wine Guardian heat load calculation important?
The heat load calculation is what makes the model choice defensible. It totals conduction through walls, ceiling and glass plus lighting, door traffic and bottles at the warmest ambient temperature, then matches a unit whose rated capacity, such as the D025 at 4,300 BTU/h at 80°F ambient, covers it with margin. Skipping it produces constant running or short cycling.
How much does a wine cellar cooling consultation cost?
Through Wine Guardian Dealer the consultation is free, with no design fee and no obligation to order. You pay for the equipment, starting at $3,039 for a through-the-wall unit, and for your own HVAC professional's and electrician's labor. Independent wine cellar consultants and design firms usually charge a separate design fee.
Can my regular HVAC contractor install a wine cellar cooling unit?
Yes, if they are licensed and follow the manufacturer installation documentation. The difference between a wine cellar and a normal room is the 55°F set point, the humidity target and the vapor barrier, so give them the written plan and the specification sheet. The dealer's expert can answer their configuration questions before the rough-in.
What information do I need to bring to a wine cellar design consultation?
Bring interior length, width and ceiling height, glass type and square footage, three or four photos, the insulation R-values and vapor barrier plan, the warmest temperature of the adjacent space, and the location of any mechanical space or exterior wall. Bottle count, lighting and how often the door opens complete the picture.
How do I size a wine cellar cooling unit?
Size a wine cellar cooling unit by calculating the heat load in BTU/h from the room volume, insulation, glass area, lighting and the warmest ambient temperature, then choosing a unit whose rated capacity at that ambient covers the load with margin. Use the cooling calculator for a first estimate and have a licensed HVAC professional confirm it.
Do I need a wine cellar cooling expert for a small cellar?
Not always. A small, fully insulated basement closet with a cool adjoining room and a load well inside a through-the-wall unit's range can be planned by an experienced homeowner and contractor. Glass, a hot adjacent space, or a location beside living areas changes that, and since the consultation is free there is little reason to skip it.
What type of cooling is best for my wine cellar?
The best type is the one the building allows: through-the-wall when a cool adjoining room can absorb exhaust heat, ducted when a mechanical space is within a workable duct run, ducted or ductless split when the condenser must go outdoors, and water-cooled when there is nowhere to exhaust air. The expert narrows this to one or two options from your inputs.
Ready to have an expert look at your cellar plans?
Send your dimensions, glass area, photos and insulation plan and a wine cellar refrigeration expert will return a heat load figure, a configuration recommendation and a matched Wine Guardian model at no charge, or request a price quote on a specific unit.
Keep planning
More on this topic in our wine cellar guides. Run a first estimate with the cooling calculator, then send the same inputs through wine cellar design support to have the figure checked and a model matched.
This guidance is general and intended to help narrow the selection. Final sizing, installation design, electrical requirements, and configuration should be confirmed with Wine Guardian official documentation and a licensed HVAC professional or qualified contractor.
