Wine Room Humidification: How to Add and Hold Humidity in a Dry Wine Room

Why Does a Wine Room Drift Below 55 Percent Relative Humidity?

A wine room drifts dry because refrigeration removes water as a side effect of cooling. Warm cellar air passes over a cold evaporator coil, moisture condenses on the coil, and that water leaves the room as condensate. Nothing inside a sealed wine room puts it back.

This is the part that surprises most owners. A house gains moisture constantly from cooking, showers and the people living in it. A wine room has none of that. It is a small sealed box with a refrigeration machine attached, and the machine is a dehumidifier whether or not you wanted one.

Why it matters

The cork is the part that fails first

Cork stays airtight only while it holds moisture and stays swollen against the glass. In persistently dry air it shrinks, the seal loosens, and oxygen reaches the wine. The damage is slow and quiet, which is why dry rooms are usually discovered by a failed bottle rather than by a reading.

What pushes a wine room dry

• Long cooling run times. A unit that runs hard through a hot summer, or an undersized unit that runs almost continuously, condenses moisture out of the room for hours at a time.
• Dry outdoor air in winter. Cold air holds very little moisture. Once it is inside a heated house it is extremely dry, and any of it that reaches the cellar through an imperfect envelope arrives dry.
• An envelope that leaks. Gaps around the door, an unsealed penetration for a duct or a wire, or a missing vapor retarder let conditioned house air trade places with cellar air all day. The US Department of Energy explains the role of the vapor retarder in moisture control, and our wine cellar vapor barrier guide covers where it belongs.
• New construction. A newly finished room with fresh drywall, paint and framing gives up moisture for a while and then goes quiet, so readings drop months after the build.
• A room that was never damp to begin with. Cellars in arid regions and above-grade rooms in dry climates often start below the band before a cooling unit is even switched on.

What Does the 55 to 65 Percent Humidity Band Mean in Practice?

The 55 to 65 percent band is the relative humidity Wine Guardian publishes for its cooling systems at a storage temperature of 55°F to 58°F, achieved with one of its humidifiers connected. In practice it means a setpoint near 60 percent and readings that move a few points either side across a day.

Read it as a system rating rather than a promise about your room. It describes what a matched cooling unit and humidifier hold together in an insulated, vapor-sealed cellar. Published control accuracy on ducted, split, ceiling mount and wine wall units is plus or minus 1°F and plus or minus 10 percent relative humidity, so a room sitting at 58 to 62 percent all week is behaving as specified.

What a relative humidity reading is telling you about a wine room

Control band, storage temperature and control accuracy per Wine Guardian published specifications, 2026. Wine Guardian product listings describe a wider acceptable storage window of roughly 50 to 70 percent relative humidity, with about 60 percent as the common working target.

Aiming at the middle of the band is deliberate. A setpoint of 60 percent leaves a cushion on both sides, so a normal daily swing and the published tolerance never push the room into cork-drying or mold-growing territory. A setpoint at the edge of the band gives the room nowhere to move.

What Are the Signs a Wine Room Needs Humidification?

The reliable sign is a hygrometer that sits below 55 percent for weeks. The visible signs come later: corks that look shrunken or cracked at the top, wine seeping past the capsule, fill levels dropping in the neck, and labels that curl or go brittle at the edges.

What to look for

Dry room symptoms on the bottle

Pull a few older bottles and look at the top of the cork and the fill level in the neck. A cork that has receded, a sticky ring under the capsule, or a fill line that has dropped noticeably below its neighbours all point at a seal that has been losing its grip in dry air.

Confirm before you buy anything

• Place a digital hygrometer at bottle height in the middle of the racking and leave it there.
• Log the high, the low and the swing once a day for two weeks, covering at least one hot stretch or one cold snap.
• Note what the cooling unit is doing at the same time. A room that only reads dry while the unit runs hard is telling you something different from a room that reads dry all the time.
• Check the door seal, the duct penetrations and any glass. A room that cannot hold moisture will not hold it after a humidifier is added either.

Symptoms that point the other way are just as useful. Condensation on bottles or walls, a musty smell, mildew on wooden racking or labels lifting while wet are all signs of too much moisture, not too little. The EPA brief guide to mold and moisture is a useful reference for that side of the problem, and the fault itself is covered in wine cellar humidity too high. Adding a humidifier to a damp room makes it worse.

How Does a Humidifier Integrate With a Wine Guardian Cooling System?

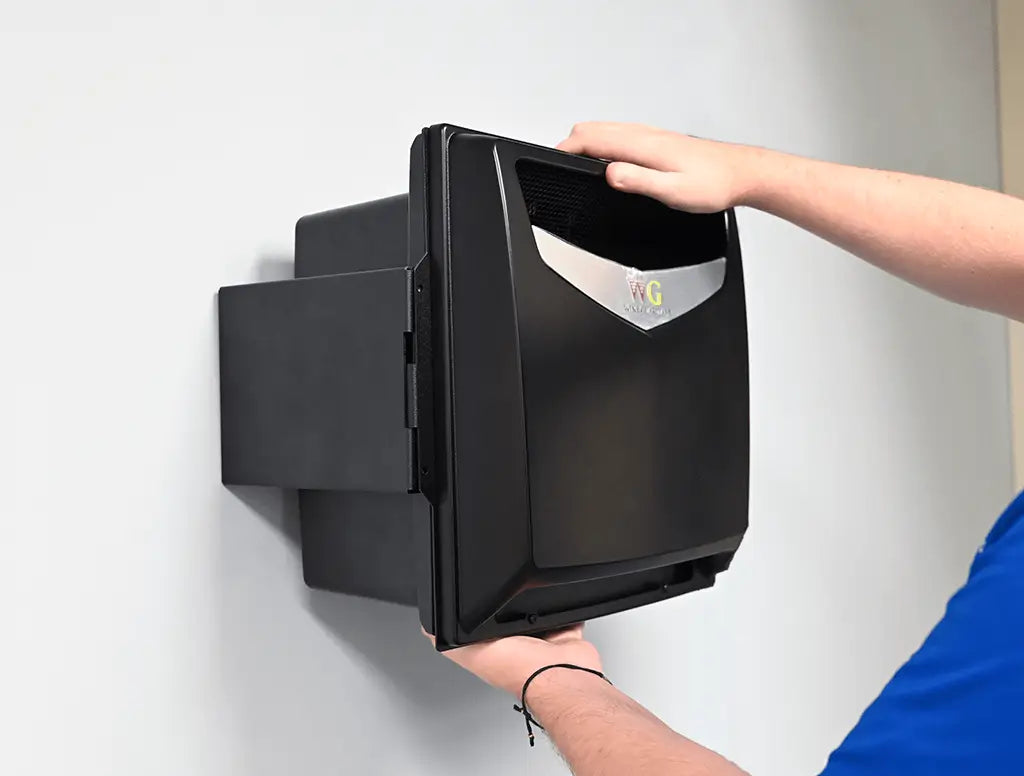

Wine Guardian humidifiers integrate in one of two ways. An integrated model attaches directly to a ducted or ducted split unit in the adjacent equipment space and draws 24 V from it. A freestanding model mounts on the wine room wall or inside the racking and runs on its own 115 V supply.

Both routes use the same evaporative principle. Water saturates a replaceable drip pad, the unit releases moisture into the cellar air, and the Wine Guardian remote controller calls for that moisture only when the room falls below setpoint. The difference is where the box lives, how it is powered, and which cooling units it is published to work with.

Where it goes

Integrated means out of sight

An integrated humidifier bolts to the side of the cooling unit with quarter-turn fasteners and can mount on either side, so it stays in the equipment room with the ductwork. Nothing is added to the wine room itself, which is the main reason ducted builds choose this route.

Wine Guardian humidifier published figures

Output, power, dimensions and compatibility per Wine Guardian published specifications, 2026. Starting prices from Wine Guardian Dealer, September 2026.

The output figure is the same across the line, which is the single most useful thing to know when planning. Capacity is not what separates these models. Integration is: you are choosing where the humidifier sits and what powers it.

Integrated and freestanding humidification compared

Compatibility and output per Wine Guardian published specifications, 2026. Starting prices from Wine Guardian Dealer, September 2026.

This page stops at how humidification is integrated. For a model-by-model shortlist, published specifications side by side and cost of ownership, take the product route: the wine cellar humidifier buying guide for the selection sequence, Wine Guardian humidifiers for the specifications and ratings, and the wine cellar humidifiers collection for the current lineup.

What Does a Wine Room Humidifier Need for Water Supply and Drainage?

An evaporative humidifier needs a water supply to wet its drip pad, and it needs to be reachable for pad replacement. It does not create a drain load of its own, because the moisture leaves as vapor into the cellar, but the cooling unit it works alongside still handles condensate.

Plan the water connection at the same time as the cooling unit, not afterwards. On an integrated humidifier the connection is made in the equipment space where the ducted unit sits, which is easier to reach and easier to service. On a freestanding humidifier it has to arrive inside the wine room, which means routing a line through the vapor-sealed envelope you just built.

What to sort out before installation day

• Where the line comes from. A dedicated shutoff valve near the unit makes service and winter shutdown straightforward.
• How the line crosses the envelope. Any penetration through the vapor retarder has to be sealed properly, or you have added a moisture path in the process of solving a moisture problem.
• Freeze exposure and water quality. A line through a garage, attic or crawl space needs freeze protection in cold regions, and mineral content drives how quickly the evaporative pad loads up.
• Service access. The drip pad is field-replaceable behind a removable cover, so leave clearance for it. Replacements are stocked as a single pad, part 54H0010-02, at $68 or a 4-pack, part 94H0022-00, at $165.
• Condensate from the cooling unit. Ducted and split units need a condensate route. Some through-the-wall Sentinel and Defender units re-evaporate condensate internally, which often removes the need for a drain line.

How Should Wine Room Humidity Be Controlled and Sensed?

Humidity should be controlled by the cooling system's own humidity sensor and remote controller, which switch the humidifier on when the room falls below setpoint and off when it reaches it. A humidifier on a timer or a plug-in switch cannot hold a band, because it has no idea what the room is doing.

On ducted, ducted split, ductless split, ceiling mount and wine wall units the Wine Guardian remote controller reads temperature and humidity continuously and drives both. On through-the-wall Sentinel and Defender units the built-in sensor combines a thermostat and a humidistat, and the freestanding humidifier wires to the unit so the same logic applies. Two accessories extend the sensing side: a Remote Interface Controller at $460 and a Remote Sensor at $340.

Setpoint

Set it once and leave it

Sixty percent is the common working target inside the published 55 to 65 percent band. Chasing the reading up and down day to day is the fastest way to make a stable room unstable. Set it, log it, and only change it if a full season shows the room parked outside the band.

Where the sensing happens matters as much as the setpoint

• Keep the sensing point away from the supply air stream, which is colder and drier than the room average.
• Keep it away from the door, where house air arrives every time the room is opened.
• Put your own hygrometer at bottle height in the racking, so you have an independent reading to compare against the controller.
• Expect the two to disagree by a few points, because different positions in a small room genuinely read differently. Treat a persistent gap of more than about 10 percent as a placement or room problem, not a reason to move the setpoint.

For the control ranges published per model, and for how each Wine Guardian series handles humidity display against actual humidity control, see wine cellar humidity control basics. Climate control inside a sealed cabinet works on different principles and is covered in how wine cabinets control temperature and humidity.

Which Humidification Route Fits Your Wine Room?

Use the Dry Room Decision Path. It asks two questions in order: is the room genuinely dry, and what cooling system is already there. The answers point at one of three routes, and only one of them is a humidifier purchase.

Two edge cases sit outside the path. A humid climate can put a cellar on both sides of the band across a single year, wet in summer and dry in winter, and that project type is worked through in humid climate wine cellar cooling. Storage in a sealed cabinet rather than a room is a different problem again, covered in the wine cabinet temperature and humidity guide.

What Is the Order of Operations for Adding Humidification to a Wine Room?

Work outward from the room to the equipment. Confirm the room is dry, seal and insulate the envelope, confirm the cooling unit is sized to the load, then add a humidifier matched to that unit and verify the result over a full season. Skipping straight to the humidifier is the common and expensive mistake.

1. Log the room for two weeks. Put a hygrometer at bottle height and record the high, the low and the swing daily. You need evidence the room is dry, not a memory of a dry-looking cork.
2. Seal and insulate the envelope. Insulated walls and ceiling, a correctly placed vapor retarder, a weather-stripped door and sealed penetrations. A room that cannot hold moisture will not hold it after a humidifier is added.
3. Confirm the cooling load and the unit. Run the room dimensions, insulation and glass area through the cooling calculator. A unit matched to the load runs the long, steady cycles that let the band hold, and a licensed HVAC professional should confirm the final selection.
4. Choose the integration route. Integrated on a ducted or ducted split unit, freestanding for through-the-wall, ductless split or another brand. Check the compatibility list for the exact model you own.
5. Plan water and access. Decide where the water line comes from, how it crosses the envelope, and where the drip pad will be reached. Have a licensed professional confirm the connection.
6. Set the humidity setpoint near 60 percent. Set it on the Wine Guardian remote controller so the humidifier runs on demand rather than on a timer, and leave it alone.
7. Verify across a season. Log weekly for a month and then each season. Readings inside plus or minus 10 percent of setpoint are normal. Readings parked outside the band point back at the room.

If the room is still drifting after all seven steps, the problem is almost never the humidifier. It is usually the envelope, the door, or a cooling unit that is working far harder than the room requires. Our team can review the plan with you through wine cellar design support before anything is ordered.
