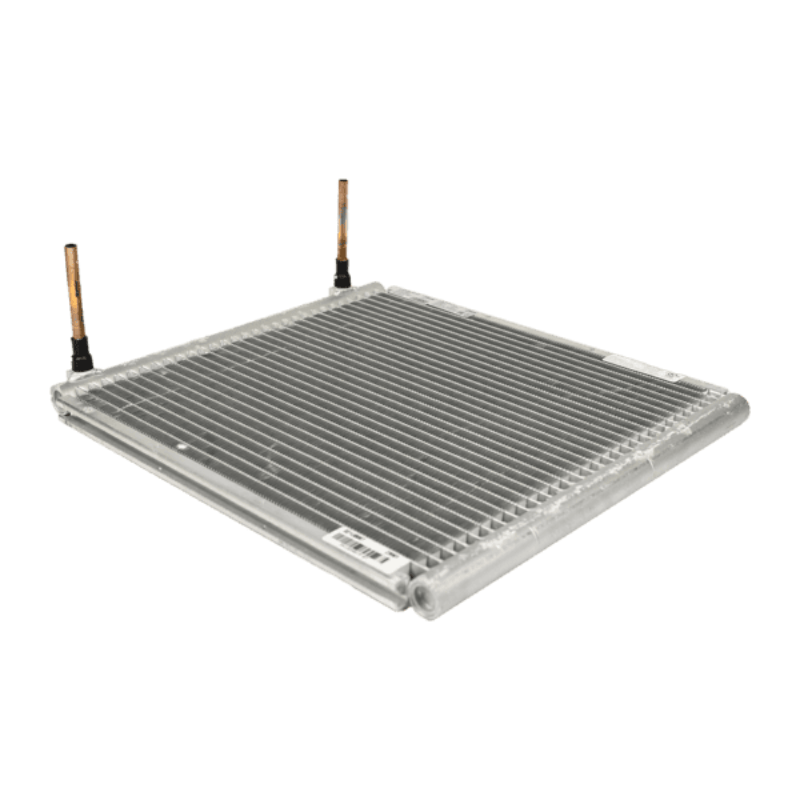

Wine Guardian Condenser Coil for TTW Classic and Sentinel 53H0063-00
- Part 53H0063-00
- Condenser Coil for Classic or Sentinel TTW01, TTW02 & TTW04
Genuine Wine Guardian part. Not sure it fits your unit? Send us your model and serial number. We'll confirm before you order.
Check fitWine Guardian Condenser Coil for TTW Classic and Sentinel 53H0063-00 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Questions about sizing or installation? Call a wine cellar specialist at 1 (800) 260-1712 or chat now.
Planning a wine cellar? Get expert advice before you buy and save time and money.
Call a wine cellar specialist at 1 (800) 260-1712 for a free consultation.
Wine Guardian Condenser Coil for TTW Classic and Sentinel 53H0063-00 is backordered and will ship as soon as it is back in stock.
Genuine Condenser Coil Scoped to Classic and Sentinel Through-the-Wall Units
The Wine Guardian Condenser Coil 53H0063-00 is the genuine replacement condenser coil that Wine Guardian lists for the Classic and Sentinel trims of its TTW01, TTW02 and TTW04 through-the-wall wine cellar cooling units, where it is the coil that rejects heat on the warm side of the sealed refrigeration circuit.
The trim matters more than the size class on this part. One coil number covers all three size classes in Classic and Sentinel trim, while the Defender trim takes its own coil, the 53H0063-01 Defender condenser coil. If the data plate on your unit reads Defender, this is the wrong part number. As an authorized Wine Guardian dealer we supply genuine Wine Guardian parts.
Part Number, Coil Type and Published Trim Scope
Wine Guardian publishes this coil as a condenser coil scoped by trim rather than by size class: one part number for Classic and Sentinel across TTW01, TTW02 and TTW04. The manufacturer's parts listing for this number carries no weight or dimension table, so none is published here.
Which Units Wine Guardian Lists for the 53H0063-00
Wine Guardian lists 53H0063-00 for the Classic and Sentinel trims of TTW01, TTW02 and TTW04, and it lists a separate number for Defender. Size class does not change this part; trim does.
- ✓Classic trim TTW01, TTW02 and TTW04 through-the-wall units
- ✓Sentinel trim TTW01, TTW02 and TTW04 through-the-wall units
- ✓Defender trim is excluded and takes 53H0063-01 instead
On this store the B-series through-the-wall line runs in three trims, so the Classic and Sentinel units this coil covers are the TTW01B Classic and TTW01B Sentinel, the TTW02B Classic and TTW02B Sentinel, and the TTW04B Classic and TTW04B Sentinel. The three Defender units are the ones this coil does not serve.
Wine Guardian writes the coil scope as TTW01, TTW02 and TTW04 and names the Classic, Sentinel and Defender trims alongside it. The current units are sold as TTW01B, TTW02B and TTW04B, so read the full model designation from your unit's data plate and match it against Wine Guardian's published parts list before ordering rather than assuming the short form.
Because the scope runs from the 1,000 BTU class up to the 3,500 BTU class, this coil crosses the cellar-size bands rather than sitting in one, so no single cellar-size collection describes it. A coil is part of the sealed refrigeration circuit of the unit, so fitting a replacement is work for a licensed HVAC professional or qualified refrigeration contractor working to Wine Guardian's official service documentation.
This coil serves the through-the-wall configuration in Classic and Sentinel trim.
Browse the full range in Parts and Accessories.
The Other Coils Inside a Through-the-Wall Unit
A through-the-wall unit carries two coils, and they are scoped differently. The condenser coil splits by trim, so Defender units take the 53H0063-01. The evaporator coil splits by size class instead and ignores trim, so TTW01 and TTW02 share the 53H0080-01 evaporator coil while TTW04 takes the 53H0081-01.
Confirm the Coil Against Your Unit's Data Plate
Send us the model designation and trim from your data plate and our team will confirm which condenser coil Wine Guardian lists for it. Final fit and any service work should be confirmed with official Wine Guardian documentation and a licensed HVAC professional or qualified contractor.
After you buy
Warranty, returns and help
Wine Guardian warranty: 25 months parts
Warranty service is handled directly by Wine Guardian. We help you find your model, serial number and purchase documents. Standard: 25 months parts and 13 months labor from the original invoice date. Platinum (optional upgrade): 25 months parts and labor, plus the compressor, evaporator coil and condenser coil covered for 61 months (parts only).
Ask us for a free copy of the warranty before you buy.
Free cancellation for 24 hours
Cancel free within 24 hours of placing your order, custom and made-to-order items included: your card is not charged. After 24 hours and before the order ships, a standard order can still be cancelled for 3%, the card-processing fee the payment processor keeps on a refunded payment. Custom and made-to-order items go into production after 24 hours and cannot be cancelled.
30-day returns, unopened
Return an unopened, uninstalled item within 30 days of delivery for a refund or store credit. Contact us first: ship nothing back until we send you an RMA number with the return instructions. A 25% restocking fee applies to returns and exchanges; there is no fee when an item arrives damaged, is defective or the wrong item was sent.
Questions? 1 (800) 260-1712Monday to Friday, 9AM to 9PM EST
Frequently asked questions
Wine Guardian Condenser Coil for TTW Classic and Sentinel 53H0063-00 Questions
Which Wine Guardian units does the 53H0063-00 fit?
Wine Guardian lists it for the Classic and Sentinel trims of TTW01, TTW02 and TTW04 through-the-wall units. All three size classes share this one condenser coil in those two trims.
What is the difference between 53H0063-00 and 53H0063-01?
The two numbers differ by trim, not by size. 53H0063-00 is the Classic and Sentinel condenser coil and 53H0063-01 is the Defender condenser coil. They are not interchangeable.
How do I confirm this is the right part number for my unit?
Read the full model designation and trim from the data plate on the unit, then match that against Wine Guardian's published parts list. Our team can confirm the number with you before you order.
Is this the complete condenser coil or a component of one?
Wine Guardian sells and lists 53H0063-00 as one condenser coil. It is not a kit and it does not include a fan, a motor or refrigerant.
Does fitting a replacement condenser coil need a technician?
Yes. The coil sits in the sealed refrigeration circuit of the unit, so a licensed HVAC professional or qualified refrigeration contractor should carry out the work to Wine Guardian's official service documentation.
