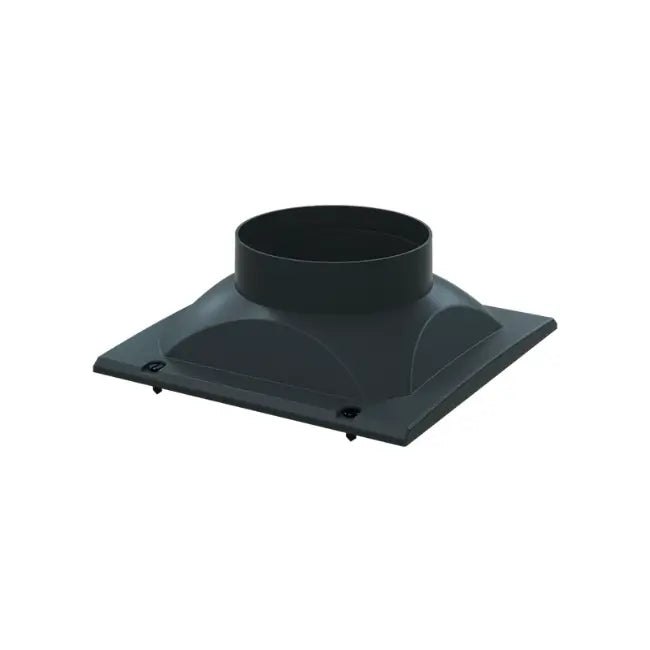

The Wine Guardian 8-inch Duct Collar, part 19H0109-00, is the composite fitting that gives 8-inch round ductwork a sealed attachment point at the supply outlet or the return intake of a Sentinel Series cooling unit.
Wine Guardian lists it for the D025, DP25, DS025 and SP25. It is sold as a single collar, and a ducted install normally needs one at the supply and one at the return, so most cellars take two. As an authorized Wine Guardian dealer we supply genuine Wine Guardian parts.
The collar takes an 8-inch round duct connection and works on either the supply outlet or the return intake. Wine Guardian describes the Sentinel Series collars as composite with a redesigned double-wall body that insulates 42 percent better than the previous design, which is what reduces temperature loss and surface condensation right at the connection.
Wine Guardian publishes this collar for exactly four models: the D025, DP25, DS025 and SP25. Every other ducted Wine Guardian system in the current line uses the 10-inch collar instead.
The D025 and DP25 are the ducted pair, the DS025 and SP25 the split pair, and all four sit together in the medium cellar band, 1,200 to 2,200 cubic feet. A 050, 088 or 200 cabinet needs the 10-inch collar and will not accept this one. Confirm the connection size on your unit's data plate and against Wine Guardian's published parts list before ordering.
This collar serves the ducted configuration and the ducted split systems built on the 25-class cabinet.
Browse the full range in Parts and Accessories.
A collar with nothing to connect to is only half the job. Pair it with 8-inch flexible ductwork 74H0022-00, or skip the separate purchase and take the 94H0007-20 duct collar kit, which contains two collars and a box of duct in one carton.
Our team can help confirm the correct Wine Guardian collar for your system. Final sizing, sealing and installation should be confirmed with official Wine Guardian documentation and a licensed HVAC professional or qualified contractor.
