Written by Jim Hopper, Wine Cooling Expert · Updated August 2026
What Goes Into a Luxury Basement Wine Cellar, From Design to Climate Control?
A luxury basement wine cellar is a below-grade room built as a sealed, insulated envelope with a continuous vapor barrier, a dedicated cooling system that holds 55°F to 58°F, active humidity control in the 55% to 65% range, low-heat lighting, and racking designed around a display feature such as a glass entry wall. This case study walks through a typical luxury basement project: the brief, the challenges a below-grade space creates, the envelope and design decisions, and why a ducted Wine Guardian system was the cooling configuration selected. No client names or measured results are used; the figures are project assumptions and published specifications.
Below: the project brief, the basement-specific challenges, the envelope decisions, the ducted cooling configuration and the models compared, the humidity plan, lighting and racking notes, a planning sequence, the typical outcome, and FAQs.
A typical luxury basement wine cellar project starts with a roughly 12 by 14 foot room with a 9 foot ceiling, about 1,500 cubic feet, a target of around 1,200 bottles, and a glass entry wall facing a finished basement lounge. The three basement-specific problems are below-grade moisture, a mechanical space that must take the cooling unit, and the added heat load from the glass. The envelope uses continuous insulation and a warm-side vapor barrier, the cooling is a ducted Wine Guardian D050 (6,320 BTU/h at 80°F ambient, rated for roughly 650 to 3,000 cubic feet, starting at $7,395) located in the adjacent mechanical room, and humidity is handled by a freestanding humidifier tied to the remote controller. A licensed HVAC professional confirms final sizing.
The typical luxury basement project in this case study
- Space: below-grade basement room, roughly 12 ft by 14 ft by 9 ft (about 1,500 cubic feet), with an adjacent mechanical room
- Brief: around 1,200 bottles, glass entry wall to a basement lounge, tasting table, long-term storage at 55°F to 58°F
- Challenges: foundation-wall moisture, slab humidity, ductwork routing, glass heat load, service access
- Cooling configuration: ducted self-contained unit in the mechanical room; the Wine Guardian D050 commonly selected, starting at $7,395
- Humidity plan: freestanding Wine Guardian humidifier, target 55% to 65% relative humidity, remote sensor inside the cellar
What Was the Brief for This Luxury Basement Wine Cellar?
The brief for a typical luxury basement wine cellar is a dedicated storage room for roughly 1,200 bottles, held at 55°F to 58°F year-round, with a glass entry wall so the collection is visible from a finished basement lounge, a small tasting table, and equipment that cannot be heard from the lounge. The room is a former storage bay against two foundation walls.
The dimensions used throughout are 12 feet by 14 feet with a 9 foot ceiling, about 1,500 cubic feet before racking. An adjacent mechanical room of about 6 feet by 8 feet holds the furnace and water heater. Those two rooms, and the wall between them, decide most of what follows.
A basement starts closer to cellar conditions than any other room
Below-grade rooms sit against soil that stays cooler and more stable than outdoor air, so the cooling load is lower than an above-grade room of the same size, and the space is already away from sunlight. The trade-off is moisture: concrete foundation walls and slabs pass water vapor, and a basement that feels damp in summer is not a finished cellar yet. The general build sequence is covered in How to Build a Basement Wine Cellar; this case study focuses on the decisions that make a basement cellar a luxury one.
What Challenges Does a Below-Grade Basement Create for a Wine Cellar?
A below-grade basement creates four challenges for a luxury wine cellar: water vapor moving through the foundation walls and slab, a mechanical space that must accept the cooling unit and its exhaust heat, limited headroom and joist bays for ductwork, and the extra heat load and condensation risk of a glass feature wall facing a conditioned lounge.
Basement-specific challenges and how a typical luxury project resolves them
| Challenge | Why it matters in a basement | Typical resolution |
|---|---|---|
| Foundation-wall and slab moisture | Concrete passes vapor; a cooled room pulls moisture toward its cold side and into insulation cavities | Address bulk water first, then continuous insulation and a vapor barrier on the warm side of the assembly; a moisture-tolerant floor finish |
| Mechanical space and heat rejection | A self-contained unit exhausts warm air; a small furnace room can overheat and push the condenser inlet temperature up | Locate the unit in the mechanical room and confirm it has enough volume or a vented path for the condenser exhaust; a licensed HVAC professional should confirm |
| Duct routing and headroom | Ducts must reach the cellar without a soffit that ruins the ceiling line; joist bays often run the wrong way | Short insulated duct runs through the shared wall; supply high, return low, 10 inch round minimum on the D050 |
| Glass entry wall | Glass adds heat load and is the first surface to fog when the lounge side is warm and humid | Insulated, sealed glazing; the added load included in the calculator estimate; supply air not blowing across the glass |
| Service access | A unit buried behind a furnace cannot be serviced without moving equipment | Clear access panels on the D050 side, condensate drain to a floor drain or condensate pump |
Which Design Decisions Shaped the Cellar Envelope?
The envelope decisions in a typical luxury basement wine cellar are continuous insulation on the foundation walls and ceiling, a vapor barrier on the warm side of the assembly, an insulated and sealed entry, and a floor that tolerates humidity. Together they let a correctly sized cooling unit hold 55°F to 58°F without running constantly.
The U.S. Department of Energy recommends insulating basement walls as part of the home envelope and explains where insulation belongs in below-grade assemblies (DOE Energy Saver, Where to Insulate a Home). For a wine cellar the same logic applies with a stricter goal: the room is being held at 55°F to 58°F while the lounge next to it sits near 70°F, so every gap in the insulation or vapor barrier becomes a condensation point.
Envelope decisions in the typical project
| Element | Decision | Reason |
|---|---|---|
| Foundation walls | Closed-cell foam or rigid foam board against the concrete, framed wall inboard, continuous vapor barrier | Closed-cell foam resists moisture and doubles as an air barrier against the concrete |
| Ceiling | Insulated joist bays with a vapor barrier on the warm (upper) side, sealed around penetrations | The floor above is the warmest surface; an uninsulated ceiling is the most common load leak |
| Floor | Sealed slab with tile, stone, or sealed cork over a moisture barrier | Carpet and unsealed wood hold moisture at 55% to 65% relative humidity |
| Entry | Insulated glass wall with a sealed, self-closing glass door, sweep, and gaskets | The door is the largest single air leak in most cellars |
| Lighting | Low-heat LED on a timer or occupancy sensor | Every watt of lighting is added cooling load |
Warm side, continuous, and sealed at every seam
In a basement wine cellar the vapor barrier goes on the warm side of the insulation, which is the side facing the lounge, the floor above, and the mechanical room, not the side facing the cellar. Seams are taped, penetrations for ducts, wiring, and the humidifier water line are sealed, and the barrier runs continuously across walls and ceiling. The wine cellar insulation guide covers material choices and cost ranges.
Why Was a Ducted Wine Guardian System Chosen, and Which Model?
A ducted self-contained system was chosen because it keeps every mechanical component out of the cellar and out of sight, which a luxury cellar with a glass wall demands, and because an adjacent mechanical room was available for the unit. The Wine Guardian D050 is the model commonly selected for a roughly 1,500 cubic foot basement cellar with a glass wall, with the DS050 ducted split as the alternative when the mechanical room cannot take the exhaust heat.
The room volume of about 1,500 cubic feet falls inside the published ranges of both the D025 (roughly 250 to 2,000 cubic feet) and the D050 (roughly 650 to 3,000 cubic feet). The glass wall, the LED lighting, and the possibility of the mechanical room running warm in summer all push the load up, and the D050 leaves margin without oversizing to the point of short cycling. The cooling calculator gives the load estimate; a licensed HVAC professional should confirm the final selection against the room as built.
Cooling configurations compared for the typical luxury basement cellar
| Model | Configuration | Rated capacity | Recommended cellar volume | Electrical | Starting at | Fit for this project |
|---|---|---|---|---|---|---|
| Wine Guardian D050 | Ducted self-contained, air-cooled, unit in the mechanical room | 6,320 BTU/h at 80°F ambient | About 650 to 3,000 cubic feet | 115/1/60 | $7,395 | Commonly selected: margin for the glass wall, single unit, standard voltage |

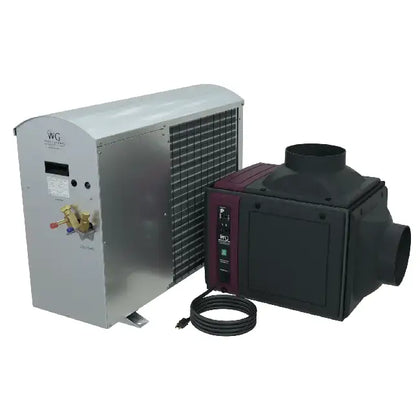

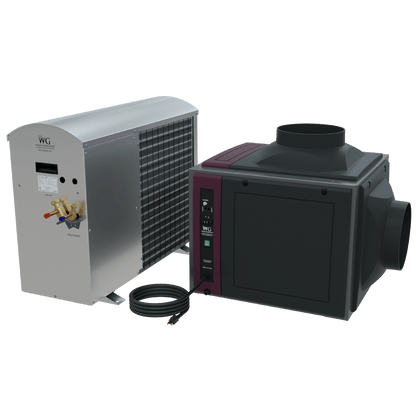

| Wine Guardian DS050 | Ducted split: fan-coil ducted to the cellar, condenser remote | 6,300 BTU/h at 80°F ambient | About 650 to 3,000 cubic feet | 115/1/60 | $8,990 | Alternative when the mechanical room cannot vent the exhaust heat; refrigerant lines by a licensed HVAC contractor |
| Wine Guardian D088 | Ducted self-contained, air-cooled | 5,000 to 9,600 BTU/h at 80°F ambient | About 850 to 4,500 cubic feet | 208-230/1/60 | $8,185 | Step up if the cellar grows past about 2,500 cubic feet or adds a second glass wall |
| Wine Guardian D025 | Ducted self-contained, air-cooled | 4,300 BTU/h at 80°F ambient | About 250 to 2,000 cubic feet | 115/1/60 | $6,043 | Workable only if the glass wall is small and the calculator confirms the load |
Capacities, cellar volumes, and electrical per Wine Guardian published specifications, 2026. Starting prices are Wine Guardian Dealer prices, August 2026.
Unit in the mechanical room, short insulated ducts through the shared wall
The D050 sits in the mechanical room on the wall shared with the cellar. Two insulated duct runs pass through that wall: a supply high on the cellar side and a return low, keeping cool air moving across the racking rather than across the glass. Wine Guardian specifies a 10 inch round minimum duct size on the D050, and its internal components sit on rubber-in-shear isolators, so the only sound in the cellar is airflow. The condensate drain runs to the floor drain already in the mechanical room. Layout and venting rules are in the ducted installation guide, and every purchasable ducted model is in the ducted wine cellar cooling units collection.
Estimate the load for your own basement cellar
Enter the room dimensions, insulation, glass area, and the warmest temperature in your mechanical space to estimate the cooling load, then compare it with the rated capacities in the table above.
Featured Wine Guardian Systems
How Was Humidity Handled in the Basement Wine Cellar?
Humidity in the typical luxury basement cellar is handled by a freestanding Wine Guardian humidifier controlled from the same remote controller as the D050, with a target of 55% to 65% relative humidity and a remote sensor mounted in the racking away from the supply duct. The cooling unit dehumidifies as it cools, so a basement that is damp in summer can still read too dry in winter.
This is the counterintuitive part of basement cellars: the foundation walls push moisture in, a good envelope stops most of it, and the cooling coil removes water from the air every time it runs, so in heating season a basement cellar commonly drifts below 50% relative humidity without a humidifier. Wine Guardian's freestanding unit adds 0.42 lb of moisture per hour at 60°F, uses a field-replaceable evaporative drip pad, and is called on by the remote controller only when the sensor reads below target. The freestanding humidifier starts at $1,749.
Measure where the wine is, not where the air enters
The remote sensor reads temperature and humidity at rack height, midway along the longest wall, out of the supply airstream and away from the glass. A sensor next to the supply duct reads cold and dry and causes the system to over-humidify. For a full look at how humid regions change the plan, see the cluster pillar humid climate wine cellar cooling, and for target ranges see the wine cellar humidity control guide.
What Lighting and Racking Choices Fit a Luxury Basement Wine Cellar?
Lighting in a luxury basement wine cellar is low-heat LED, dimmable, on a timer or occupancy sensor, with display lighting concentrated on the glass-wall side and label-forward racking behind it. Racking is a mix of individual bottle storage for the bulk of the collection, display rows at eye level, and case or bin storage low on the back wall.
- Lighting heat: LED adds a fraction of the heat of halogen but still counts in the load estimate; a timer keeps display lighting from running all day behind the glass.
- Display versus storage: a typical 1,200 bottle plan puts about 150 to 200 bottles on display racks visible from the lounge and the rest in individual slots and bins deeper in the room.
- Materials: hardwood or powder-coated metal racking tolerates 55% to 65% relative humidity; untreated softwood and MDF do not.
- Airflow: racking stands off the exterior walls by at least an inch so no bottle rests against a cold foundation wall.
Where the display ends and the storage begins
The glass wall sets the tone of the room, but most of the value sits behind it in dense, well-organized storage. The wine cellar lighting guide covers fixture types and heat, and the dining room glass wine cellar case study goes deeper on glass specification when the display side is the whole point.
How Does a Ducted Wine Guardian System Install Outside the Cellar?
A ducted Wine Guardian system installs in a mechanical room, closet, or utility space next to the cellar and delivers conditioned air through insulated supply and return ducts, so nothing mechanical is visible or audible inside the wine room. The video below shows the ducted line and how it connects to the cellar.
Wine Guardian ducted cooling systems explained
A short overview of the ducted line, useful for seeing how the unit, duct collars, and remote controller fit together before you plan the mechanical room.
- Where the self-contained unit sits relative to the cellar
- How supply and return ducts connect through duct collars
- Where the remote interface controller and sensor go
How Do You Plan a Luxury Basement Wine Cellar Project?
Plan a luxury basement wine cellar in the order the building forces on you: resolve moisture, fix the room and mechanical-space layout, design the envelope, estimate the cooling load, select the configuration and model, then design racking and lighting around the equipment rather than the other way round. Skipping ahead to racking is the most common reason a cellar underperforms.
- Test the basement for moisture before framing. Check the slab and foundation walls after heavy rain, and correct drainage, sealing, or sump issues first. A qualified contractor should confirm the basement is dry enough to enclose.
- Fix the cellar footprint and the mechanical space together. Confirm the adjacent room can hold the unit, vent its exhaust heat, reach a drain, and give service access. If it cannot, plan for a ducted split or water-cooled configuration now.
- Design the envelope: insulation, vapor barrier, floor, and glass. Specify continuous insulation, a warm-side vapor barrier, a moisture-tolerant floor, and insulated sealed glazing, with every penetration sealed.
- Estimate the cooling load. Run the cooling calculator with real dimensions, the glass area, lighting wattage, and the warmest expected temperature in the mechanical room.
- Select the configuration and the model with margin. Compare the load with rated capacity at 80°F ambient. For the typical project the D050 is the model commonly selected; a licensed HVAC professional should confirm sizing, electrical, and clearances.
- Plan humidity control and sensor placement. Add a freestanding or integrated humidifier on the same controller, with the sensor at rack height away from the supply duct.
- Design racking and lighting around the ductwork. Position supply high and return low, keep racking off exterior walls, and put display lighting on a timer. Then request a price quote with the plan attached.
What Does a Finished Luxury Basement Wine Cellar Typically Deliver?
A finished luxury basement wine cellar built this way typically delivers a room held at 55°F to 58°F with the D050's published control accuracy of ±1°F, humidity in the 55% to 65% range with the humidifier engaged, no visible or audible equipment inside the cellar, and a mechanical room that a technician can service without entering the wine room. The collection sits behind glass at rack height, and the lounge side stays a lounge.
Typical outcome by design goal
| Design goal | How it was met | What to watch after handover |
|---|---|---|
| Stable storage temperature | D050 sized with margin, sealed envelope, insulated ducts | Run time in the first summer; long cycles suggest an envelope leak, not a unit fault |
| Humidity in range year-round | Freestanding humidifier on the remote controller, sensor at rack height | Drip pad condition and water supply; low readings in heating season |
| Silent, invisible equipment | Unit in the mechanical room on isolators, flexible insulated ducts, supply away from the glass | Duct connections and grille rattle after the first season |
| Glass wall without condensation | Insulated sealed glazing, supply air directed across racking | Fogging on humid days points to lounge-side humidity or a door seal |
| Serviceable for the long term | Access panels clear, condensate drained, parts sold individually | Annual professional service for the ducted unit; filter and coil checks in between |
Wine Cooling Expert, Wine Guardian Dealer
When a basement cellar fails, the unit gets the blame and the wall assembly gets ignored. In a luxury project the equipment is the smaller decision. The glass, the vapor barrier, and the mechanical room decide whether a correctly sized ducted unit can do its job quietly for ten years or fights the building every summer.
Cost is left out of this case study because it swings with racking, glass, and finishes more than with the cooling equipment; the cost to build a wine cellar guide covers the ranges. For a smaller conversion on the same principles, see the closet wine cellar conversion case study; for a harder above-grade heat load, see the garage wine cellar case study.
Is a basement good for wine storage?
Yes, a basement is the best starting point in most homes for wine storage because below-grade rooms stay cooler and more stable than upper floors and are shielded from sunlight. A basement still needs insulation, a vapor barrier, and a dedicated cooling system to hold 55°F to 58°F reliably, because seasonal swings and moisture through concrete are not controlled on their own.
Why are wine cellars in the basement?
Wine cellars are traditionally in the basement because soil temperature changes slowly, so a below-grade room stays closer to cellar conditions with less energy than an above-grade room. Basements are also dark, away from vibration sources on upper floors, and usually have a mechanical space nearby, which makes a ducted cooling installation simpler.
How to make a wine cellar in basement?
Make a basement wine cellar by first correcting any moisture problems, then framing and insulating the walls and ceiling with a warm-side vapor barrier, installing an insulated sealed door or glass wall, adding a cooling system sized for the room volume and glass area, and finishing with humidity control, low-heat LED lighting, and racking. A licensed HVAC professional should confirm the cooling design.
Where do I place the vapor barrier in a basement wine cellar?
Place the vapor barrier on the warm side of the insulation, which in a basement wine cellar is the side facing the rest of the house, the floor above, and any mechanical room, not the cold cellar side. It must be continuous across walls and ceiling, taped at seams, and sealed around duct, wiring, and water-line penetrations.
What are floor choices for a basement wine cellar that is damp?
For a damp basement wine cellar, choose a floor that tolerates 55% to 65% relative humidity over a sealed slab: porcelain or stone tile, sealed concrete, or sealed cork over a moisture barrier. Avoid carpet, laminate, and unsealed wood. If the slab is actively wet, drainage or sealing has to be corrected before any finish floor goes down.
What is the ideal humidity level for a wine cellar?
The ideal humidity level for a wine cellar is roughly 55% to 65% relative humidity, which Wine Guardian systems target when paired with an integrated or freestanding humidifier. Below about 50% corks can dry over time; above 70% labels and racking suffer. In a basement cellar the cooling coil removes moisture as it runs, so winter readings often fall low without a humidifier.
How to determine the size of wine cellar cooling unit?
Determine the size of a wine cellar cooling unit by calculating the room volume in cubic feet, then adjusting for insulation, glass area, lighting heat, and the warmest temperature where the unit will sit. Compare that load with the unit's rated BTU/h at 80°F ambient; the D050, for example, is rated at 6,320 BTU/h for roughly 650 to 3,000 cubic feet. A licensed HVAC professional should confirm the final selection.
Which cooling unit is best for a basement wine cellar?
For a finished basement wine cellar with an adjacent mechanical room, a ducted self-contained unit such as the Wine Guardian D025 or D050 is commonly selected because all equipment sits outside the cellar. If the mechanical room cannot vent exhaust heat, a ducted split such as the DS050 places the condenser elsewhere. The right model depends on the calculated load.
Planning a basement wine cellar of your own?
Send us the room dimensions, the glass area, and a photo of the mechanical space and we will check the ducted options against Wine Guardian published specifications, or browse every purchasable ducted model with current starting prices.
Keep planning
More project walkthroughs in our wine cellar applications hub. Estimate your basement cellar's load with the cooling calculator, then compare models in the ducted wine cellar cooling units collection.
This guidance is general and intended to help narrow the selection. Final sizing, installation design, electrical requirements, and configuration should be confirmed with Wine Guardian official documentation and a licensed HVAC professional or qualified contractor.
