Best Cooling Systems for Large Wine Cellars: Ducted, Split and Water-Cooled Options (2026)

Why Does a Large Wine Cellar Need a Different Cooling Approach?

A large wine cellar needs a different cooling approach because the heat load grows faster than the bottle count. A 1,000-bottle walk-in with aisles, a tasting table and a glass door commonly exceeds 1,500 cubic feet, and at that volume the largest through-the-wall unit, the TTW04B Sentinel at 3,760 BTU/h nominal, is no longer a candidate.

Three things change once a cellar passes roughly 1,500 cubic feet. First, wall and ceiling area increases, so conduction through insulation becomes the dominant load rather than door openings. Second, long rooms develop warm and cool ends unless supply air is distributed, which favors ducted delivery with more than one register. Third, the electrical requirement steps up: every Wine Guardian model rated above 6,320 BTU/h runs on 208-230 V single phase rather than a standard 115 V circuit, per Wine Guardian published specifications, 2026.

It helps to think in tons. One ton of refrigeration equals 12,000 BTU/h (Wikipedia, ton of refrigeration), so the D200 and DS200 at 15,680 BTU/h are roughly 1.3-ton systems, while the D088 range peaks near 0.8 ton. Residential wine cooling rarely needs more than two tons, but a 5,000 cubic foot commercial room with a glass wall can approach that figure.

What drives the load

Glass, ambient temperature and traffic matter more than bottle count

Bottles are thermal mass that helps stability once cool; they are not the load. The load is heat coming through walls, ceiling and floor, through any glass, from lighting, and from people and door cycles. A 1,500 cubic foot cellar in a 65°F basement with R-19 walls needs far less capacity than the same room beside a 95°F garage with a glass front. Run the cooling calculator with real dimensions and ambient temperatures before shortlisting a model, and read the wine cellar cooling sizing guide for the method behind the numbers.

Which Cooling Configurations Scale to a Large Wine Cellar?

Three Wine Guardian configurations scale to large wine cellars: self-contained ducted units (D088, D200), water-cooled ducted units (D088WC, D200WC), and ducted split systems (DS088, DS200). Through-the-wall and ductless split units stop below 4,300 BTU/h. Above 7,000 cubic feet, or where redundancy matters, the typical answer is two zoned units or a quote-based Pro Series system.

Large wine cellar cooling configurations compared (Wine Guardian, 2026)

Capacities and cellar volumes per Wine Guardian published specifications, 2026. Starting prices from Wine Guardian Dealer, August 2026. Pro Series pricing by quote.

When Is a Ducted D088 or D200 the Best Choice for a Large Cellar?

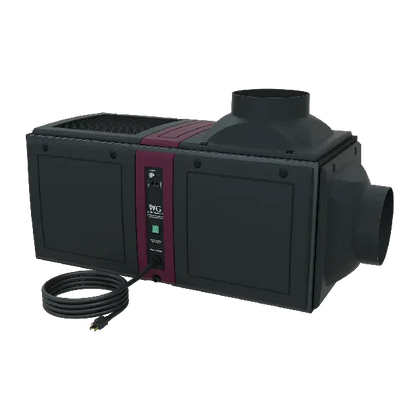

A self-contained ducted D088 or D200 is the typical first choice for a large wine cellar when a mechanical room, utility space or garage within a workable duct run can take the exhaust heat. The D088 covers roughly 850 to 4,500 cubic feet at 5,000 to 9,600 BTU/h, and the D200 covers roughly 1,500 to 7,000 cubic feet at 8,000 to 15,680 BTU/h.

Wine Guardian ducted units for mid-sized and large cellars

Per Wine Guardian published specifications, 2026. Starting prices from Wine Guardian Dealer, August 2026. Net capacity changes with ambient temperature at the condenser.

The D088 and D200 share a 41.5 by 22.5 by 19 inch cabinet, ±1°F control, a 55°F to 58°F storage range, an optional 1,635 W electric heat package for cold-climate cellars, ETL listing to UL 1995, and a standard warranty of 2 years parts, 1 year labor handled through the manufacturer. The practical differences are capacity, current draw and duct diameter: the D200 needs 12 inch round ductwork as a minimum, and undersized ducting is the most common reason a correctly sized large unit underperforms.

D088 or D200: how to decide

• Calculated load under about 8,000 BTU/h and volume under 4,500 cubic feet: the D088 is commonly selected, with margin left for a hot summer.
• Load between 8,000 and 15,000 BTU/h, or volume from 4,500 to 7,000 cubic feet: the D200 is the typical fit; a 12 inch duct path must be available.
• Load near the top of the D200 range: two units on separate zones, or a Pro Series DP200 by quote, are usually safer than one unit running flat out.
• Mechanical room that cannot be vented: move to the water-cooled or ducted split sections below.

When Does a Water-Cooled D088WC or D200WC Make Sense?

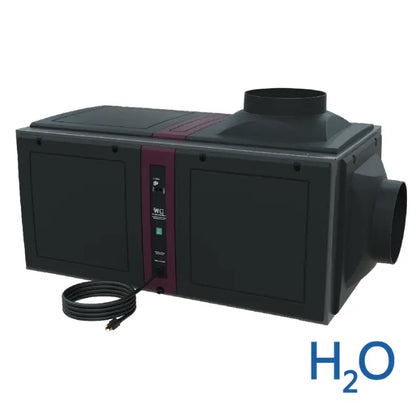

A water-cooled D088WC or D200WC makes sense when a large cellar sits in the interior of a building with no practical way to exhaust condenser air, when the mechanical space runs hot, or when condenser fan noise is unacceptable. The unit rejects heat into a water loop instead of the surrounding air, so the mechanical room does not heat up.

The published water requirements are modest: 1.20 GPM at 0.08 PSI pressure drop through 0.50 inch O.D. piping for the D088WC, and 2.50 GPM at 1.20 PSI through 0.63 inch O.D. piping for the D200WC, per Wine Guardian published specifications, 2026. Both keep the same 208-230 V electrical, the same cabinet, the same 55°F to 58°F range and the same duct minimums as their air-cooled siblings, and both mount internal components on rubber-in-shear isolators to reduce vibration.

Trade-offs

Plumbing replaces ventilation, and that has a cost

The water-cooled option adds roughly $836 (D088WC over D088) or $520 (D200WC over D200) at the starting price, plus supply, return and drain connections that a licensed contractor typically installs. In a commercial building with a water loop already in the mechanical room, that is often the cleanest path. In a house it usually means a domestic water connection with a drain, and the water cost has to be weighed against ducting an exhaust path. Browse both models in the water-cooled ducted systems collection.

When Is a Ducted Split DS088 or DS200 the Right Call?

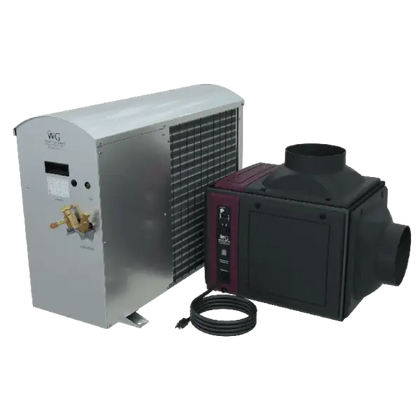

A ducted split DS088 or DS200 is the right call for a large wine cellar when the condenser can go outdoors or into a remote mechanical space and the fan-coil needs to sit close to the cellar. The DS088 is rated at 9,840 BTU/h for roughly 800 to 4,500 cubic feet and the DS200 at 15,680 BTU/h for roughly 1,500 to 7,000 cubic feet.

Wine Guardian ducted split systems for large cellars

Per Wine Guardian published specifications, 2026. Starting prices from Wine Guardian Dealer, August 2026. DS088 and DS200 run on 208-230 V single phase; the DS050 runs on 115 V.

The split architecture solves two large-cellar problems at once. The fan-coil is compact, at 23.81 by 25.04 by 19.65 inches, so it fits above a ceiling or in a closet next to the room and keeps duct runs short, while the outdoor-rated condenser, engineered by Wine Guardian to match the fan-coil, takes the compressor noise and the exhaust heat out of the building entirely. The DS models also offer a serving-temperature option down to 45°F, which matters for a restaurant wine room that stores whites and sparkling wines ready to pour.

The trade-off is installation. Refrigerant lines between the two sections must be run, evacuated and charged by a licensed HVAC professional, which adds labor cost and lead time compared with plugging in a self-contained ducted unit. For the quietest results in a home, see the quietest wine cellar cooling systems guide; for the SP-series Pro splits used on larger commercial projects, request a quote through the Pro Series collection.

Should a Large Wine Cellar Use One Big Unit or Two Smaller Units?

A large wine cellar should use two units on separate zones when the calculated load exceeds what a single D200 or DS200 can carry with margin, when the room is L-shaped or longer than about 30 feet, or when the collection cannot be allowed to warm during a service call. For a compact rectangular room inside the 1,500 to 7,000 cubic foot range, one correctly sized unit is the typical and lower-cost answer.

How dealers approach it

Two D088 units versus one D200: the same money, different risks

Two D088 units start at $16,370 combined against $11,440 for one D200, so redundancy costs roughly $5,000 more in equipment and adds a second duct path and circuit. Where a collection is worth many multiples of that, or the room is a working restaurant cellar, most buyers choose the pair. Where the cellar is a basement room in a temperate climate, one D200 with the Platinum warranty extension on the compressor and coils is the common choice. Talk through the layout with wine cellar design support before ductwork is drawn.

How Do You Control Humidity in a Large Wine Cellar?

Humidity in a large wine cellar is controlled by adding a humidifier to the cooling system, because every cooling coil removes moisture as it cools and a large unit removes more of it. Wine Guardian ducted and split units display humidity and reach 55% to 65% relative humidity with an integrated or freestanding humidifier connected to the system.

In a small cellar, a single freestanding humidifier usually keeps up. In a 3,000 to 7,000 cubic foot room the dry-out rate is higher for three reasons: the coil is larger and runs longer, the room has more wall area for vapor to migrate through, and commercial rooms open the door far more often. The Wine Guardian freestanding humidifier starts at $1,727 and can be placed where the return air will carry moisture back through the unit; very large or dry-climate rooms sometimes run two, one per zone, on the same ±10% RH control logic the units use.

Construction first

A vapor barrier does more for humidity than any humidifier

Humidification only works in a room that holds moisture. A large cellar with a missing or torn vapor barrier on the warm side of the insulation will pull moisture through the walls all winter and push it in all summer, and no humidifier catches up. Before specifying humidification, confirm the wall assembly with the vapor barrier guide and review target ranges in the wine cellar humidity control guide. Humidifiers for ducted and split systems are listed in the wine cellar humidifiers collection.

What Changes When the Large Cellar Is a Commercial Wine Room?

A commercial wine room changes the cooling brief in four ways: the door opens dozens of times a day, lighting and glass are usually maximized for display, downtime has a revenue cost, and the installation is typically specified by an HVAC professional against local mechanical codes. The equipment choices are the same D088, D200, D088WC, D200WC, DS088 and DS200, but sizing margin and redundancy move up the priority list.

Commercial checklist

Size for the busiest hour, not the average day

A restaurant cellar at 8 p.m. on a Saturday, with the door cycling, lights on and a full dining room radiating heat through the glass, is the design condition. Buyers of commercial wine cellar cooling units commonly add a serving-temperature zone at 45°F to 50°F for whites and sparkling, select the DS series for its 45°F option, and pair the room with a second unit or a Pro Series DP or SP system by quote. The commercial wine cellar cooling page walks through those decisions, the restaurant wine room case study shows a worked example, and trade buyers can register for the Pro Trade Program.

How Do You Plan the Cooling System for a Large Wine Cellar?

Plan a large wine cellar cooling system by fixing the volume and heat load first, choosing where the heat can go second, and selecting the model last. Working in that order prevents the two most expensive large-cellar mistakes: a mechanical room with nowhere to exhaust, and ductwork too small for the unit that the load actually requires.

1. Measure the room and calculate the load. Enter length, width, height, insulation, glass area and the warmest ambient temperature next to the cellar and the condenser into the cooling calculator. Add margin for a commercial door schedule.
2. Decide where the heat will go. A ventable mechanical room points to the D088 or D200; no ventilation points to the D088WC or D200WC; an outdoor condenser location points to the DS088 or DS200.
3. Check the electrical and duct path. All six large-cellar models need a 208-230 V circuit. Confirm space for 10 inch (088 models) or 12 inch (200 models) round ductwork between the unit and the cellar.
4. Choose one zone or two. Split rooms above about 5,000 cubic feet, L-shaped rooms and revenue-critical commercial rooms into two zones with two units, each with its own thermostat.
5. Specify humidification and controls. Add a freestanding humidifier per zone, and consider the remote interface controller so conditions can be read outside the cellar.
6. Confirm with a professional and request pricing. A licensed HVAC professional should confirm sizing, static pressure, clearances and electrical requirements. Then request a price quote with the drawings attached; Pro Series DP and SP systems are quoted the same way.
