Ducted Wine Cellar Cooling System Installation Guide: Layout, Venting and Duct Runs (2026)

What Does a Ducted Wine Cellar Cooling System Installation Involve?

A ducted wine cellar cooling system installation has five parts: a mounting location outside the cellar, a supply duct and a return duct to the wine room, a path for the condenser to reject heat, a condensate drain, and the electrical connection and controller setup described in the model manual. A self-contained ducted unit needs no refrigerant line work.

That last point is why ducted self-contained units are commonly selected for cellars next to living space. The evaporator, fans, compressor, condenser, and controls sit inside one cabinet in the mechanical space, and only two grilles are visible in the cellar. Compared with a through-the-wall unit, the cellar is quieter and the wall stays intact; compared with a ducted split, there is no copper line set, no evacuation and charge, and one location to service instead of two. Every model in the ducted wine cellar cooling units collection follows the same air-side approach.

What each wine cellar cooling configuration asks of the installation

Configuration details per Wine Guardian published specifications, 2026. Installer notes are typical practice; a licensed HVAC professional should confirm the final installation design.

Where this guide fits

Ducted layout, venting, and duct runs, not wiring

This guide covers the decisions that decide whether a ducted system performs to its rating: unit location, hot-side ventilation, duct size and route, and testing. Electrical supply, controller wiring, and clearances are model specific and belong to the manual on the Wine Guardian manuals page. For an overview of every configuration, start with the pillar guide, how to install a wine cellar cooling unit; for the choice between ducted and ductless, see ducted vs ductless wine cellar cooling.

Where Should a Ducted Wine Cellar Cooling Unit Be Installed?

A ducted wine cellar cooling unit should be installed in a ventilated space outside the cellar, such as a basement mechanical area, utility room, garage, or conditioned attic, within a short duct run of the wine room. The space needs enough air to absorb the rejected heat, access to the service panels, a level vibration-resistant mount, and a condensate drain route.

Start with the duct run, not the empty corner. The shorter and straighter the path to the cellar, the closer the system runs to its rating, so the best location is usually the nearest ventilated space that can take the unit's weight and heat. A garage that reaches 110°F in summer works only if the model's net capacity at that ambient still covers the load; the D025 is rated at 4,300 BTU/h at 80°F but 3,260 BTU/h at 110°F, per Wine Guardian published specifications, 2026. An unventilated closet is never a good location, because the unit reheats its own intake air.

Wine Guardian D025 and D050 installation recommendations

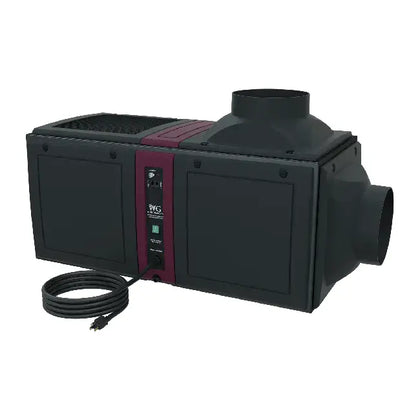

The D025 and D050 are the ducted units most often specified for residential cellars, and their installation recommendations share one structure: mount the unit level on a platform, shelf, or hangers rated for its weight; keep the service side accessible; connect full-size insulated supply and return ducts; run the 0.5 inch condensate drain to a floor drain, condensate pump, or approved receptor with continuous fall; and give the condenser a space that can absorb the heat. The D025 weighs 78 lbs and takes an 8 inch round duct minimum; the D050 weighs 125 lbs and takes 10 inch. Clearances, opening dimensions, and the electrical supply are in the manual and CAD drawings on the Wine Guardian manuals page; the official walkthrough is on the Wine Guardian ducted installation page.

Wine Guardian ducted and ducted split units: installation figures that decide the location

Capacities, cellar ranges, duct sizes, and weights per Wine Guardian published specifications, 2026. All models use a 0.5 inch condensate drain connection. Starting prices from Wine Guardian Dealer, August 2026.

Location checklist

Four questions that qualify a mechanical space

Can the space absorb the rejected heat continuously without climbing past the ambient the unit is rated for? Can a technician reach the panel side without moving the unit? Can the condensate reach a drain, pump, or receptor with continuous fall? Does the duct route stay short and full-size? Four yes answers qualify the space; a no on the first points to a water-cooled ducted unit or a ducted split. Run the cooling calculator with the warmest temperature the location will see before you commit to a model.

How Much Ventilation Does a Ducted Wine Cooling Unit Need?

A ducted wine cooling unit needs ventilation on the condenser side, not in the cellar. The cellar itself is sealed and insulated, and the supply and return ducts provide all the air movement it requires; the mechanical space holding the unit must be large enough, or ventilated enough, to absorb the condenser's rejected heat without warming up.

This is the question behind most searches for wine cellar ventilation, and the two halves get confused. Inside the cellar you do not want outside air; it brings heat, humidity swings, and odors, and the ducts already circulate and condition the room's air. Outside the cellar, the condenser pulls in room air, dumps the cellar's heat into it, and pushes it out warmer. If that air has nowhere to go, the intake temperature rises and net capacity falls, which is the failure Wine Guardian's ducted dos and don'ts warns about: never vent the hot side into a small sealed room.

Three ways to handle the rejected heat

• A large open space. A basement or garage with enough air volume absorbs the heat and lets the house or outdoor air carry it away. This is the typical option for the D025 and D050.
• Ducted exhaust. Where the space is smaller, the condenser exhaust can be ducted to a larger room or outdoors using the connections the model allows. Keep the exhaust and the condenser intake apart so the unit does not breathe its own discharge.
• A water-cooled or split configuration. If the space cannot be ventilated, a D025WC rejects heat through a water loop, and a ducted split moves the condenser outdoors entirely.

How Do You Plan the Duct Layout for a Ducted Wine Cellar Cooling System?

Plan the duct layout around three rules: keep every run as short and straight as the building allows, use duct at least as large as the unit's collars (8 inch round for a D025, 10 inch for a D050 or D088, 12 inch for a D200), and insulate any duct that passes through warm space. Stay within the model's maximum equivalent duct length, counting elbows.

Every foot of duct and every elbow costs airflow, and a ducted unit only delivers rated capacity when it moves rated airflow. Flexible insulated duct is the usual choice because it absorbs air noise and bends around framing, but it must be pulled taut and supported; a sagging or kinked flex run behaves like a much longer one. The Department of Energy notes that leaky or uninsulated ducts waste a large share of the energy spent conditioning air (Department of Energy, minimizing energy losses in ducts); in a wine cellar the loss shows up as warmer supply air at the grille and condensation on the outside of the duct.

Where the supply and return grilles go

Place the supply and return grilles so conditioned air has to cross the cellar before it is drawn back: supply high on one wall or in the ceiling, return low on the opposite side. Two adjacent grilles short-circuit the airflow and leave the far end of the room warm. Keep the supply from blowing on the remote temperature and humidity sensor, which should sit among the racks so the controller reads the room, not the duct. Sentinel Series duct collars and 8 inch and 10 inch flexible ductwork are in the parts and accessories collection.

Ducted layout rules and what breaking them costs

Layout rules summarized from the Wine Guardian ducted dos and don'ts video; equivalent duct length limits are model specific and are published in each unit's specification sheet.

Attic and remote runs

Running ducts through an attic or a long chase

Ducts can pass through an attic or an unconditioned chase, but every foot counts against the model's maximum equivalent length and every foot needs insulation and support. An attic run that works in April can deliver warm air in August if the insulation is thin or the flex sags between joists. When the only route is long, the fix is a shorter route to a different space, a larger unit sized for the loss, or a ducted split with the fan-coil close to the cellar. See the DIY vs professional wine cellar installation guide for where a duct designer earns the fee.

What Are the Steps to Install a Ducted Wine Cellar Cooling Unit?

A ducted wine cellar cooling unit is installed in eight steps: confirm the heat load and model, qualify the mechanical space, mount the unit level, cut the supply and return openings, run and insulate the ducts, connect the condensate drain, complete the electrical connection and controller per the manual, and commission over several days. This is a planning overview, not a substitute for the manual.

1. Confirm the heat load and the model. Enter the cellar dimensions, insulation, glass area, and the warmest ambient at the unit location into the cooling calculator, then choose the ducted unit whose net capacity at that ambient covers the load. Insulation and a vapor barrier must already be in place; see the wine cellar insulation guide.
2. Qualify the mechanical space. Check heat absorption or an exhaust path, service access, a drain route with continuous fall, and a duct route that stays within the model's maximum equivalent length, elbows included.
3. Mount the unit level and supported. Set the unit on a platform, shelf, or hangers rated for its weight, level so the condensate pan drains, with the manual's clearances on the intake, exhaust, and service sides.
4. Cut the supply and return openings. Locate the openings so air crosses the cellar between them, cut them to collar size, fit the collars and grilles, and seal the openings to the vapor barrier.
5. Run, support, and insulate the ducts. Pull insulated flexible duct taut with the fewest elbows possible, support it so it cannot sag, seal every connection, and wrap any bare duct passing through warm space.
6. Connect the condensate drain. Route the 0.5 inch drain connection to a floor drain, condensate pump, or approved receptor with continuous fall and a trap where the manual calls for one. A drain that runs uphill is the usual source of water in a mechanical room.
7. Complete the electrical connection and controller setup per the manual. Power supply, disconnects, and controller wiring are model specific and code dependent; a licensed electrician or HVAC professional completes this step from the manual on the Wine Guardian manuals page. Place the remote sensor in the cellar away from the supply stream.
8. Commission over several days. Set the controller to the target temperature, typically 55°F, and log temperature and humidity for two to three days with the door closed. The cellar should reach setpoint, hold it, and cycle the unit off.

How Does a Ducted Split Wine Cooling System Installation Differ?

A ducted split wine cooling system installation separates the ductable fan-coil from the condenser: the fan-coil sits in an attic, closet, or mechanical room near the cellar and ducts air in, while the condenser goes outdoors or in a remote ventilated space. A refrigerant line set joins them and must be run, evacuated, and charged by a licensed HVAC technician.

The duct rules do not change: the DS025 uses the same 8 inch round minimum as the D025 and the DS050 the same 10 inch as the D050, per Wine Guardian published specifications, 2026. What changes is where the heat goes and who does the work. With the condenser outdoors the hot-side ventilation problem disappears, and because the fan-coil weighs 35 lbs on the DS025 and 54 lbs on the DS050, it fits tight mechanical rooms and ceiling spaces that would not take a self-contained cabinet. Wine Guardian names the ducted split its most flexible configuration to install for long duct runs, cramped mechanical rooms, and condenser air that is hard to exhaust.

Condenser placement for a ducted split

• Location: outdoors on a pad or wall bracket, or in a ventilated mechanical room; never in an unventilated enclosure. The DS025 condenser weighs 75 lbs and the DS050 condenser 76 lbs, so the mount must be rigid and vibration resistant.
• Airflow clearance: keep the manufacturer's clearance around the coil and fan discharge so the condenser does not recirculate its own exhaust; the figures are in the ducted split manual on the manuals page.
• Line set: keep the run short and direct, insulate the suction line, and have the technician evacuate the system to the manual's specification before charging. A skipped vacuum is the ducted split mistake that shows up months later as poor capacity.
• Ambient range: an outdoor condenser sees winter as well as summer. Confirm the low-ambient option for your climate when you request a price quote, and have a licensed HVAC professional confirm the placement.

Self-contained or split

Choosing between a D025 and a DS025

Both cover roughly the same cellar range. The D025 starts at $6,043 and needs one ventilated space and no refrigerant work; the DS025 starts at $8,329, needs a licensed HVAC technician, and in return removes the ventilation problem and puts the compressor outdoors. If a ventilated space within a short duct run exists, the self-contained unit is the simpler install; if not, the split is the configuration that makes the cellar possible. See self-contained vs split wine cooling systems for the full comparison.

How Do You Know a Ducted Wine Cellar Cooling Installation Is Working Properly?

A ducted wine cellar cooling installation is working properly when the cellar reaches its setpoint, typically 55°F to 58°F, holds it within about a degree, and the unit cycles off rather than running continuously, verified over two to three days with an independent thermometer and hygrometer among the racks. Condensation on walls, glass, or ducts means the envelope or the duct run is wrong.

Test over days, not minutes. The first hours only prove the unit runs; the pull-down and the first warm afternoon prove the sizing and the layout. Log temperature and humidity morning and evening. A cellar that holds at night and drifts up in the afternoon points at the hot side; one that never settles points at duct length, a necked-down duct, or an envelope leak. Humidity that swings with the unit's cycles usually means unsealed duct joints pulling mechanical-room air into the return.

Thermostat and controller instructions

Wine Guardian thermostat and controller instructions are model specific. Sentinel Series ducted units use an integral controller with a remote temperature and humidity sensor that reads the cellar; button sequences, setpoint ranges, humidity display, and error codes are in the operating manual and quick-start guide on the Wine Guardian manuals page, and this article does not reproduce them. Two placement rules cover most controller complaints: keep the sensor out of the supply airstream, and give the cellar 24 to 48 hours to settle before changing the setpoint again.

What Are the Most Common Ducted Installation Mistakes, and How Do You Maintain the System?

The most common ducted wine cooling installation mistakes are a duct run beyond the model's equivalent length, a duct necked down below collar size, kinked or uninsulated flex duct, a condenser exhausting into a small sealed room, unsealed duct connections, a drain without fall, and a skipped heat load calculation. On a ducted split, add a skipped vacuum and an enclosed condenser.

Maintenance schedule for a ducted wine cooling unit

• Every 3 to 6 months: clean or replace the air filter, check that the condensate drain flows, and look at duct insulation and joints for sweating or gaps. Dusty garages sit at the short end of that range.
• Every 6 to 12 months: clean the condenser coil and check the intake and exhaust for obstructions; on a ducted split, have the technician check the refrigerant charge and line insulation.
• Annually: a professional service visit covering coils, fan motors, controls, and drain, with a review of the logged temperature and humidity. Wine Guardian sells evaporator coils, fan motor kits, control boards, and condensate pump kits as replacement parts, which keeps a ducted unit serviceable in place for years.

DIY or professional

Who should install a ducted wine cooling system

A self-contained ducted unit is within reach of a contractor or an experienced handyperson: connect the ducts, make the drain connection, and have the electrical connection completed per the manual. A ducted split is not a DIY project; the refrigerant work requires a licensed HVAC technician, and the warranty depends on it. Either way, a licensed HVAC professional should confirm the duct design and ventilation path before the walls close. The through-the-wall installation guide covers the simpler configuration for cellars that cannot accommodate ducts.
