Written by Jim Hopper, Wine Cooling Expert · Updated August 2026
How Do You Design a Wine Cellar Room That Works at Any Size?
Design a wine cellar room in this order: fix the footprint and aisle first, then choose racking configurations that hit your bottle count, then pick materials that survive 55°F and 60 percent relative humidity, and only then add glass, lighting and seating. Every design idea in a photograph has a consequence you cannot see in the photograph. A label-forward display wall costs you roughly two thirds of the bottles that wall could have held, and a glass entry wall can double the cooling load of a small room.
Below: the four constraints that shape every wine room, layouts by room size, racking configurations and what each does to capacity, display against bulk storage, materials for a humid room, the design decisions that change the cooling load, small rooms against large cellars, and FAQs.
Good wine cellar design starts with dimensions, not decor. Plan on roughly 10 bottles per square foot of single-depth rack face and about 7 feet of usable height, which puts a small 25 to 45 square foot room in the 600 to 1,100 bottle range and a 100 to 200 square foot cellar between 1,800 and 3,500 bottles. Keep a 30 to 36 inch aisle, or 42 to 48 inches where two people pass or a ladder is used. Then check the design choices that move the cooling load: glass area, ceiling height, open sightlines to warm rooms, and lighting inside the envelope.
The numbers that shape a wine cellar room design
- Design order: footprint and circulation, then racking and capacity, then materials, then glass, lighting and seating
- Planning density: about 10 bottles per square foot of single-depth rack face, roughly 60 to 70 bottles per linear foot of wall at 7 feet of usable height
- Aisle width: 30 to 36 inches for one person, 42 to 48 inches where two people pass or a rolling ladder is used
- Design conditions: most residential cellars are held near 55°F with relative humidity in the 55 to 65 percent band
- Biggest load drivers in a design: glass area, ceiling height, open sightlines to warm rooms, and fixtures inside the insulated envelope
What Separates a Wine Cellar Design That Works From a Mood Board?
A working wine cellar design resolves four constraints at once: the envelope that holds temperature and humidity, the capacity the room has to reach, the circulation a person needs to actually pull a bottle, and the cooling load the design creates. Photographs show only the fourth layer, the finish.
That is why two rooms with identical square footage can differ by 1,500 bottles, or why one holds 55°F without effort while the other runs a cooling unit continuously. The design ideas below are organized around those consequences: what each move does to capacity, to access, to the building envelope, and to the heat the equipment has to remove. Budget context for each of these decisions is in our pillar guide to what it costs to build a wine cellar.
1. Envelope before finish
Insulation, the vapor barrier and the door decide whether the room can hold conditions at all. Racking, stone and lighting are installed on top of that envelope and are expensive to remove if the envelope is wrong.
Insulation guide →2. Capacity and circulation together
Every inch of aisle is an inch not racked, and every inch of racking removed from the aisle makes the room harder to use. Settle the aisle width and the rack depth on paper before choosing a style.
Common build mistakes →3. Load follows design
Glass area, ceiling height, open sightlines and in-cellar fixtures set the cooling load long before a model is chosen. Design first, then size the equipment against the room you actually drew.
Cooling calculator →How Should You Lay Out a Wine Cellar Room by Size and Shape?
Lay out a wine cellar room by subtracting circulation from the footprint first. Reserve a 30 to 36 inch aisle for one person, or 42 to 48 inches where two people pass or a rolling ladder is used, then rack whatever wall is left at a single depth of roughly 12 to 14 inches.
Shape matters as much as area. A long narrow room racks efficiently because almost all of its perimeter faces the aisle. A square room of the same area loses capacity to corners, where two rack runs meet and the last several inches of each become unreachable. Corners are usually solved with an angled return, a quarter-round display column, or by leaving one corner deliberately open for a ladder or a service panel.
Wine cellar room layouts and planning capacity by footprint
| Room footprint | Workable layout | Aisle and access | Planning capacity band | Design note |
|---|---|---|---|---|
| Under-stair or closet, 6 to 15 sq ft | One or two racked faces, reach-in only | No internal aisle; the door opening is the access | About 250 to 550 bottles | Design it as a cabinet, not a room; depth beyond arm's reach is wasted |
| Small room, 25 to 45 sq ft | Two long walls racked, one aisle | 30 to 36 in aisle | About 600 to 1,100 bottles | A long narrow plan beats a square one at this size |
| Mid-size room, 50 to 90 sq ft | Three walls racked, one aisle, one display bay | 36 in aisle, 42 in in front of the display bay | About 1,100 to 1,800 bottles | Room for a narrow tasting ledge without losing an aisle |
| Large cellar, 100 to 200 sq ft | Full perimeter plus a peninsula or island | Two aisles at 36 to 42 in, ladder track on the tallest run | About 1,800 to 3,500 bottles | Islands add capacity and a work surface but consume the middle of the room |
| Commercial or collector room, 200 sq ft and up | Bays separated by cross aisles, zoned storage | 42 to 48 in main aisle, 36 in cross aisles | 3,500 bottles and up | Plan service access to the cooling equipment into the layout, not around it |
Planning figures are Wine Guardian Dealer editorial guidance for 2026 and assume single-depth individual bottle racking at roughly 10 bottles per square foot of rack face with about 7 feet of usable height. Display rows, bins, doors and equipment openings reduce them. Confirm final capacity with your racking supplier and final dimensions with a qualified contractor.
Draw the aisle before you draw the racking
A rolling ladder needs clear floor along its whole track, a bottle pulled from a top row needs headroom in front of the rack, and a door that swings inward eats an entire rack bay. Decide the door swing, the ladder run and the aisle width first, then fill the remaining wall. In a narrow room, widening the aisle by 6 inches usually means dropping one wall from double-depth to single-depth racking, which roughly halves that wall's capacity. That is a trade worth making deliberately rather than discovering it during installation.
Which Wine Racking Configuration Fits Your Room and Your Collection?
Racking configuration is the single biggest lever on capacity in a wine cellar design. Single-depth individual bottle racking stores roughly 10 bottles per square foot of rack face, diamond bins store more but hide every label, and a label-forward display row stores about a third to a half as much as the wall behind it could.
Most rooms mix three or four configurations rather than committing to one. A common pattern is individual bottle racking on the long runs for the drinking collection, bins or case shelving low down for wines bought by the case, and one label-forward display bay at eye level opposite the door as the visual focus of the room.
Wine racking configurations compared by density, visibility and use
| Racking configuration | Planning density | Label visibility | Commonly selected for | Trade-off |
|---|---|---|---|---|
| Single-depth individual bottle | About 10 bottles per sq ft of face | Neck and capsule only | Mixed collections that are drunk from regularly | Uses the most wall area per bottle stored |
| Double-depth individual bottle | Roughly double single depth | Front row only | Large collections with duplicate bottles | Back row needs an inventory system to stay usable |
| Diamond bins and cube bins | About 15 to 20 bottles per sq ft | None once stacked | Case buys of a single wine | No bottle-level access; the wrong bottle means unstacking |
| Case and bulk shelving | About 12 to 18 bottles per sq ft in cases | None | New arrivals, futures, wholesale quantities | Reads as storage, not display; usually placed low or behind a partition |
| Label-forward display rows | About 3 to 5 bottles per sq ft | Full front label | Showing 20 to 60 bottles at eye level | The most expensive capacity in the room per bottle |
| Horizontal waterfall and archway features | About 4 to 8 bottles per sq ft | Partial | Dividing bays and creating a focal point | Decorative capacity; plan it into the bottle count, not on top of it |
Densities are Wine Guardian Dealer editorial planning figures for 2026 for standard 750 ml Bordeaux bottles and vary by rack manufacturer, bottle diameter and opening size. Confirm exact counts with your racking supplier.
Racking decisions that quietly change the room
- Rack depth: single depth is usually 12 to 14 inches and double depth 24 to 28 inches, which can turn a comfortable aisle into a tight one on both walls of a small room.
- Usable height: most designs stop individual bottle racking at about 7 feet and use the space above for display, arches, or nothing at all. Anything above that needs a ladder and a place to stand it.
- Bottle diameter: Burgundy, Champagne and large-format bottles do not fit standard Bordeaux openings. Designate a bay with larger openings rather than discovering the problem after installation.
- Airflow behind the racks: racking pressed flat against an exterior wall blocks circulation and creates a cold, damp pocket. Most installers hold racking off the wall and leave the supply air path clear.

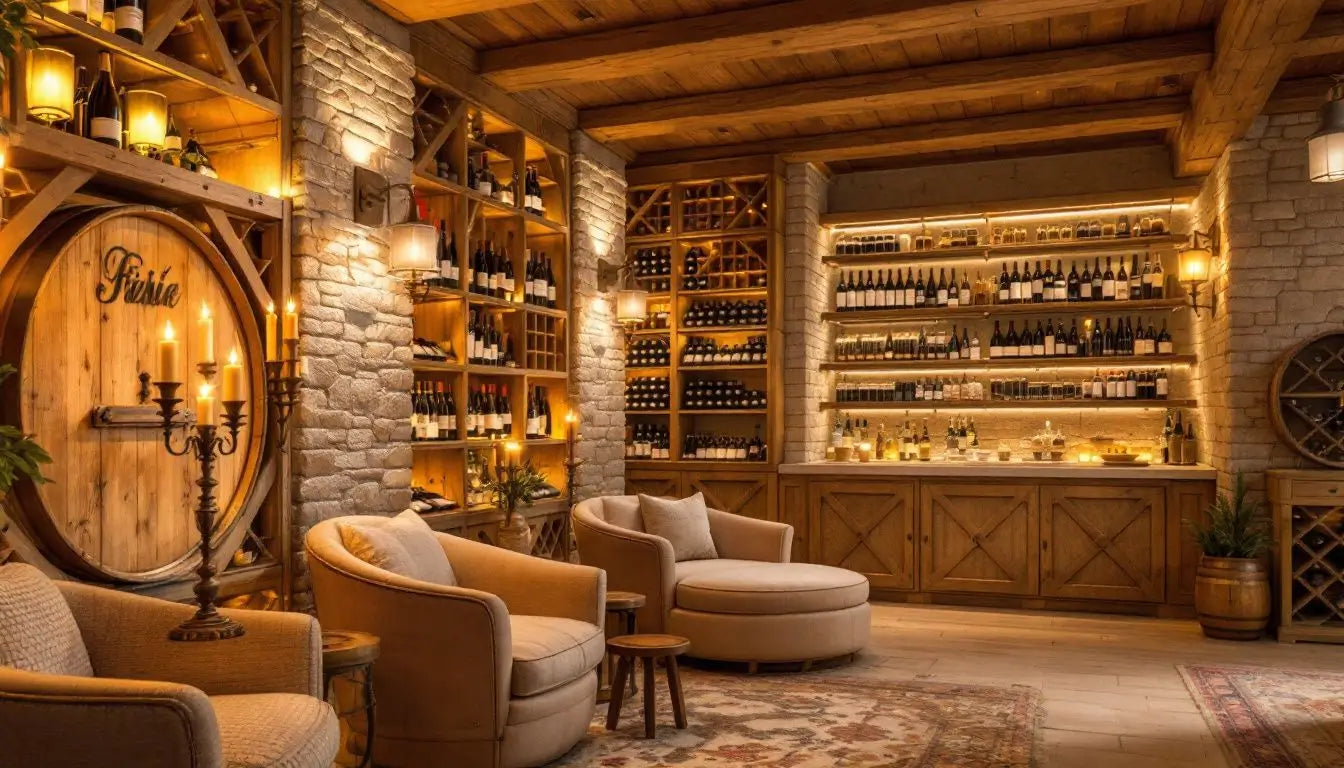

Custom racking earns its cost in awkward rooms
Modular racking is efficient in a rectangular room with a flat ceiling. Custom racking earns its price where the room fights you: under a stair, against a sloped ceiling, around a structural column, or where a bay has to be sized for magnums. The practical test is whether custom work recovers wall area that modular units would waste, not whether it looks bespoke.
How Do You Balance Display, Bulk Storage and a Tasting Area?
Decide what percentage of the room is allowed to be display before you choose a style. A common split in residential wine rooms is 15 to 25 percent display and 75 to 85 percent dense storage, because display rows store roughly a third to a half of what the same wall would hold in individual bottle racking.
Position display where it is seen and dense storage where it is not. The wall opposite the door and the run visible through a glass panel are worth the capacity they cost. The wall behind the door swing, the run under a sloped ceiling and the lowest 18 inches of every wall are the places for bins and case shelving, since nobody reads labels at ankle height anyway.
Seating and tasting areas, and what they cost you
A tasting table inside the cellar is the most common design request and the one with the most consequences. People are a heat source, a seated group opens the door repeatedly, and 55°F is uncomfortable for more than a few minutes. The design that usually works better is a tasting area immediately outside the cellar at normal room temperature, separated by an insulated glazed wall so the collection is still the view.
- Seating inside the cellar: possible in rooms above roughly 100 square feet, but expect a higher intermittent load and plan a serving-temperature spot rather than heating the room.
- Tasting area adjacent, glass between: keeps the cellar at storage conditions, moves the people load outside the envelope, and still delivers the display. Glass design details are covered in our glass wine cellar guide.
- Counter or ledge only: a 12 to 18 inch decanting ledge costs one rack bay and adds the working surface most owners actually use.
- Dining room integration: a glazed cellar wall facing a dining room is a display decision with a real load cost, covered in our dining room glass wine cellar guide.
Wine Cooling Expert, Wine Guardian Dealer
The room I get called about twice a year is the one where the owner put a table and four chairs inside a 60 square foot cellar. The cooling unit was sized for the room, not for four people and a door that opens twenty times an evening, and it never gets a chance to settle. Put the seats on the warm side of the glass and the same equipment holds 55°F all night.
Which Materials and Finishes Hold Up in a Humid Wine Room?
A wine room is a continuously humid space, so materials are selected for dimensional stability at 55 to 65 percent relative humidity rather than for looks alone. Stable hardwoods, metal, stone, brick and moisture-tolerant board are the usual palette; softwoods that off-gas, ordinary MDF, carpet and untreated steel are the usual failures.
Materials commonly selected for cellar interiors
- Racking timber: mahogany, redwood, white oak and other stable, low-aroma hardwoods. Aromatic species such as cedar and pine can transfer smell to corks over years, which is why they are generally avoided inside the envelope.
- Metal racking: powder-coated or stainless steel gives thin profiles and a contemporary look, and does not move with humidity. Check the coating specification, because plain steel corrodes in a cellar.
- Stone and brick: excellent for accent walls and thermal mass, heavy enough to require structural confirmation, and best installed over the vapor barrier rather than instead of it.
- Wall board and finishes: moisture-resistant board with a water-based, low-odor finish. Every wall assembly needs insulation and a correctly placed vapor barrier behind it, detailed in our wine cellar insulation guide.
- Flooring: tile, stone, sealed concrete and stable engineered wood are the usual choices; carpet and softwood are not. Full detail is in the wine cellar flooring guide.
Wood, stone and metal each behave differently in a cellar
Wood is warm, absorbs and releases moisture, and needs stable species and a tolerant finish. Stone and brick add mass and texture and never move, but they add weight and cost. Metal is dimensionally stable and visually thin, which is why it dominates modern display walls. Most successful rooms combine two of the three rather than all three, so the collection stays the focus.
Which Design Decisions Quietly Change the Cooling Load?
Four design decisions move the cooling load more than any other: how much glass the room has, how high the ceiling is, whether the cellar has an open sightline to a warm room, and how much equipment sits inside the insulated envelope. All four are usually made for visual reasons and paid for in equipment capacity.
Glass is the largest of the four. Even a high-performance insulated glass unit has a fraction of the thermal resistance of an insulated wall assembly, and the United States Department of Energy notes that windows and glazed openings are among the largest sources of heat gain and loss in a home (Department of Energy, windows, doors and skylights). A glass wall is a legitimate design choice, but it has to be in the load calculation from the start, not discovered afterwards.
How common wine room design choices affect the cooling load
| Design decision | Effect on cooling load | Typical design response |
|---|---|---|
| Full-height glass wall or all-glass door | The largest single increase in most residential designs | Insulated glazing units, glass kept off exterior and sun-facing walls, and the glass area entered in the load calculation before a unit is chosen |
| Ceiling above 8 feet | Adds volume, and therefore load, without adding reachable racking | Cap individual bottle racking near 7 feet, use the space above for display or arches, and size on the full volume |
| Open sightline to a warm room with no door | The cellar effectively borrows the adjacent room's conditions | Close the opening with an insulated, weatherstripped glazed door; an arch or pass-through rarely holds conditions |
| Accent and rack lighting inside the envelope | Continuous internal heat gain whenever the lights are on | Low-heat LED fixtures on dimmers and timers, kept out of rack bays; see our wine cellar lighting design guide |
| Seating for two to six people | Intermittent load from occupants plus repeated door openings | Move the seating outside the glass, or design with capacity margin and a professional load review |
| Exterior wall, slab-on-grade or an attic above | Raises the peak summer load and the risk of condensation | Continuous insulation and a correctly placed vapor barrier before racking is installed |
Directional design guidance from Wine Guardian Dealer, 2026. A licensed HVAC professional should confirm the final load calculation for your room.
Once the design is settled, the room decides the configuration. A small closet or under-stair cellar with an adjoining interior room typically takes a through-the-wall unit such as the TTW01B Sentinel, starting at $4,069. A finished room where no equipment should be visible typically takes a ducted unit such as the D025, rated at 4,300 BTU/h at an 80°F ambient condenser inlet for cellars of roughly 250 to 2,000 cubic feet and starting at $6,043. A glass display or wine wall typically takes a wine wall unit such as the CS025, rated at 2,970 BTU/h and starting at $9,027. Capacities per Wine Guardian published specifications, 2026. Browse every configuration in the wine cellar cooling units collection.
Treat glass as one design decision with a known cost
Glass buys sightlines, daylight and the display value that makes the room worth building. It costs thermal performance, adds condensation risk on the warm side, and lets ultraviolet light reach labels unless the glazing is specified for it. Keep the glass to the faces that are actually seen, specify insulated units, and read the failure modes in 7 glass wine cellar problems and how to solve them before signing off a drawing.
Check the load your design actually creates
Enter the room dimensions, ceiling height, insulation and final glass area to estimate the cooling load, then compare that figure with the rated capacity of the configurations your layout allows.
Featured Wine Guardian Systems
How Does Wine Cellar Design Change Between Small Rooms and Large Cellars?
Small rooms are won by removing waste: shallow racking, an outward-swinging door, no internal aisle where a reach-in works, and one display bay instead of three. Large cellars are won by zoning: separate storage, display and service areas so the room stays usable as it fills.
In a room under about 45 square feet, every design flourish is measured against the bottles it costs. Arches, columns and thick trim look proportionate in a photograph of a large cellar and swallow a quarter of a small one. Small-room specific moves, including under-stair and closet conversions, are covered in depth in our guide to small wine cellar design ideas.
Above roughly 100 square feet the problems invert. Bottle counts pass the point where memory works, so labelling and zoning matter more than any single rack. Ladders and upper storage need clear floor. Airflow has to reach the far end of the room, which is where ducted equipment and properly placed supply and return points earn their cost, and where equipment service access has to be designed in rather than improvised later.
Why larger rooms usually end up ducted
A short overview of ducted wine cellar cooling, the configuration most often specified once a room is large enough that air has to be distributed rather than blown from one wall.
- Where the equipment sits when nothing is allowed inside the finished room
- How supply and return placement affects even temperature across a long cellar
- What the duct run and service access mean for the room layout
Shallow, reach-in and single-purpose
The most efficient small wine rooms rack one or two faces at single depth, put the door on the long wall so the swing does not cross racking, and treat the space as a fitted cabinet rather than a room to walk into. Under-stair and closet conversions follow the same logic, with the added constraint of a sloped or low ceiling that decides where the tallest racking can go.
How Do You Turn Wine Cellar Design Ideas Into a Buildable Plan?
Work from the fixed constraints outward. Measure the room, subtract the aisle, decide the bottle target, allocate racking configurations to reach it, choose materials, then place glass, lighting and seating and re-run the cooling load with those decisions included.
- Measure the room and record what cannot move. Length, width, ceiling height, door position and swing, structural columns, ducts, and any exterior wall or slab. These fix the layout before any style decision.
- Subtract circulation. Reserve 30 to 36 inches of aisle for one person, or 42 to 48 inches where two people pass or a ladder runs, and mark the door swing on the plan.
- Set a bottle target and a growth allowance. Count the current collection, then design for the number you expect in five years. Most owners fill a cellar faster than they planned.
- Allocate racking configurations to reach the target. Use the density table above: individual bottle racking on the long runs, bins or case shelving low and out of sight, one display bay where it is actually seen.
- Choose materials for 55°F and 60 percent relative humidity. Stable hardwoods, coated metal, stone, moisture-resistant board and a tolerant floor. Confirm the vapor barrier and insulation detail with a qualified contractor before finishes.
- Place glass, lighting and seating last, then recalculate. Enter the final glass area, ceiling height and fixture load in the cooling calculator and treat the result as a first estimate.
- Have the design reviewed before ordering. A licensed HVAC professional should confirm the cooling load, equipment placement and electrical requirements, and local codes apply to the wall, door and electrical work. Request a price quote to have the drawings checked against Wine Guardian configurations.
How do I design a custom wine cellar at home?
Design a custom wine cellar in five steps: measure the room and mark what cannot move, subtract a 30 to 36 inch aisle, set a bottle target, allocate racking configurations to reach it, then choose materials and place glass and lighting. Recalculate the cooling load once those decisions are final.
What size should a wine cellar room be?
There is no minimum size, only a minimum depth. A reach-in closet of 6 to 15 square feet holds roughly 250 to 550 bottles, a 25 to 45 square foot room holds about 600 to 1,100, and a 100 to 200 square foot cellar holds about 1,800 to 3,500 with single-depth racking.
How many bottles fit in a wine cellar?
Plan on about 10 bottles per square foot of single-depth rack face, or roughly 60 to 70 bottles per linear foot of wall at 7 feet of usable height. Diamond bins hold more and hide labels, while label-forward display rows hold about a third to a half as much.
What is the best layout for a wine room?
A long narrow plan with racking on both long walls and a single 30 to 36 inch aisle is the most efficient layout for most rooms, because nearly all of the perimeter faces the aisle. Square rooms lose capacity in corners and usually need an angled return or a display column there.
Do glass walls in a wine cellar affect cooling?
Yes. Glass has a fraction of the thermal resistance of an insulated wall, so a glass wall or all-glass door is usually the largest single load increase in a residential wine cellar design. Use insulated glazing units, keep glass off sun-facing exterior walls, and include the glass area in the load calculation.
What materials are best for a wine cellar?
Stable, low-aroma hardwoods such as mahogany, redwood and white oak, coated or stainless metal racking, stone or brick accents, moisture-resistant board and a tile, stone or sealed concrete floor. Avoid aromatic softwoods, ordinary MDF, carpet and untreated steel, which fail at cellar humidity.
What are common mistakes in wine cellar design?
The most common are designing the racking before the aisle, adding glass without recalculating the cooling load, building seating inside a small cellar, installing finishes over an incomplete vapor barrier, and racking above reach with nowhere to stand a ladder. All of them are cheaper to fix on paper.
Can you put a tasting table inside a wine cellar?
You can in rooms above roughly 100 square feet, but occupants and repeated door openings add load and 55°F is uncomfortable for long. A tasting area immediately outside the cellar behind an insulated glazed wall keeps storage conditions stable and still shows the collection.
What ceiling height do you need for a wine cellar?
Around 8 feet suits most designs, because individual bottle racking is usually capped near 7 feet and the space above becomes display or arches. Higher ceilings add volume and cooling load without adding reachable storage, so count the full volume when the load is calculated.
Ready to check your wine room design against real equipment?
Send us your room dimensions, glass area and layout drawing and we will match the design to the Wine Guardian configurations it allows, or browse every purchasable unit with current starting prices.
