Wine Cellar Cooling System Cost: Equipment, Installation and Running Costs (2026)

What Does the Equipment Cost, Configuration by Configuration?

Equipment is the only part of a wine cellar cooling budget with a published number. On this store a Wine Guardian through-the-wall unit starts at $3,039, a self-contained ducted unit at $6,043, a ductless split at $7,266, a ducted split at $8,329, and a ceiling mount or wine wall unit at $9,027. Configuration, not brand, sets the band.

The jump from one configuration to the next is not a quality jump. A through-the-wall unit and a ducted unit can hold the same cellar at the same temperature. You pay more for a ducted or split system because the equipment leaves the room, which buys quiet and floor space and costs more to install.

Wine Guardian equipment price bands by configuration

Prices read from Wine Guardian Dealer product pages, August 2026, and subject to change. Capacities per Wine Guardian published specifications, 2026.

Capacity drives the band

The cheapest defensible unit is the one that matches the load

Published capacities set the shopping range. The D025 is rated at 4,300 BTU/h at an 80 degree Fahrenheit ambient condenser inlet and recommended for roughly 250 to 2,000 cubic feet, while the D088 is rated at 5,000 to 9,600 BTU/h for roughly 850 to 4,500 cubic feet. A cellar that lands between two bands is where budgets slip, which is why the load estimate comes before the price comparison. See how to size a wine cellar cooling system.

Which Line Items Make Up the Total Cost of a Wine Cooling System?

A complete wine cooling budget has four groups of line items: the unit, the accessories the chosen configuration forces, the trade work a contractor performs, and the recurring costs once the system runs. Only the first two carry a published price. Splitting the budget this way is the fastest way to see which quote you are actually comparing.

Line items with a published price on this store

• Wall sleeve for through-the-wall installation, $160, or the wall sleeve and hardware kit at $146, which finishes and supports the opening.
• Duct collar kit for through-the-wall units, $321, plus 8 inch flexible ductwork at $230 or 10 inch flexible ductwork at $278, needed whenever air has to be routed rather than discharged directly.
• Freestanding wine cellar humidifier, $1,727, or an integrated Sentinel Series humidifier at $1,307. Wine Guardian units display humidity, but actively raising it to the 55 to 65 percent band takes a humidifier.
• Remote interface controller, $460, with a remote sensor at $340. Optional, and the usual first cut on a tight budget.
• Extended Platinum warranty, from $497, above the standard coverage of 2 years parts and 1 year labor.
• Condensate pump kit, request a quote. A gravity drain is cheaper where the site allows one. Where it does not, the pump is a required line rather than an upgrade.

Line items your contractor prices, not us

• Framing and finishing the opening or the equipment platform, including vibration isolation.
• Duct runs and grilles for a ducted system, sized and insulated for the run length the room allows.
• Refrigerant line set for a split system, which a licensed HVAC contractor must install to keep the manufacturer warranty valid.
• Electrical work, typically a dedicated circuit. The D025 lists a minimum circuit of 11.6 A with the heat option and 8.6 A without it.
• Condensate drain routing, plus permits and inspection where your jurisdiction requires them.

Read the quote line by line

Two quotes are only comparable when the scope matches

Most wine cooling quotes that look far apart differ in scope, not in margin. One includes a humidifier and a dedicated circuit, the other assumes an existing outlet and no humidity control. Ask every contractor to price the same list: unit, accessories, ducting or line set, electrical, drain, and finish work. The building shell around the equipment is a separate budget again, covered in what it costs to build a wine cellar.

How Much Does It Cost to Install a Wine Guardian Cooling Unit?

We do not quote installation, and no honest number exists without a site visit. What can be stated precisely is the scope of work each configuration creates, because scope is what a contractor prices. A through-the-wall unit creates the shortest scope and a ducted split the longest, which is why the same cellar can carry very different labor lines.

The single largest scope divider is refrigerant. Self-contained units, whether through-the-wall or ducted, arrive factory charged and sealed, so no field refrigerant work is needed. Split systems connect a field line set between the fan coil and the condenser, which must be done by a licensed HVAC contractor, both for code reasons and to keep the manufacturer warranty valid. Technicians handling refrigerant work under EPA Section 608 must be certified.

What a contractor is actually pricing

• Through-the-wall: a framed and finished opening between studs, mounting and sealing the unit and sleeve, and confirming the exhaust room can absorb the rejected heat. The TTW01B Sentinel uses a standard USA Type B plug, so an existing suitable outlet can remove an electrical line from the quote.

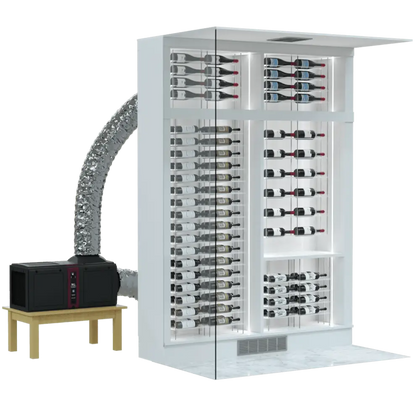

• Ducted self-contained: setting the unit outside the room on an isolated platform, running and insulating supply and return ducts, fitting grilles, terminating the condensate drain, and running a dedicated circuit.

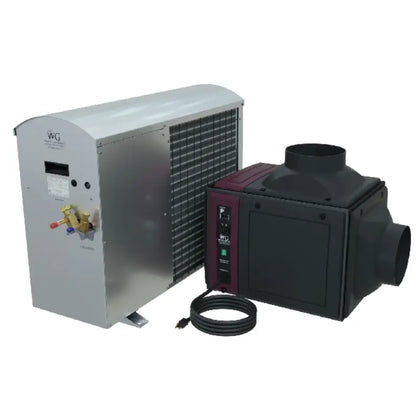

• Ductless split: mounting the fan coil in the cellar, siting the condenser where it can reject heat, running and evacuating the line set, and wiring both ends.
• Ducted split: everything a ducted install needs plus everything a split install needs, in two locations.
• Ceiling mount and wine wall: structural support, a service access panel, ducting, and a drain that stays serviceable.

Retrofit versus new build

Access is the variable nobody prices in advance

In a new build the ducts, circuit and drain are run before the walls close, and the cooling install is a scheduled trade. In a finished room the same work means opening ceilings, chasing a circuit back to a panel and making good afterwards. Two identical units in two identical cellars can carry very different labor lines for that reason alone.

How Does the Total Differ Between a Through-the-Wall and a Ducted or Split System?

On equipment alone a ducted unit costs roughly twice a through-the-wall unit, $6,043 against $3,039 at the entry point. On the total the gap widens, because the ducted and split configurations add duct runs, a drain, a dedicated circuit and, for splits, a refrigerant line set. Through-the-wall keeps the largest share of the total in the published equipment price.

Where the money goes, through-the-wall against ducted and split

Prices read from Wine Guardian Dealer product pages, August 2026, and subject to change. Capacities per Wine Guardian published specifications, 2026.

That does not make through-the-wall the right answer. It puts a compressor in the cellar wall and rejects heat into whatever room is on the other side, which is a design constraint rather than a saving. The unit price difference alone is covered in split system versus through-the-wall cooling units.

Water-cooled and commercial

Where the scope leaves the residential budget entirely

Water-cooled ducted units such as the D025WC at $6,795 reject heat to a water loop instead of to air, which suits interior plant rooms with no viable exhaust path but adds the loop to the scope. The Pro DP and SP series are quoted rather than priced online and are specified with a mechanical contractor rather than bought off the page.

What Does It Cost to Run a Wine Cellar Cooling System?

Running cost is the published electrical draw multiplied by how many hours a day the compressor actually runs, at your local electricity rate. Using the D025 published cooling draw of 7.1 A at 115 volts and the 2025 United States residential average of 17.30 cents per kilowatt-hour, the unit costs roughly $34 a month at eight running hours a day.

Estimated electricity cost for a Wine Guardian D025 by daily runtime

Calculated from the D025 published cooling current draw of 7.1 A at 115 volts, per Wine Guardian published specifications, 2026, and the 2025 United States residential average electricity price of 17.30 cents per kilowatt-hour reported by the U.S. Energy Information Administration. Actual draw and runtime vary with ambient temperature, insulation and set point.

Runtime, not the nameplate, is what moves that number. A correctly sized unit in a well-insulated cellar cycles; an undersized unit in a glass-fronted room in a hot climate approaches the bottom rows of that table and stays there. Electricity prices also vary widely by state and season, as the U.S. Energy Information Administration explains, so treat the figures above as a method rather than a forecast.

Two smaller recurring costs belong in the same column: routine servicing, which for most residential systems means filter and coil cleaning on a set interval, and consumables such as humidifier drip pads at $68, or $165 for a four pack, where a humidifier is fitted.

What Does a Realistic All-In Budget Look Like for a Small, Mid-Size, or Large Cellar?

Build the budget as an equipment subtotal you can price today plus a trade-work line your contractor fills in. On this store a small through-the-wall setup lands near $3,185 in equipment, a mid-size ducted setup near $6,521, and a large ducted setup with humidity control and monitoring near $10,650. The trade work is quoted on top of each.

Worked equipment budgets for three cellar sizes

Prices read from Wine Guardian Dealer product pages, August 2026, and subject to change. Capacities per Wine Guardian published specifications, 2026.

What Does It Cost to Upgrade or Replace an Existing Wine Cellar Cooling System?

An upgrade costs less than a first install when the configuration stays the same, and roughly the same as a new install when it changes. Swapping a failed through-the-wall unit for a current TTW01B reuses the opening and the circuit. Moving from through-the-wall to ducted means new duct runs, a drain and a new equipment location, so the trade line resets.

Three upgrade paths and what each one really involves

• Like for like, same configuration: the cheapest path. Equipment from $3,039 for through-the-wall or $6,043 for ducted, with the existing opening, ducting and circuit reused where a licensed HVAC professional confirms they still suit the new unit.
• Same configuration, more capacity: a higher model in the same family, for example D025 at $6,043 to D088 at $8,185. Existing ducting is often undersized for the larger airflow, so verify it rather than assume it.
• Configuration change: through-the-wall to ducted or split. Treat it as a new install budget, because almost every trade line is new. This is the path chosen when noise or heat rejection into the adjacent room has become the problem.

For legacy Wine Guardian ducted and split units there are also field rework kits, listed on this store on request rather than priced online. They are worth asking about before condemning an older unit, because a rework can be materially cheaper than a replacement plus a fresh install. Ask us to request a quote against your model and serial number.

Replace or repair

The decision that actually saves money

A unit that is short cycling, icing or running constantly is not always a replacement. Some of those symptoms are sizing, airflow or a failed component rather than end of life, and a replacement bought on the wrong diagnosis simply repeats the problem at full price. Work through the signs a wine cooling system is about to fail before you price a new one.

What Pushes a Wine Cooling Budget Up or Down?

Five variables move a wine cooling budget more than anything else: cellar volume, glass area, insulation and vapor barrier quality, the ambient temperature where the condenser rejects heat, and how much of the room is already finished. Four of the five are settled before a model is chosen, which is why the cheapest decisions are the early ones.

• Volume and glass: both raise the calculated load, and load decides the price band. A glass door or wall can push a cellar into the next band on its own.
• Insulation and vapor barrier: a well-built shell lowers the load, which can mean a smaller unit and a lower running line for the next decade.
• Condenser environment: a condenser in a hot garage works harder than one in a conditioned utility room, raising runtime and sometimes forcing a larger unit.
• Finished versus unfinished: retrofitting into a completed room adds access, making good and often a longer electrical chase.
• Humidity requirements: active humidification is a $1,307 to $1,727 equipment line rather than a setting.
• Distance and routing: long duct runs and long refrigerant line sets add material and labor, and can affect the capacity delivered.

1. Estimate the load before you look at prices. Put the cellar volume, insulation build, glass area and ambient conditions into the cooling calculator. The result decides which price band you are in, and that is worth thousands.
2. Choose the configuration, then the model. Decide whether the equipment can sit in the wall, outside the room, or split across two locations. Configuration sets both the equipment band and the trade scope.
3. Price the unit and its forced accessories together. A through-the-wall unit needs a sleeve, a ducted unit needs ductwork and collars, a humidity-controlled room needs a humidifier. Price them as one line, not as extras.
4. Write the trade scope down before you call anyone. List framing, ducting or line set, electrical, drain and finish work. Contractors quoting the same written scope produce comparable numbers.
5. Get the electrical requirement confirmed early. Published minimum circuit figures, such as 11.6 A on the D025 with the heat option, let an electrician price the circuit on the first visit rather than after purchase.
6. Estimate the running line for ten years, not one month. Multiply the published draw by realistic runtime and your local rate. A cheaper unit that runs twice as long is not cheaper.
7. Hold a contingency for the retrofit unknowns. In a finished room, access is the variable nobody can see in advance. A licensed HVAC professional should confirm the final design before the budget is closed.
