What Makes a Wine Cellar Cooling Unit Energy Efficient?
An energy efficient wine cellar cooling unit is one that is sized to the real heat load of a well-insulated, vapor-sealed room, rejects its heat somewhere cool, and therefore runs in short, infrequent cycles instead of continuously. The unit itself is only one part of the equation. Insulation, the vapor barrier, glass area, and the temperature at the condenser decide how many hours a year the compressor has to run, and running hours are what you pay for.
Below: running cost drivers, sizing, condenser placement and the water-cooled option, a kWh estimate from published amps and volts, efficiency by configuration, Wine Guardian features, and FAQs.
Energy efficient wine cellar cooling starts with the room, not the unit. A cellar with continuous insulation and a vapor barrier, limited glass, and a condenser that breathes cool air needs far fewer compressor hours than a bare closet with a glass door. Correct sizing keeps the unit cycling instead of running constantly or short cycling. Where Wine Guardian publishes electrical data you can estimate use transparently: the D025 lists 115 V and 7.1 A in cooling, a running draw of at most about 0.82 kW, and annual kWh follows from the hours it runs. Water-cooled units such as the D025WC reject heat through a 0.50 GPM water loop instead of hot room air.
The five things that decide how much a wine cellar cooling unit costs to run
- Envelope first: continuous insulation plus a vapor barrier on the warm side cuts the heat load the unit must remove every hour
- Correct sizing: a unit matched to the calculated load cycles normally; undersized units run constantly and oversized units short cycle
- Condenser placement: Wine Guardian rates ducted capacity at an 80°F condenser inlet; hotter air at the condenser means less capacity and longer run time
- Published electrical data (2026): D025 115 V / 7.1 A cooling; D050 115 V / 11.3 A; D088 208-230 V / 9.8 A; D025WC 115 V / 7.1 A
- Glass and set point: every square foot of glass and every degree below 55°F adds compressor hours
What Drives the Running Cost of a Wine Cellar Cooling Unit?
The running cost of a wine cellar cooling unit is set by two numbers: the electrical draw of the unit while it runs, and the number of hours a year it has to run. The draw is fixed by the model. The hours are set by the heat load of the room, which is why two identical units in two different cellars can have very different electricity bills.
Heat enters a wine cellar through walls, ceiling, and floor, through glass, through air leaks and door openings, and from lighting and people inside the room. Moisture migrating through an unsealed wall adds latent load, because the coil must condense it before the air cools. Every one of those loads is a construction decision, not a cooling unit decision. The U.S. Department of Energy notes that properly installed insulation reduces heat flow and lowers heating and cooling costs in any conditioned space (DOE Energy Saver, Insulation), and a wine cellar held at 55°F inside a 75°F house is a conditioned space with a 20°F difference across every surface.
Cost drivers for wine cellar cooling energy consumption, ranked by typical influence
| Driver | Effect on compressor hours | What you control |
|---|---|---|
| Insulation and vapor barrier | Largest: sets steady heat gain through every surface plus the latent load from moisture migration | Continuous insulation, vapor barrier on the warm side, sealed penetrations |
| Glass area | Large: glass conducts several times more heat than an insulated wall of the same size | Limit glass, use insulated glazing, keep it out of direct sun |
| Condenser inlet temperature | Large: capacity falls as the air or water at the condenser gets hotter, so the unit runs longer | Exhaust into a cool interior space, mechanical room, outdoors, or a water loop |
| Sizing accuracy | Medium to large: undersized runs continuously; oversized short cycles | Run the cooling calculator; have a licensed HVAC professional confirm |
| Set point, door traffic, lighting | Medium: each degree below 55°F, each door opening, and each lighting watt adds run time | Hold 55°F to 58°F, gasketed self-closing door, LED lighting on a timer |
Fix the room before you shop for a lower-draw unit
A cooling unit cannot be more efficient than the room it serves. If the walls are open studs with batt insulation and no vapor barrier, warm humid air reaches the cold side of the wall, condenses, and the coil spends part of every cycle drying the cavity instead of cooling wine. See the wine cellar insulation guide for R-values and materials and the vapor barrier guide for why the barrier belongs on the warm side.
How Does Correct Sizing Affect Wine Cellar Cooling Energy Consumption?
Correct sizing is the cheapest efficiency measure available, because a unit matched to the calculated heat load runs in normal cycles, an undersized unit runs nearly continuously, and an oversized unit starts and stops so often that it never settles into efficient steady-state operation. Both mistakes raise wine cellar cooling energy consumption and shorten compressor life.
Rated capacity is not fixed. Wine Guardian publishes net cooling for the D025 by condenser inlet temperature: 4,520 BTU/h at a 60°F inlet and 3,540 BTU/h at 90°F, per Wine Guardian published specifications, 2026. The same unit loses roughly a fifth of its capacity when the air feeding the condenser moves from a cool basement to a hot attic, and it makes up the difference with run time. Size against the warmest air the condenser will actually see.
Three rules protect efficiency at the sizing stage. Use cubic feet and the cooling calculator, not bottle count, because dimensions, insulation, glass, and ambient set the load. Size to the published range at your condenser inlet: the D025 is listed for roughly 250 to 2,000 cubic feet and the D050 for roughly 650 to 3,000 cubic feet, both at 80°F. Do not oversize as insurance, since a unit two sizes too large short cycles and dries the room. The wine cellar cooling sizing guide walks through the BTU calculation, and a licensed HVAC professional should confirm the result.
Where Should a Wine Cellar Cooling Unit Reject Heat for the Lowest Energy Use?
A wine cellar cooling unit uses the least energy when its condenser rejects heat into the coolest available medium: a large interior room, a ventilated mechanical space, outdoor air in a mild climate, or a water loop. A closet, attic, or garage that heats up in summer raises the condenser inlet temperature, cuts capacity, and adds compressor hours.
Through-the-wall units exhaust into the adjoining room, so that room must be large enough to absorb the heat without warming up; a small closet behind the unit becomes a heat trap. Ducted units such as the D025 and D050 sit outside the cellar and can be ducted on the condenser side, so you choose the exhaust location. Ducted split units such as the DS025 move the condenser outdoors or to a mechanical room on refrigerant lines; a licensed HVAC professional should confirm the line run and clearances.
When there is no cool air to exhaust into, use water

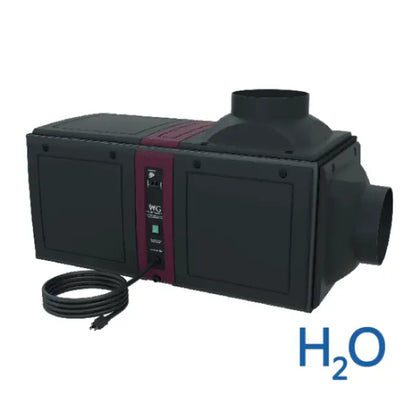

The D025WC is the water-cooled configuration of the D025. It rejects heat through a water loop rated at 0.50 GPM with a 0.20 PSI pressure drop, per Wine Guardian published specifications, 2026, instead of blowing hot air into a room. Wine Guardian describes it as suited to limited ventilation, high ambient temperatures, or noise-sensitive locations. It carries the same 115 V / 7.1 A rating as the air-cooled D025, so the gain comes from a stable, cool condenser inlet rather than a different compressor. Water-cooled units are typically installed by a licensed contractor. Browse the water-cooled ducted systems collection.
How a water-cooled Wine Guardian unit rejects heat
A short manufacturer walkthrough of the water-cooled ducted configuration, useful for deciding whether a water loop makes more sense than an air exhaust in your building.
- Where the water supply and drain connect on the unit
- Why a stable condenser inlet matters in hot or enclosed mechanical spaces
- What a licensed contractor needs to plan before installation
How Do You Estimate How Much Electricity a Wine Cellar Cooling Unit Uses?
Estimate a wine cellar cooling unit's electricity use by multiplying the published voltage by the published running current to get a ceiling on draw in kilowatts, then multiplying by the hours it actually runs. Wine Guardian publishes voltage and cooling current for its ducted units, so the first half of the estimate is transparent; the second half depends on your room.
- Find the published electrical rating on the product page. The D025 lists 115/1/60 and a current draw in cooling of 7.1 A, per Wine Guardian published specifications, 2026.
- Multiply volts by amps to get a draw ceiling. 115 V x 7.1 A = 817 VA, or about 0.82 kW. Real watts are equal to or lower than this because a compressor motor's power factor is below 1.0, so treat 0.82 kW as an upper bound.
- Estimate the duty cycle from the room. A well-insulated, vapor-sealed cellar in a cool basement might run its compressor a quarter of the time; a glass-walled room with a hot condenser location can run half the time or more. The cooling calculator shows how close your load sits to capacity.
- Multiply draw by hours to get kWh. At 25 percent: 0.82 kW x 24 h x 0.25 = about 4.9 kWh per day, roughly 1,800 kWh per year. At 50 percent the figure doubles to about 9.8 kWh per day, roughly 3,600 kWh per year. These are ceilings built on nameplate current, not measured consumption.
- Multiply kWh by your utility rate. Use the per-kWh rate on your own bill. Purely to illustrate the arithmetic, 1,800 kWh at an assumed $0.15 per kWh is about $270 a year and 3,600 kWh about $540.
- Confirm the circuit with a licensed electrician. Circuit requirements are on the Wine Guardian specification sheet; a licensed electrician confirms the circuit.
Published electrical data for Wine Guardian purchasable units and the resulting draw ceiling (volts x amps)
| Model | Configuration | Electrical | Current draw (cooling) | Draw ceiling (V x A) | Rated capacity at 80°F condenser inlet | Starting at |
|---|---|---|---|---|---|---|
| D025 | Ducted, air-cooled | 115/1/60 | 7.1 A | About 0.82 kW | 4,300 BTU/h | $6,043 |
| D025WC | Ducted, water-cooled | 115/1/60 | 7.1 A | About 0.82 kW | 3,760 BTU/h | $6,795 |
| D050 | Ducted, air-cooled | 115/1/60 | 11.3 A | About 1.30 kW | 6,320 BTU/h | $7,395 |
| D088 | Ducted, air-cooled | 208-230/1/60 | 9.8 A | About 2.25 kW at 230 V | 5,000 to 9,600 BTU/h | $8,185 |
| TTW01B Sentinel | Through-the-wall | 60 Hz, standard USA Type B plug | Not published on the product page | Not calculated | 1,440 BTU/h nominal at 75°F | $4,069 |
Electrical ratings, capacities, and circuit figures per Wine Guardian published specifications, 2026; starting prices from Wine Guardian Dealer, August 2026. Draw ceilings are volts multiplied by published amps and are estimates, not measured consumption. Split units (DS025, SS018) publish a current figure for one component only and are excluded.
Estimate your heat load before you estimate your electric bill
Enter cellar dimensions, insulation, glass area, and ambient temperature to see how close your load sits to a unit's rated capacity. The closer the match, the lower the duty cycle and the fewer kilowatt-hours you pay for.
Featured Wine Guardian Systems
Which Wine Cellar Cooling Configuration Is the Most Energy Efficient?
No single configuration is the most energy efficient in every building. The efficient choice is the one that gives the condenser the coolest, most stable heat sink your house or business can offer: an adjoining room for a through-the-wall unit, a mechanical space or outdoors for ducted and split units, or a water loop for a water-cooled unit.
Energy efficiency comparison of wine cellar cooling configurations (Wine Guardian Dealer editorial, 2026)
| Configuration | Where heat is rejected | Efficiency strengths | Efficiency risks | Commonly selected for |
|---|---|---|---|---|
| Through-the-wall (TTW01B, TTW02B, TTW04B) | Adjoining interior room | No duct losses; lowest purchase price | Exhaust room can warm up and raise the condenser inlet | Small cellars beside a large conditioned room |
| Ducted, air-cooled (D025, D050, D088, D200) | Mechanical room, garage, or outdoors via duct | Exhaust location chosen by design; capacity published by condenser inlet | Uninsulated or long ducts add heat gain; hot attic exhaust cuts capacity | Cellars beside living space with a mechanical room in reach |
| Ducted, water-cooled (D025WC, D050WC, D088WC, D200WC) | Water loop, 0.50 GPM on the D025WC | Stable, cool condenser inlet regardless of room temperature | Water and drain connections; water use is an operating input | Interior spaces with no ventilation, hot climates, high-rise and commercial |
| Ducted split (DS025, DS050, DS088, DS200) | Remote condenser, usually outdoors | Condenser sees outdoor air, not attic air; heat and fan noise leave the building | Outdoor ambient above 90°F derates capacity; lines must be insulated | Homes where the condenser can sit on a pad or roof |
| Ductless split (SS018, CS025, CS050) | Remote condenser | No duct losses; fan-coil in the cellar carries no compressor heat | Fan-coil adds a small heat gain inside the room | Glass displays and wine walls where ducts cannot be hidden |
Configuration characteristics per Wine Guardian published specifications, 2026. Efficiency strengths and risks are editorial and describe the configuration, not a specific installation.
Glass is the efficiency trade-off nobody sizes for
A glass wall turns a wine cellar into a display, and it also makes the largest surface of the room its weakest thermal barrier. Insulated glazing helps, direct sun makes it worse, and the cooling calculator treats glass separately for that reason. If the design calls for glass, plan for a larger unit, a cooler condenser location, and LED lighting on a timer. The quietest wine cooling systems guide covers the noise side of the same placement decision.
Which Wine Guardian Features Affect Energy Efficiency?
Wine Guardian publishes several features that bear on running cost: ±1°F and ±10% RH control accuracy on ducted units, remote air sensing through the Wireless2Base controller, a coated evaporator coil, field-serviceable panels for coil cleaning, capacity tables by condenser inlet temperature, and a water-cooled configuration for every ducted size. None is marketed as an efficiency rating, and Wine Guardian does not publish kWh figures.
1. Control accuracy and remote sensing
The D025 and D050 hold 55°F to 58°F with ±1°F control, and the Wireless2Base remote interface controller senses air where you place it, so the unit corrects drift early instead of overshooting and recovering with long compressor runs.
Remote interface controller →2. Serviceable coils and panels
Ducted units use a coated evaporator coil and multi-panel access that removes with a couple of screwdriver turns. A clean coil transfers heat as designed; a dirty one forces longer cycles. Coils, fan motors, and filter driers are sold as parts.
Parts and accessories →3. Water-cooled heat rejection
Every ducted size has a water-cooled version (D025WC, D050WC, D088WC, D200WC). The condenser sees water at a stable temperature rather than whatever air the mechanical room holds in August.
Water-cooled systems →What the Sentinel line publishes, and what it does not
The TTW01B Sentinel publishes a low global-warming-potential refrigerant, a combined thermostat and humidistat, an internal condensate evaporator that often removes the need for a drain line, and noise as low as 49.5 dB at 6 feet. It does not publish running amps on the product page, so this guide does not estimate its kWh; treat the condensate evaporator as a convenience feature, not an efficiency claim. Pro Series DP and SP units are quote-based on this store; request a quote if your project needs them.
How Do Set Point, Lighting, and Maintenance Change Wine Cellar Cooling Running Cost?
Set point, lighting, door habits, and coil cleanliness are the running-cost levers you still hold after the room is built and the unit is installed. Holding 55°F to 58°F rather than 50°F, using LED lighting on a timer, keeping the door closed, and cleaning coils and filters on schedule all cut compressor hours at no purchase cost.
- Hold the published storage range. Wine Guardian ducted units are built to hold 55°F to 58°F. A 50°F set point widens the temperature difference across every wall and adds run time all year.
- Do not fight the coil with a humidifier. Oversized units that short cycle dry the room, then the humidifier runs harder; correct sizing keeps both loads small. See the wine cellar humidifiers collection.
- Light for viewing, then clean the coils. LED strips on a timer keep lighting heat near zero, and clean coils and filters keep every cycle short. The wine cooling maintenance checklist lists the intervals.
A unit that runs constantly is a symptom, not a setting
If a correctly sized unit begins running all day, something has changed: a blocked condenser, a dirty coil, a failed door gasket, a new heat source in the exhaust room, or a wet wall cavity behind a failed vapor barrier. Lowering the set point only adds hours. Our guide to a wine cooling unit running constantly walks through the checks in order.
Wine Cooling Expert, Wine Guardian Dealer
When someone asks me for the most energy efficient wine cellar cooling unit, I ask to see the wall section first. A sealed, insulated room with a D025 exhausting into a cool basement will cost less to run than a bare closet with any unit on the market, and it will keep its wine safer too. Buy the insulation, then buy the unit.
What Should an Energy Efficient Wine Cellar Cooling Plan Include?
An energy efficient wine cellar cooling plan covers the envelope, the load calculation, the condenser location, the unit's published electrical data, and the operating rules, in that order. Skip a step and the unit makes up the difference in compressor hours.
What is the most energy efficient wine cellar cooling unit?
The most energy efficient wine cellar cooling unit is the one sized correctly for a well-insulated, vapor-sealed room with a cool condenser location. Among Wine Guardian purchasable units, the D025 publishes the lowest running current at 115 V and 7.1 A, and the water-cooled D025WC gives that unit a stable condenser inlet regardless of room temperature.
How much electricity does a wine cellar cooling unit use?
It depends on the unit's draw and its duty cycle. From published data, the Wine Guardian D025 draws at most about 0.82 kW while running (115 V x 7.1 A). At a 25 percent duty cycle that is roughly 4.9 kWh per day and about 1,800 kWh per year; at 50 percent it doubles. These are estimates from nameplate current, not measured figures.
Are wine coolers energy efficient?
Walk-in wine cellar cooling units are efficient when the room is insulated and sealed, the unit is sized to the load, and the condenser rejects heat somewhere cool. Small bottle-count wine coolers are a different product with a different energy profile. For a walk-in cellar, the envelope and sizing matter more than any label on the unit.
How much does it cost to run a wine fridge?
A countertop wine fridge is not the same as a wine cellar cooling unit. For a walk-in cellar, multiply the published volts by amps for a draw ceiling, estimate running hours from your heat load, and apply your own utility rate. For a D025 at a 25 percent duty cycle and an assumed $0.15 per kWh, that is roughly $270 a year as an illustration.
Do wine fridges take up a lot of electricity?
A wine cellar cooling unit is a small refrigeration system, and its consumption is driven mostly by how many hours it runs. In a bare closet with a glass door it can run most of the day; in an insulated, vapor-sealed cellar with a cool exhaust location it cycles a fraction of the time. Insulation and correct sizing cut electricity use more than any other change.
Is there an Energy Star wine cellar cooling unit?
Wine Guardian does not publish Energy Star certification or kWh ratings for its wine cellar cooling units, and this guide does not claim one. What Wine Guardian does publish is voltage, running current, capacity by condenser inlet temperature, and control accuracy, which is enough to estimate a draw ceiling and size the unit so it cycles efficiently.
How do I size a wine cellar cooling unit for energy efficiency?
Calculate the cellar volume in cubic feet, then adjust for insulation, glass area, lighting, and the warmest temperature the condenser will see. Match that load to a unit's published capacity at that condenser inlet, such as the D025 at 4,300 BTU/h at 80°F. Avoid oversizing, which causes short cycling, and have a licensed HVAC professional confirm.
Can I plug my wine cooler into an extension cord?
Wine Guardian through-the-wall units use a standard USA Type B plug, and ducted units list their circuit requirements on the Wine Guardian specification sheet. Whether a receptacle, cord, or circuit is appropriate is an electrical design question, and a licensed electrician should confirm it before installation rather than relying on an extension cord.
Want the running-cost estimate checked against your plans?
Send us your cellar dimensions, insulation, glass area, and where the condenser can go, and we will match the load to Wine Guardian published capacities, or browse every purchasable unit with current starting prices.
Keep planning
More on this topic in our wine cooling buying guides. Run your room through the cooling calculator, then compare published electrical data and starting prices across every configuration in the wine cellar cooling units collection.
This guidance is general and intended to help narrow the selection. Final sizing, installation design, electrical requirements, and configuration should be confirmed with Wine Guardian official documentation and a licensed HVAC professional or qualified contractor.
