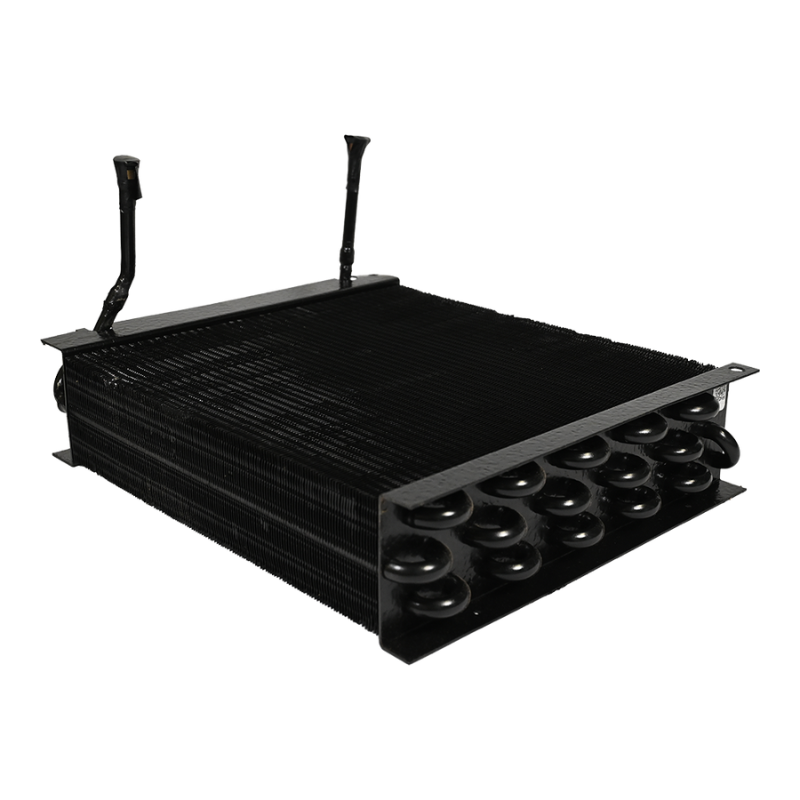

Wine Guardian Evaporator Coil for D025, DS025, DP25, SP25 53H0068-01

The Wine Guardian Evaporator Coil 53H0068-01 is the genuine replacement evaporator coil that Wine Guardian lists for the D025, DS025, DP25 and SP25 systems and for the TTW009 and TTW018 through-the-wall units, where it is the cold coil that takes heat out of the air returning from the cellar.

Two things about this number catch buyers out. It reaches further than the ducted 25-class line, because Wine Guardian also lists it for the TTW009 and TTW018 through-the-wall units, which is a different configuration entirely. And it is a supersession: Wine Guardian records that 53H0068-01 replaced 53H0022-02, so an older unit may carry the earlier number on the coil itself. As an authorized Wine Guardian dealer we supply genuine Wine Guardian parts.

Wine Guardian publishes this coil with the widest fitment list of any coil in the line, six models across three configurations, plus the number it superseded. The weight and dimension figures below are the ones printed on Wine Guardian's own product listing for this part.

Wine Guardian lists this one coil for six models: the four 25-class systems D025, DS025, DP25 and SP25, plus the TTW009 and TTW018 through-the-wall units. That last pair is the part of the list nobody expects.

The four 25-class systems are the D025 and DP25 on the ducted side and the DS025 and SP25 on the split side. The two through-the-wall models are the TTW009 and the TTW018, which share this evaporator coil with the 25-class cabinets even though they are a different kind of installation.

Do not read the TTW009 and TTW018 entries as covering the current B-series through-the-wall units. Those take their own evaporator coils: TTW01 and TTW02 use the 53H0080-01 and TTW04 uses the 53H0081-01.

Read the part number from the old coil or the model designation from your unit's data plate and match it against Wine Guardian's published parts list before ordering. Legacy units are the usual place a number surprises somebody, because the coil that shipped in the unit may no longer be the number Wine Guardian supplies. A coil is part of the sealed refrigeration circuit of the unit, so fitting a replacement is work for a licensed HVAC professional or qualified refrigeration contractor working to Wine Guardian's official service documentation.

Because the list spans two cellar-size bands, the 25-class cabinets in one and the TTW009 and TTW018 in a smaller one, no single cellar-size collection describes this part and none is linked here.

The next size up is the 53H0070-01 evaporator coil for the 050-class systems, which is the number to check if your data plate reads D050 rather than D025. Wine Guardian describes the 39H0040-02 defrost sensor as coil mounted, so it sits on this coil, and for an older cabinet Wine Guardian also publishes the 94H0037-00 rework kit for legacy D025, D050, DS025 and DS050 units.
