Written by Jim Hopper, Wine Cooling Expert · Updated August 2026
What Maintenance Does a Wine Guardian System Actually Need?
Wine Guardian maintenance is set by product family, not by one universal routine: through-the-wall, ducted D-series, split and ceiling-mounted units, and humidifiers each put the filter, the coils and the condensate path in a different place. Owner-level work is cleaning, filter service, drip pad replacement and inspection. Refrigerant, electrical and sealed-system work belongs to a licensed HVAC professional, and warranty service runs through the manufacturer.
Below: maintenance access by Wine Guardian product family, through-the-wall care, ducted D025, D050 and D088 requirements, split and ceiling-mounted differences, humidifier upkeep, the parts owners actually replace, warranty records, and where the official manuals and support live.
Wine Guardian sells four service profiles, not one. Through-the-wall units keep everything in a single cabinet through an interior wall. Ducted self-contained units such as the D025, D050 and D088 sit in a remote mechanical space with a 0.50 in condensate drain connection and 8 in or 10 in round ductwork. Splits divide the fan-coil and the condenser across refrigerant lines. Humidifiers run on a field-replaceable evaporative drip pad, part 54H0010-02, starting at $68. Panels, duct collars and grilles on Wine Guardian ducted units remove with a couple of screwdriver turns, so most owner-level access needs no specialist tools. Standard coverage is 2 years parts and 1 year labor, handled through the manufacturer.
What this Wine Guardian maintenance guide covers
- Product families: through-the-wall (TTW01B, TTW02B, TTW04B), ducted self-contained (D025, D050, D088, D200), ducted and ductless split (DS025 to DS200, SS018), ceiling mount and wine wall (CS025, CS050), and humidifiers
- Owner-level work: filter and grille service, coil face cleaning, condensate path checks, drip pad replacement, clearance and airflow
- Technician-level work: sealed-system refrigerant service, electrical faults, control board replacement, blower and compressor components
- Consumables: humidifier drip pad 54H0010-02 starting at $68, four-pack 94H0022-00 starting at $165
- Warranty: 2 years parts, 1 year labor standard, with a Platinum option adding 2 years parts and labor plus a 3-year extension on the compressor, evaporator coil and condenser coil
What Maintenance Does Wine Guardian Call For by Product Family?
Wine Guardian maintenance is defined by where the equipment sits. A through-the-wall unit keeps the filter, coils and controls in one cabinet you can reach from the cellar. A ducted D-series unit puts them in a remote mechanical room. A split divides them across two locations, and a humidifier adds a water path of its own.
That difference decides which face you clean, whether there is a condensate drain line to check, and how much of the system an owner can legitimately touch. The table below maps the families sold on this store against owner access and the work that should be left to a licensed HVAC professional.
Wine Guardian maintenance access by product family
| Product family | Where the equipment sits | Owner-level access | Needs a licensed technician |
|---|---|---|---|
| Through-the-wall (TTW01B, TTW02B, TTW04B) | One cabinet through an interior wall, exhausting into an adjacent ventilated room | Cellar-side grille and filter area, exhaust-side clearance, visible condensate path | Coil service behind panels, fail-safe switch faults, all refrigerant and electrical work |
| Ducted self-contained (D025, D050, D088, D200) | Remote mechanical space, joined to the cellar by supply and return ducts | Return-air filter and grille, duct connections, condensate drain line, service clearance | Panel-off coil service, blower and motor work, drain pan and condensate pump faults |
| Ductless and ducted split (SS018, DS025 to DS200) | Fan-coil in or beside the cellar, matched condensing unit remote or outdoors | Fan-coil grille and filter, keeping the condenser coil face clear of leaves and debris | Refrigerant lines and charge, condenser service, anything at the line-set connections |
| Ceiling mount and wine wall (CS025, CS050) | Above the ceiling plane or behind a wine wall, reached through a service opening | Visible grille, condensate path below the unit, keeping the access panel usable | Any work above the ceiling plane, plus coil, blower and fan motor service |
| Humidifiers (integrated and freestanding) | Attached to a ducted unit in the adjacent room, or wall-mounted in the wine space | Drip pad replacement under a removable cover, water supply and housing checks | Control wiring, humidistat faults, any leak reaching the cellar structure |
Configuration, mounting and access details per Wine Guardian published specifications, 2026.
The air path, water path, controls check
Whatever the family, owner-level Wine Guardian maintenance reduces to three paths. Walking them in order is the fastest way to know what you can do yourself and where the job stops.
1. Air path
Filter, grille, coil faces and clearance. This is where most lost capacity comes from, and it is the part of the system an owner is meant to keep clean on every family.
Air path by family →2. Water path
Condensate drain connection, drain line, pan, and the humidifier drip pad. A blocked or dry water path shows up as a leak, a smell, or humidity that will not hold.
Water path checks →3. Controls and fasteners
Remote interface, sensor placement, panel and duct-collar fasteners. Read them, log them, and stop before you open anything sealed or energized.
Controls and documentation →How Do You Maintain a Through-the-Wall Wine Guardian Unit?
A through-the-wall Wine Guardian unit is one self-contained cabinet installed through an interior wall, so all owner-level maintenance happens at two faces: the cellar-side grille and the exhaust side in the adjacent room. Keep both clear, keep the exhaust room ventilated, and inspect the condensate arrangement for your specific model.
The through-the-wall line is sold in three trims that behave differently in service. The Classic is the base platform. The Sentinel adds a humidity sensor, sound reduction foam and an internal condensate evaporator. The Defender is the heavy-duty trim, and it uses a different condenser coil part from the Classic and Sentinel, which matters when a technician orders replacements.
What the Sentinel trim changes about upkeep
- Condensate: the TTW04B Sentinel includes an internal condensate evaporator that re-evaporates condensate and often removes the need for a dedicated drain line. Final drainage requirements should still be confirmed with Wine Guardian documentation and a qualified professional.
- Fail-safes: the Sentinel platform carries triple fail-safe protection, a condensate overflow switch, a loss-of-charge switch and an auto-reset high-pressure switch. A unit that keeps tripping one of these is telling you to stop and call for service.
- Humidity: the Sentinel has a combined thermostat and humidistat that integrates with a Wine Guardian freestanding humidifier. The TTW Classic line is not compatible with Wine Guardian humidifiers at all.
- Placement: through-the-wall units are rated for interior installation only, not exterior use. A unit exhausting into a closed or unventilated room will run long and hot no matter how clean the coils are.
- Noise as a signal: the TTW04B Sentinel publishes noise as low as 57.9 dB at 6 ft. A unit that is suddenly louder than it was is worth investigating rather than tuning out.
Both faces need clearance, not just the pretty one
The grille you see from the cellar is only half the unit. The other half exhausts heat into the adjacent room, and that room has to stay ventilated and uncluttered. Storage stacked against the exhaust side is one of the most common reasons a through-the-wall unit loses capacity without any component actually failing.
Where the parts you maintain actually sit
The walkthrough shows the cabinet layout of a through-the-wall unit, which is the fastest way to understand what you can reach and what is behind a panel.
- Which face is cellar-side and which face exhausts into the adjacent room
- Where the grille and filter area sit on the cellar side
- Why the mounting bracket and optional wall sleeve affect service access
What Do Ducted Wine Guardian Units Like the D025, D050 and D088 Need?
Ducted Wine Guardian units live outside the wine room, so maintenance moves to the mechanical space: the return-air filter and grille, the supply and return duct connections, the 0.50 in condensate drain connection, and enough clearance around the cabinet for panels to come off. Nothing in the cellar itself needs servicing.
Wine Guardian builds this family for field service rather than factory return. On the D-series, panels, duct collars and the grille remove with a couple of screwdriver turns, so service happens on site. Every unit ships with a coated evaporator coil that protects the evaporator side against corrosion, and with integral controls and air-sensing technology plus a Wireless2Base remote interface controller.
Ducted Wine Guardian service reference
| Ducted model | Rated cooling capacity | Recommended cellar volume | Condensate drain connection | Minimum ductwork |
|---|---|---|---|---|
| D025 | 4,300 BTU/h at 80°F ambient | 250 to 2000 ft³ | 0.50 in | 8 in round |
| D050 | 6,320 BTU/h at 80°F ambient | 650 to 3000 ft³ | 0.50 in | 10 in round |
| D088 | 5,000 to 9,600 BTU/h at 80°F ambient | 850 to 4500 ft³ | 0.50 in | 10 in round |
Per Wine Guardian published specifications, 2026.
Wine Guardian D025 maintenance requirements
The D025 is the model most owners ask about. It is a 78 lb cabinet measuring 33.45 in by 16.6 in by 15.56 in, so it needs a mechanical space with room to open panels on more than one side. It holds 55°F to 58°F with control accuracy of ±1°F and ±10% RH, and carries a 0.50 in condensate drain connection that has to stay pitched and clear.
- Return-air filtration: a ducted unit pulls cellar air back through a return. Filter media at that return is the consumable that changes performance fastest, and it is fully owner-serviceable.
- Duct connections: check the supply and return collars and flexible duct for crushing, sag and separation. Ducted capacity is only as good as the duct run, and the US Department of Energy notes that duct losses cost a significant share of delivered conditioned air.
- Condensate: a 0.50 in connection is small. Confirm the trap and slope, and look for standing water at the pan on every visit to the mechanical space.
- Humidification: the D025 pairs with the Sentinel Series Integrated Humidifier 99H0173-20, which is listed as compatible with the D025, DP25, DS025 and SP25.
- Clearance: field-serviceable access only helps if the panels can actually swing clear of stored goods.
The one job that changes performance fastest
Filter and grille service is the highest-value owner task on a ducted Wine Guardian unit, and the one most often skipped because the equipment sits out of sight in another room. A restricted filter shows up first as longer run times, then as drift the controller cannot correct.
What Changes on a Wine Guardian Split, Ductless or Ceiling-Mounted System?
A split moves half the machine somewhere else. On the SS018 ductless split and the DS-series ducted splits, a fan-coil sits in or beside the cellar and a matched condensing unit sits remote, often outdoors, joined by refrigerant lines. Maintenance now happens in two places, and the line set is off limits to owners.
The SS018 is rated at 2,800 BTU/h at 80°F ambient and holds 55°F to 58°F. Its fan-coil weighs 25 lbs and can be surface mounted flush against racking or installed through the wall, and the matched condenser enclosure weighs 75 lbs. Wine Guardian designs the grille and panels for tool-free access so the unit does not return to the factory, which makes the cellar-side inspection genuinely owner-friendly.
- Two locations, two jobs: keep the fan-coil grille clean inside, and keep the outdoor or remote condenser coil face clear of leaves, lint and snow. A blocked condenser will hurt capacity even when the cellar side is spotless.
- The line set is technician territory: a ductless split connects refrigerant lines between fan-coil and condenser, so it must be installed and serviced by a licensed HVAC contractor. Wine Guardian notes this is also what keeps the manufacturer warranty valid.
- Ceiling mount and wine wall: the CS025 and CS050 hide above a ceiling or behind a wine wall. Their maintenance question is almost entirely about the service opening, whether one exists and whether anything can be reached through it.
- Condensate above your head: a ceiling-mounted unit puts the drain path over finished space. Any staining below the unit is a stop-work signal, not a wait-and-see one.
- Refrigerant work is regulated: technicians who open a sealed system must hold EPA Section 608 certification. That is a useful question to ask before booking a visit.
Quiet inside, but two service points
The split layout is chosen because the compressor sits nowhere near the wine. The trade-off is that a maintenance visit has two stops instead of one, and the outdoor half is exposed to weather and debris in a way a through-the-wall cabinet never is.
The configuration-level maintenance detail for ductless and split equipment is covered separately in our guide to ductless wine cooling unit maintenance. Our summary of the manufacturer installation material sits on the split system installation page and the ceiling mount installation page.
What Maintenance Does a Wine Guardian Humidifier Need?
A Wine Guardian humidifier is an evaporative drip-pad device, so its maintenance is a consumable replacement rather than a repair. Water saturates the pad, the unit releases moisture into cellar air, and the remote controller calls for moisture only when needed. The pad is field-replaceable under a removable cover.
Wine Guardian sells the humidifier in two forms, and they mount and maintain differently. The integrated units attach directly to a ducted or ducted split system in the adjacent room and draw 24 V from the cooling unit, with no separate outlet. The freestanding units mount on the wall or in the racking inside the wine space and suit through-the-wall (non-Classic) and ductless split cellars, or any cooling system at all.
- The drip pad is the service item: the removable cover means refreshing the pad is a quick, tool-light job. Replacement interval depends on water quality and run time, so follow the interval in your humidifier documentation rather than a generic calendar.
- Quarter-turn fasteners: the Sentinel Series integrated humidifier attaches and detaches in a couple of clicks and mounts on either side of the cooling system, which is what makes owner-level pad service practical.
- Output you can sanity-check: the Sentinel Series Integrated Humidifier 99H0173-20 is rated at 0.42 lb/hr at 60°F and 1.0 lb/hr at 100°F. Humidity that will not climb despite a fresh pad usually points at the room, not the humidifier.
- Target band: a cellar holds best at roughly 50 to 70 percent relative humidity, ideally near 60 percent. Too low and corks dry; too high and labels and mold become the problem.
- Compatibility limit: the TTW Classic line is not compatible with Wine Guardian humidifiers. Confirm compatibility before ordering a pad or a unit.
One consumable, two mounting styles
Integrated humidifiers such as the 99H0173-20 are listed as compatible with the D025, DP25, DS025 and SP25 and hide in the mechanical room with the cooling unit. Freestanding units live in the wine space instead. Either way the pad is the part you replace, and keeping spares on hand is the difference between a five-minute job and a week of drifting humidity.
Which Wine Guardian Parts and Consumables Do Owners Actually Replace?
Most Wine Guardian owners buy three categories of part: a consumable such as a humidifier drip pad, an installation component such as a wall sleeve or duct collar, and a control accessory such as a remote sensor or interface controller. Everything inside the sealed system is a technician-fit part quoted on request.
Owner-replaceable Wine Guardian parts and consumables
| Part or consumable | Part number | What it serves | Starting price |
|---|---|---|---|
| Humidifier drip pad | 54H0010-02 | Single evaporative pad, the wetted media a Wine Guardian humidifier uses | starting at $68 |

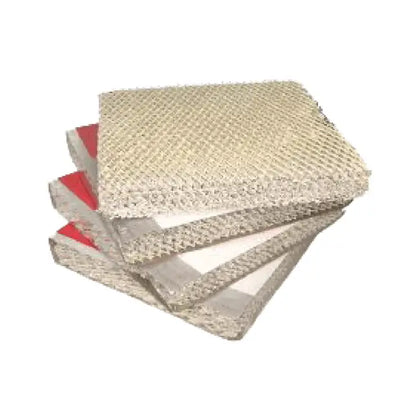

| Humidifier drip pads, four-pack | 94H0022-00 | Spares set so a pad change never waits on an order | starting at $165 |
| Wall sleeve and hardware | 94H0054-00 | Through-the-wall mounting sleeve and fixings | starting at $146 |
| Exhaust duct collar | 19H0018-00 | Routes exhaust air away from a through-the-wall install | starting at $125 |
| Remote sensor | 91H0058-05 | Cellar temperature and humidity sensing away from the unit | starting at $340 |
| Remote interface controller | 91H0105-01 | The Wine Guardian remote control and readout interface | starting at $460 |
Starting prices from this store, August 2026. Part numbers per Wine Guardian published specifications, 2026.
Sealed-system and electrical components are a different class. Compressors, evaporator and condenser coils, fan motor kits, control boards, defrost sensors, fan cycle switches and condensate pump kits are all stocked in Wine Guardian parts and accessories, but they are listed for quote rather than direct checkout because fitment depends on model, series and revision. Request a quote with your model and serial number and the correct part number can be confirmed before anything ships.
Check that the unit was ever the right size
A system that runs constantly and still drifts is sometimes a maintenance problem and sometimes an undersized one. Enter your cellar dimensions, insulation and glass area to see the estimated load, then compare it with the rated capacity of your model.
Featured Wine Guardian Systems
How Do You Keep a Wine Guardian Warranty and Service Record Intact?
Wine Guardian provides a standard warranty of 2 years parts and 1 year labor, with a Platinum option that extends parts and labor to 2 years and adds a 3-year extension on the compressor, evaporator coil and condenser coil. Warranty service is handled through the manufacturer, not through the dealer.
Warranty-preserving practice is mostly documentation and correct installation rather than any special maintenance ritual. Split systems are the clearest example: Wine Guardian states that a ductless split must be installed by a licensed HVAC contractor because of the refrigerant line work, and that this is also what keeps the manufacturer warranty valid.
- Record the data plate on day one: model, series, trim and serial number. Every parts quote, warranty claim and support call starts there.
- Keep the install record: who installed it, on what date, and for split and ducted systems, the contractor licence details.
- Log owner-level work: filter changes, drip pad replacements and coil face cleaning with dates. A dated log is the simplest evidence that the unit was maintained.
- Use genuine parts: as an authorized dealer we supply genuine Wine Guardian components, which keeps fitment and coverage arguments simple.
- Consider extended coverage at purchase: the Platinum warranty options are chosen at the time of purchase rather than added later.
- Route claims correctly: warranty and returns are handled through the manufacturer, so start there rather than with a third-party repair shop.
Wine Cooling Expert, Wine Guardian Dealer
The single most useful thing an owner can do for a Wine Guardian system is photograph the data plate and keep it with the purchase record. On a D025 the model, series and serial decide which evaporator coil, which fan motor kit and which control board fit, and those part numbers are not interchangeable across the ducted line.
The second most useful thing is a dated filter and drip pad log. When a unit that has held 55°F for four years starts drifting, the first question a technician asks is when the air path was last serviced, and an owner who can answer that saves an entire diagnostic visit.
Where Do You Find Wine Guardian Manuals, Tech Support and Repair Help?
Wine Guardian publishes model-specific installation, operation and maintenance manuals by product family rather than by individual model, so the first step is identifying which family your unit belongs to. Manuals, quick-start guides, specification sheets and warranty documents are indexed on our manuals page, and technical support runs through the manufacturer.
Owners usually arrive with one of three needs: find the manual, reach tech support, or find someone to repair the unit. Those are three different paths, and taking them in the right order saves a call.
- Read the data plate before anything else. Note the model, series, trim and serial number. A TTW02B Classic, a TTW02B Sentinel and a TTW02B Defender share a model number but not all of their parts.
- Match the model to its product family document set. Through-the-wall, ducted self-contained, ducted split, ductless split, ceiling mount and humidifier each have their own installation, operation and maintenance manual.
- Open the manual index for that family. Our Wine Guardian manuals page collects the current documents in one place, and the Wine Guardian video library covers the same ground visually.
- Work through the published guided procedures first. Several common conditions have documented owner-level or technician-level procedures, including remote interface troubleshooting and the high pressure switch reset.
- Decide whether the job is owner-level or technician-level. Cleaning, filters and drip pads are owner-level. Anything requiring refrigerant recovery needs a technician holding EPA Section 608 certification, and control board or compressor component work should be booked, not improvised.
- Route the call to the right place. Warranty claims and factory technical support go to the manufacturer. Parts, model identification and replacement quotes come from your dealer, so contact us with the data plate details for anything on the parts side.
Two of our reference pages exist for the repair conversations that come up most often: control board replacement and fan motor replacement. Both are summaries of manufacturer material for planning purposes, not substitutes for the official documentation or for a licensed technician on site. Basic filter and coil upkeep on any refrigeration equipment follows the same logic the US Department of Energy describes for maintaining an air conditioner.
How do I maintain a Wine Guardian cooling system?
Owner-level Wine Guardian maintenance covers three paths: the air path (filter, grille, coil faces and clearance), the water path (condensate connection, drain line and humidifier drip pad), and the controls. Cleaning and consumable replacement are owner tasks. Refrigerant, electrical and sealed-system work should go to a licensed HVAC professional.
What are the Wine Guardian D025 maintenance requirements?
The D025 sits outside the cellar, so its upkeep is return-air filter service, duct connection checks, keeping the 0.50 in condensate drain connection clear, and leaving clearance for panels to come off. Panels, duct collars and the grille remove with a couple of screwdriver turns for on-site service.
Where can I find Wine Guardian manuals for my model?
Wine Guardian publishes manuals by product family rather than by individual model. Identify your family from the data plate, then open the manual index on our Wine Guardian manuals page. Through-the-wall, ducted, ducted split, ductless split, ceiling mount and humidifiers each have their own installation, operation and maintenance document.
How often should you replace a Wine Guardian humidifier drip pad?
The replacement interval depends on your water quality and how much the humidifier runs, so follow the interval in your Wine Guardian humidifier documentation rather than a fixed calendar. The pad is field-replaceable under a removable cover. Part 54H0010-02 is a single pad and 94H0022-00 is a four-pack of spares.
Can I clean the coils on a Wine Guardian unit myself?
Keeping coil faces and grilles free of dust and debris is reasonable owner-level work on any Wine Guardian family. Removing panels to service a coil properly, using coil chemistry, or touching anything inside the sealed system is technician-level. If a panel has to come off to reach it, book a licensed HVAC professional.
Does Wine Guardian maintenance affect the warranty?
Coverage depends more on correct installation and documentation than on any single maintenance task. Wine Guardian notes that split systems must be installed by a licensed HVAC contractor, which is also what keeps the manufacturer warranty valid. Keep the data plate details, the install record and a dated service log, and route claims through the manufacturer.
Are Wine Guardian replacement parts sold separately?
Yes. Consumables and accessories such as humidifier drip pads, wall sleeves, duct collars, remote sensors and the remote interface controller are available directly. Sealed-system components including compressors, coils, fan motor kits and control boards are stocked in parts and accessories and quoted on request, because fitment depends on model, series and trim.
What causes a wine cooler to stop working?
On Wine Guardian equipment the common causes divide into airflow restriction, a blocked condensate path, a tripped fail-safe such as the condensate overflow, loss-of-charge or high pressure switch, and electrical or control faults. The first two are often owner-correctable. The others need a licensed HVAC professional to diagnose properly.
How do I get Wine Guardian tech support for my unit?
Start with the data plate, then the manual index for your product family and the published guided procedures. Factory technical support and warranty claims are handled by the manufacturer. For parts identification, model confirmation and replacement quotes, contact us with the model, series and serial number from the unit.
Need the right Wine Guardian part or a second opinion on a service call?
Send us the model, series and serial number from the data plate and we will confirm the correct part against Wine Guardian published specifications, or browse the consumables and components stocked for every product family.
Keep planning
More on this topic in our wine cooling maintenance hub. Start from the cluster overview in wine cooling system troubleshooting. Related reading: the wine cellar cooling maintenance checklist, how often to service a wine cooling system, and ductless wine cooling maintenance. Confirm sizing in the wine cellar cooling calculator, or browse Wine Guardian parts and accessories.
This guidance is general and intended to help narrow the selection. Final sizing, installation design, electrical requirements, and configuration should be confirmed with Wine Guardian official documentation and a licensed HVAC professional or qualified contractor.
