Compare Every Wine Guardian Model: Find the Perfect Fit (2026)

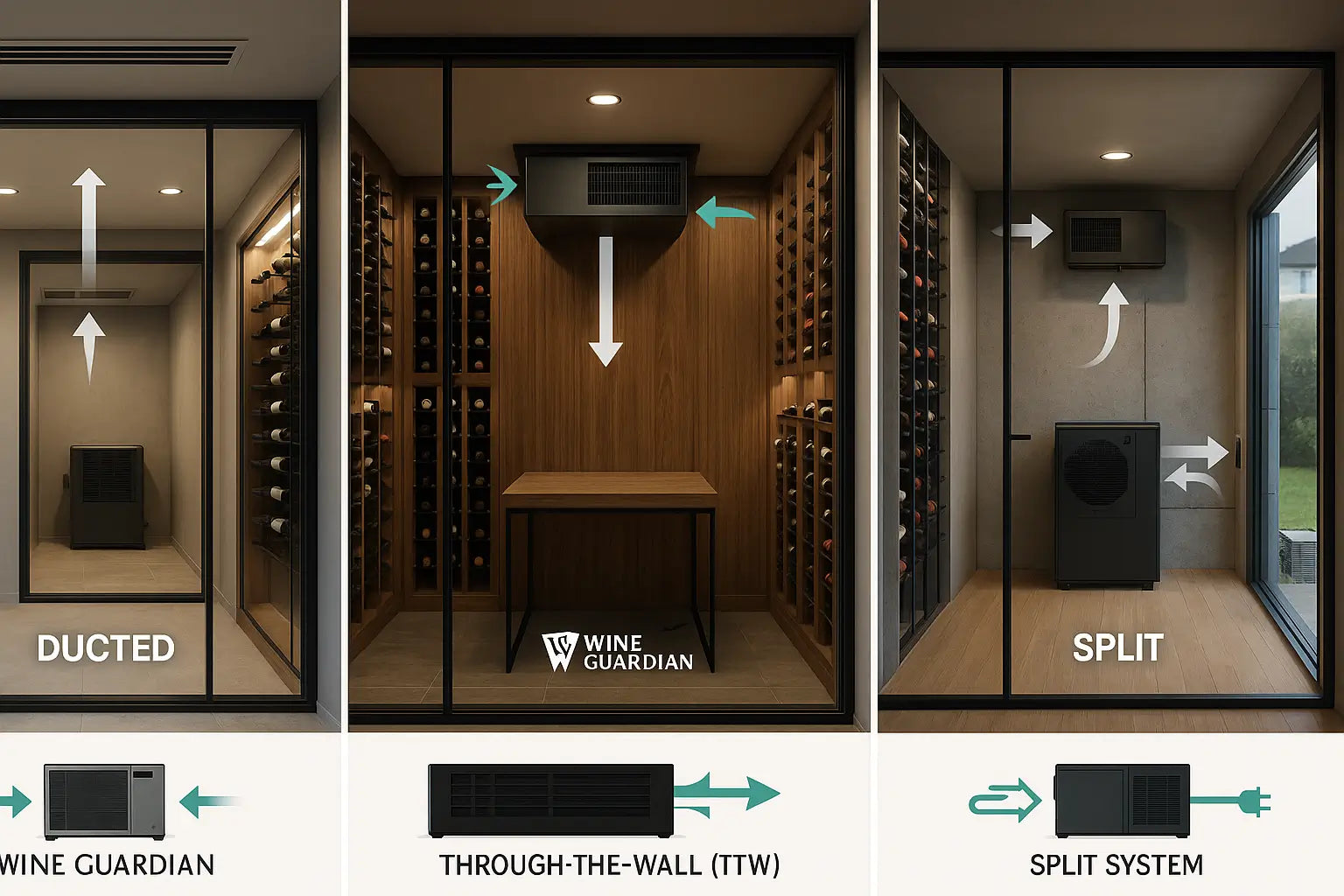

What Are the Wine Guardian Model Families and How Do They Differ?

Wine Guardian organizes its cooling units by configuration, not by cellar size alone. The model number tells you the configuration and the capacity class: TTW means through-the-wall, D means ducted self-contained, WC means water-cooled, DS means ducted split, SS and CS mean ductless split, and DP and SP mean the Pro Series versions of the ducted and split units. The number that follows (025, 050, 088, 200) is the capacity class.

That naming matters because the same capacity class appears in several configurations. A 025-class cellar of roughly 250 to 2,000 cubic feet can be served by a D025 ducted unit, a D025WC water-cooled unit, a DS025 ducted split or a DP25 Pro unit. The cellar decides the capacity class; the building decides which configuration is practical. The guide to choosing a wine cellar cooling unit covers the building questions in detail; this page compares the models inside each family.

Wine Guardian model families compared by configuration (2026)

Capacities per Wine Guardian published specifications, 2026. Starting prices are Wine Guardian Dealer prices, August 2026.

Read the model number

Letters give the configuration, digits give the capacity class

Read D050WC as a ducted, 050-class, water-cooled unit, and DS088 as a ducted split in the 088 class. Once you know the capacity class your cellar needs, every configuration in that class becomes a candidate, and the choice shifts to where the equipment can go. For the full lineup with current starting prices, browse the wine cellar cooling units collection.

Which Wine Guardian Model Fits Which Cellar Size, and What Does Each Cost?

The table below lists every Wine Guardian model sold on this store with its rated capacity, the cellar size Wine Guardian publishes for it, the published noise figure where one exists, and the starting price. Through-the-wall units publish noise at 6 feet; ducted and split units do not carry a single decibel rating because the compressor sits outside the cellar.

Wine Guardian master model comparison: capacity, cellar size, noise and starting price (2026)

Capacities, cellar sizes and noise figures per Wine Guardian published specifications, 2026. Starting prices are Wine Guardian Dealer prices, August 2026, and can change; Pro Series and CAB018 are quote-based on this store.

Wine Guardian D025 vs D050: What Is the Difference, and Is There a D040?

The Wine Guardian D025 is rated at 4,300 BTU/h at 80°F ambient for cellars of roughly 250 to 2,000 cubic feet and starts at $6,043; the D050 is rated at 6,320 BTU/h for roughly 650 to 3,000 cubic feet and starts at $7,395. There is no D040 in the current Wine Guardian catalog, so a cellar that falls between the two is sized on the D050 or on a smaller unit with margin, never on a model that does not exist.

Wine Guardian D025 vs D050 vs D088 ducted specifications

Per Wine Guardian published specifications, 2026; starting prices from Wine Guardian Dealer, August 2026.

How to decide between the D025 and the D050

• Cellar volume under about 650 cubic feet with ordinary insulation: the D025 is the model commonly selected; the D050 would be oversized and would short-cycle.
• Cellar volume between about 650 and 2,000 cubic feet: both models cover the range. Run the cooling calculator with your glass area and the warmest condenser-inlet temperature; if the calculated load at 90°F ambient exceeds about 3,500 BTU/h, the D050 is the typical choice.
• Cellar volume above 2,000 cubic feet, or a glass wall, or a hot mechanical room: the D050 or the D088. Net cooling falls as the condenser inlet warms, and the D050 holds 5,860 BTU/h at 90°F where the D025 holds 3,540 BTU/h.
• Noise, efficiency and reliability: the two units share the same ducted construction, the same set-point range and the same standard warranty. A correctly sized unit runs fewer hours and lasts longer than an undersized one, so the reliability question is answered by the load calculation, not by the model number.

Ducted placement

Why ducted units publish no single noise figure

Every D-series unit installs outside the wine room and connects through insulated ductwork, so the compressor and fans are not in the space you occupy. Wine Guardian mounts internal components on rubber-in-shear isolators, and flexible duct absorbs air noise with each bend. That is why the D025 and D050 carry no decibel rating: the number would describe the mechanical room, not the cellar. Keep supply and return ducts insulated and sealed, since the U.S. Department of Energy notes that leaky or uninsulated ducts waste a large share of the energy a system produces (DOE, minimizing energy losses in ducts).

Wine Guardian TTW018 vs D025, and How Do the Classic, Sentinel and Defender Tiers Compare?

The Wine Guardian TTW018 is discontinued; its direct replacement is the TTW02B, sold in Classic, Sentinel and Defender tiers at 2,650 BTU/h nominal. The D025 is a different configuration entirely: a 4,300 BTU/h ducted unit that installs outside the cellar. Wine Guardian states on the D025 page that a cellar moving from a TTW018 to a D025 must be re-sized, because the installation method and cooling load differ.

The TTW009 (1,100 BTU/h, roughly 50 to 600 cubic feet) is replaced by the TTW01B, and the TTW018 (2,100 BTU/h) by the TTW02B, per the current Wine Guardian product pages. The current through-the-wall line has three capacity classes and three feature tiers, which gives nine purchasable units. Capacity is identical within a class; the tier changes humidity control, condensate handling, sound treatment and exterior rating. The Wine Guardian reviews and Sentinel model comparison covers owner-reported reliability on these units.

Wine Guardian through-the-wall tiers: what Classic, Sentinel and Defender add

Per Wine Guardian published specifications, 2026; starting prices from Wine Guardian Dealer, August 2026.

Typical picks

Which tier is commonly selected

Classic is the value option for a conditioned interior wall where humidity is already stable. Sentinel is the tier most residential buyers choose, because the humidity sensor and condensate evaporator solve the two problems through-the-wall owners report most. Defender is for exterior walls, garages, attics and rooms with wide temperature swings, and it is also the quietest through-the-wall unit at 47.9 dB on the TTW01B. Browse all nine units in the through-the-wall collection.

Ducted Split, Ductless Split, Wine Wall or Ceiling Mount: Which Wine Guardian Split Fits?

Choose a Wine Guardian ducted split (DS025 to DS200) when the condenser must go outdoors or far from the cellar but ductwork is possible; choose the SS018 ductless split when no ducts can be run into a small cellar; and choose a CS025 or CS050 wine wall or ceiling-mount unit when the cooled space is a glass display with no wall or mechanical room to hide equipment.

Wine Guardian split-system models compared

Per Wine Guardian published specifications, 2026; starting prices from Wine Guardian Dealer, August 2026.

All split models pair a Wine Guardian fan-coil with a matched Wine Guardian condenser and use R-134A refrigerant. The fan-coil in the SS and CS units is a low-noise air handler with no compressor inside, which is why they suit displays beside living rooms. Every split requires refrigerant line connections by a licensed HVAC professional, which also keeps the manufacturer warranty valid. The CS units ship with a coated evaporator coil, a Wireless2Base remote interface controller and an optional serving-temperature control down to 45°F; the remote interface controller guide explains what those controls do. Wine wall planning details are on the wine wall cooling systems page.

Glass displays

CS050 ceiling mount: 4,300 BTU/h with nothing on the wall

The CS050 recesses between standard joists and shows only a paintable grille, so an all-glass wine room keeps its sightlines. It matches the D025 in rated capacity (4,300 BTU/h at 80°F) while putting only the quiet fan-coil in the room; the condenser goes elsewhere. Glass rooms carry higher heat loads than framed walls of the same volume, so size a CS unit on the calculator with the glass area entered, not on volume alone.

What Is the Wine Guardian Pro Series, and When Do You Need It Instead of a Standard Model?

The Wine Guardian Pro Series is the commercial-duty version of the ducted and ducted split lines: DP25, DP50, DP88 and DP200 (plus WC water-cooled versions) mirror the D-series capacities, and SP25, SP50, SP88 and SP200 mirror the DS-series. Capacities match the standard models, 3,760 to 15,680 BTU/h; what changes is the chassis, serviceability and duty rating, and on this store the Pro Series is quote-based.

Pro units use an aluminum chassis with UL-rated composite panels and captive quarter-turn fasteners, so panels, duct collars and the grille come off on site for service without returning the unit. Wine Guardian positions the Pro line for demanding residential and commercial spaces with commercial-grade duty cycles: restaurants, wine shops, storage facilities and large private cellars that run near capacity for long periods. A residential cellar under 3,000 cubic feet rarely needs it. The spoke article Wine Guardian Pro Series vs Sentinel Series compares the two lines feature by feature; the Pro collection lists every DP and SP model for a quote.

• Pro ducted (DP25 to DP200, DP25WC to DP200WC): same placement and cellar-size ranges as the D-series, roughly 250 to 7,000 cubic feet across the range. Request a quote.
• Pro ducted split (SP25 to SP200): same placement and ranges as the DS-series. An electric heat option is available; its ratings are on the Wine Guardian specification sheet. Request a quote.
• CAB018 cabinet unit: the only Wine Guardian system built to mount in a wine cabinet, display or showcase of roughly 100 to 1,200 cubic feet, up to 2,100 BTU/h, top or bottom mounting with no ductwork and no drain line. The unit does not include a cabinet. Listed in the wine cabinet cooling units collection; request a quote.

How Do You Choose the Right Wine Guardian Model in Three Steps?

Use the Wine Guardian Model Selection Ladder: first fix the configuration the building allows, then fix the capacity class from a calculated heat load, then choose the tier or variant that fits the room's conditions. Working in that order removes most wrong picks, because a model that cannot be installed or cannot carry the load is eliminated before price or features enter the decision.

1. Measure the cellar and list the heat sources. Length, width and height in feet, the glass area, insulation R-values, lighting and the warmest temperature the condenser will see.
2. Run the cooling calculator. Use the cooling calculator to get a BTU/h load, then add margin for a hot ambient.
3. Pick the configuration the building allows. Through-the-wall, ducted, water-cooled, ducted split, ductless split, wine wall or ceiling mount, based on where the heat can go and whether ducts or refrigerant lines can be run.
4. Read across the master table in your capacity class. Compare the rated capacity, net cooling at your ambient, published noise and starting price of each candidate model.
5. Choose the tier and options. Sentinel or Defender for humidity control and drain-free operation on TTW units; water-cooled for limited ventilation; Pro for commercial duty.
6. Confirm with a professional and request a quote. A licensed HVAC professional should confirm capacity, clearances and electrical requirements. Request a price quote and we will check the shortlist against Wine Guardian published specifications.

Selection support

Send the dimensions, get the shortlist checked

If the ladder leaves two candidates, such as the D025 and the D050 or the TTW02B Sentinel and the DS025, send the cellar dimensions, glass area and mechanical-room location through the wine cellar design support page. We compare the candidates against Wine Guardian published specifications and return a recommendation for your HVAC professional to confirm.

How Do Wine Guardian Models Compare on Noise, Efficiency, Warranty and Reliability?

Across the Wine Guardian line, published noise runs from 47.9 dB at 6 feet on the TTW01B Defender to 59.3 dB on the TTW04B Classic, while ducted, water-cooled and split models carry no single rating because the compressor sits outside the cellar. Warranty is the same on every unit: 25 months parts and 13 months labor as standard, with a Platinum option that adds a 36-month parts-only extension on the compressor, evaporator coil and condenser coil.

Noise, model by model

• Quietest through-the-wall: TTW01B Defender at 47.9 dB, then TTW01B Sentinel at 49.5 dB and TTW01B Classic at 51.9 dB, all at 6 feet per Wine Guardian published specifications, 2026.
• Loudest through-the-wall: TTW04B Classic at 59.3 dB; the TTW04B Sentinel (57.9 dB) and Defender (56.9 dB) add foam and grille dampening at the same 3,760 BTU/h capacity.
• Ducted, water-cooled and split models: no single decibel rating. Mechanical noise stays in the mechanical room or outdoors; what reaches the cellar is duct or fan-coil airflow. For the quietest result beside a living space, these configurations are the typical choice.

Efficiency and reliability across the line

Wine Guardian publishes net cooling at several condenser-inlet temperatures for the ducted and split units, and those tables are the honest efficiency comparison. The D025 delivers 4,520 BTU/h at a 60°F inlet but 3,000 BTU/h at 120°F; the D050 runs from 6,920 to 4,585 BTU/h over the same range. Water-cooled WC models sidestep the hot-room penalty because the loop, not the room air, carries the heat. Reliability follows sizing and placement: a unit that runs constantly because the room is too warm or the load was underestimated wears out first, whatever its model number. Every unit ships with Wine Guardian fail-safe protection; on the through-the-wall line that means a condensate overflow switch, a loss-of-charge switch and an auto-reset high-pressure switch on all three tiers.
